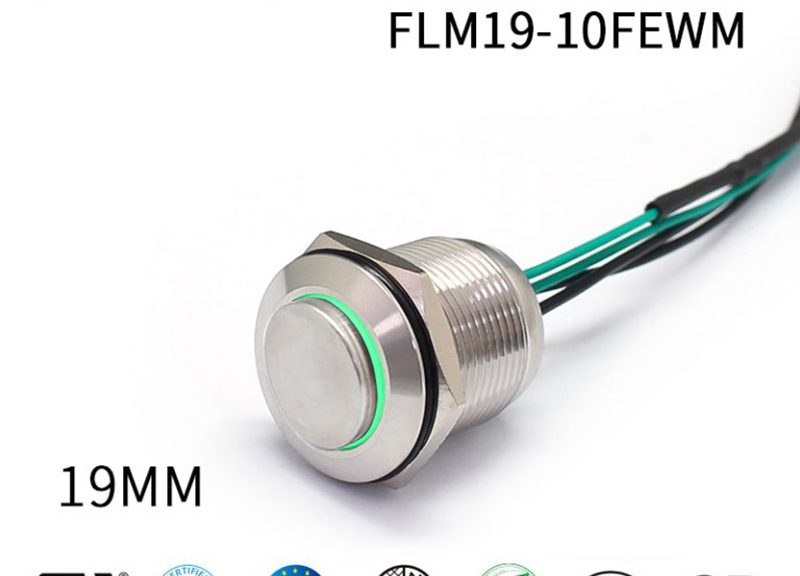

FILN Industrial Push Button Switches 19MM 5Pin Customized Excellence in Design!

19MM Industrial Push Button Product Drawings:

Industrial push button switch Drawings
More Push Button Switch

19MM Industrial Push Button Specifications:

Production Series FLM19-10HEWM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, blue, green, Orange and white Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life 500,000 times Button Pin H62 Copper alloy
Electrical Life 250,000 times Rubber Ring SIL silica gel
Protection Level IP67 IK10 Nut H59 nickel plated brass
Rated Voltage 1.5V-250VAC/DC Housing PA66+GF20% nylon
Rated Current 1.5V-250VAC/DC Light Source LED
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -30℃~+80℃ Ccontact AgCdO12

19MM Industrial Push Button Related Products：

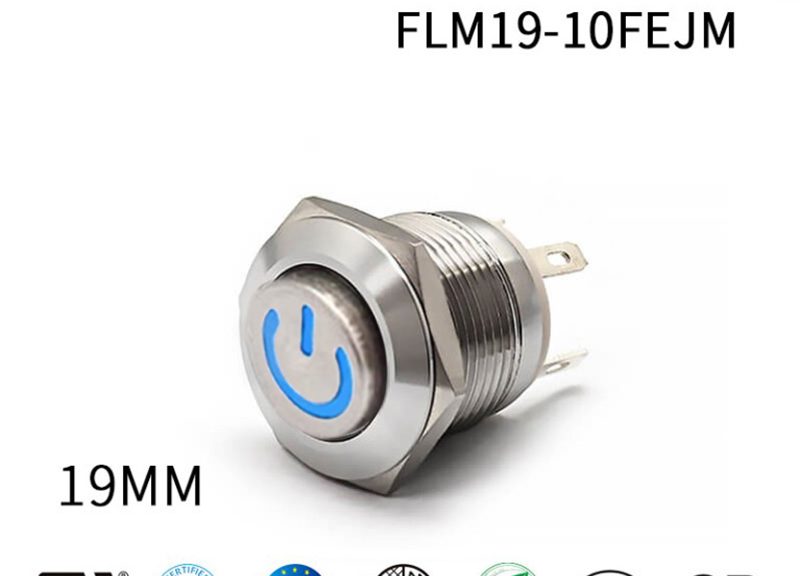

FILN: High-Head Metal LED Indicator Push Button Switch Manufacturer

19MM Led Indicator Push Button Switch Product Drawings:

Illuminated push button switch Drawings
More Push Button Switch

19MM Led Indicator Push Button Switch  Specifications:

Production Series FLM19-10HEJM Light Guide Button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button Led Ccolor Red Blue Green Yellow White Housing Seeve H59 Nickel Plated Brass/304 Stainless Steel
Mechanical Life The 500 Thousand Time Button Pin H62 Copper Alloy
Electrical Life The 100 Thousand Time Rubber Ring SIL Silica Gel
Protection Level IP67 IK09 Nut H59 Nickel Plated Brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% Nylon
Rated Current 3A（DC）3A（AC） Light Source LED
Rated Power 108W（DC）750W（AC） Resistor Metal Film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Led Indicator Push Button Switch Related Products：

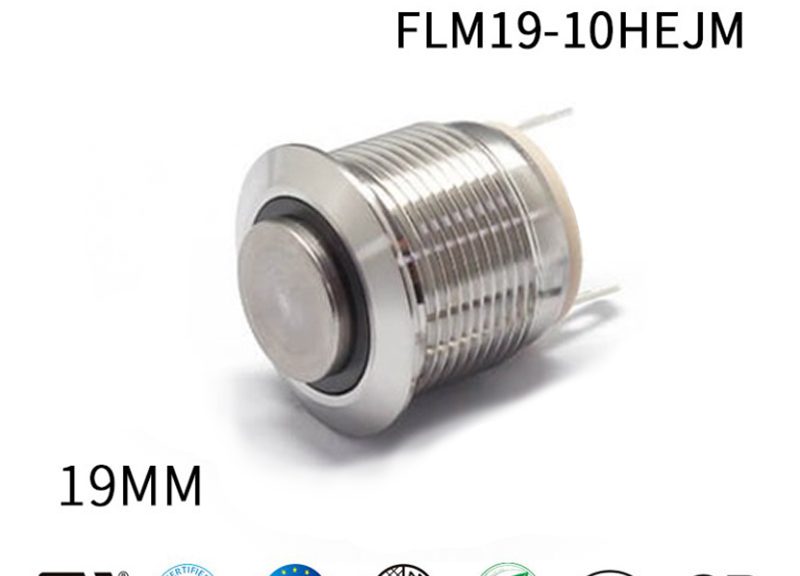

FILN High-Head Metal NC Momentary Push Button Switch | Customizable Solutions

NC Momentary Push Button Switch Product Drawings:

Normally closed momentary switch Drawings
More Push Button Switch

19MM NC Momentary Push Button Switch Specifications:

Production Series FLM19-10HEJM Light Guide Button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button Led Ccolor Housing Seeve H59 Nickel Plated Brass/304 Stainless Steel
Mechanical Life The 500 Thousand Time Button Pin H62 Copper Alloy
Electrical Life The 100 Thousand Time Rubber Ring SIL Silica Gel
Protection Level IP67 IK09 Nut H59 Nickel Plated Brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% Nylon
Rated Current 3A（DC）3A（AC） Light Source LED
Rated Power 108W（DC）750W（AC） Resistor Metal Film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM NC Momentary Push Button Switch Related Products：

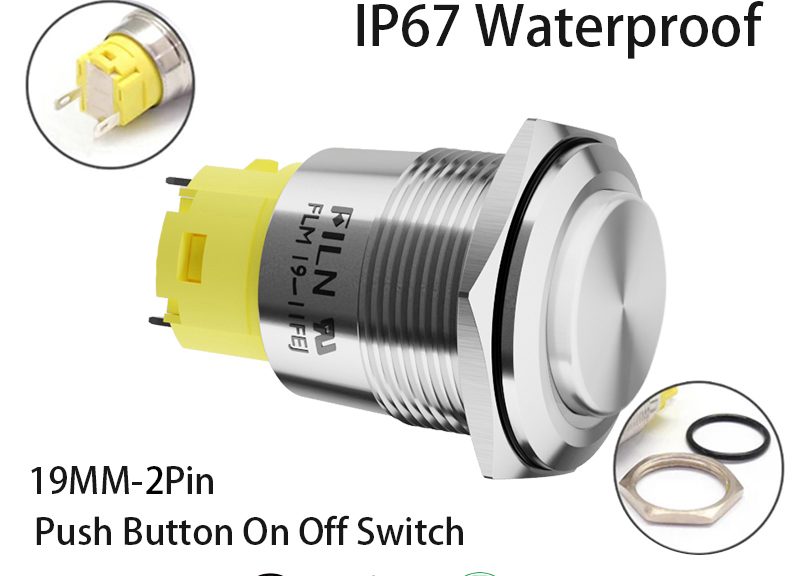

FILN 19MM High Head Switch Metal 2Pin Push Button Switch

19MM High Head Switch Product Drawings:

Elevated head switch Drawings
More Push Button Switch

19MM High Head Switch Product Specifications:

Production Series FLM19-10HEJ Light Guide Button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button Led Ccolor Housing Seeve H59 Nickel Plated Brass/304 Stainless Steel
Mechanical Life The 500 Thousand Time Button Pin H62 Copper Alloy
Electrical Life The 100 Thousand Time Rubber Ring SIL Silica Gel
Protection Level IP67 IK09 Nut H59 Nickel Plated Brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% Nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 180W（DC）1250W（AC） Resistor Metal Film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM High Head Switch Related Products：

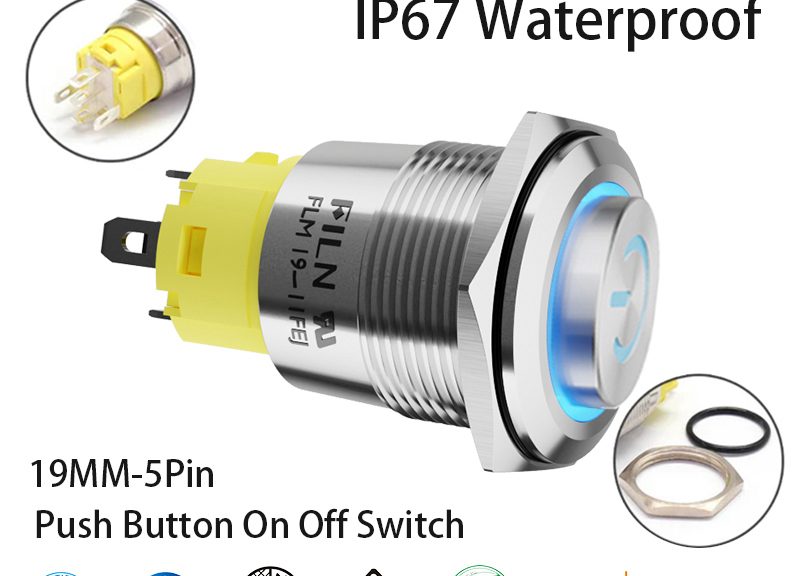

FILN: High-Head Metal Blue Push Button Switch with 4PIN Screw Terminals – Customizable and Certified

19MM Blue Push Button Switch Product Drawings:

Push button switch in blue Drawings
More Push Button Switch

19MM Blue Push Button Switch Product Specifications:

Production Series FLM19-10HEJ Light Guide Button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button Led Ccolor Red Blue Green Yellow White Housing Seeve H59 Nickel Plated Brass/304 Stainless Steel
Mechanical Life The 500 Thousand Time Button Pin H62 Copper Alloy
Electrical Life The 100 Thousand Time Rubber Ring SIL Silica Gel
Protection Level IP67 IK09 Nut H59 Nickel Plated Brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% Nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 180W（DC）1250W（AC） Resistor Metal Film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM Blue Push Button Switch Related Products：

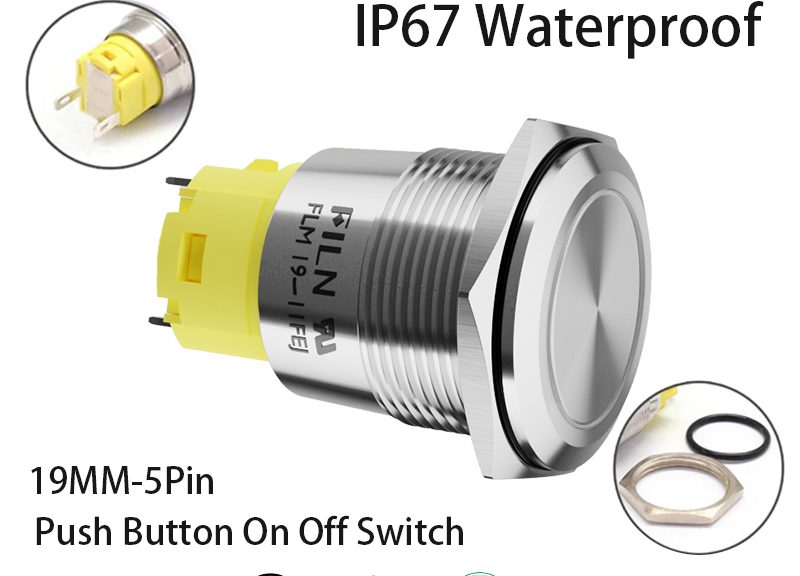

FILN – Quality Custom Black Momentary Push Button Switch Manufacturer

19MM Black Momentary Push Button Switch Product Drawings:

Momentary switch in black Drawings

19MM Black Momentary Push Button Switch Product Specifications:

Production Series FLM19-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED button switch
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM Black Momentary Push Button Switch Related Products：

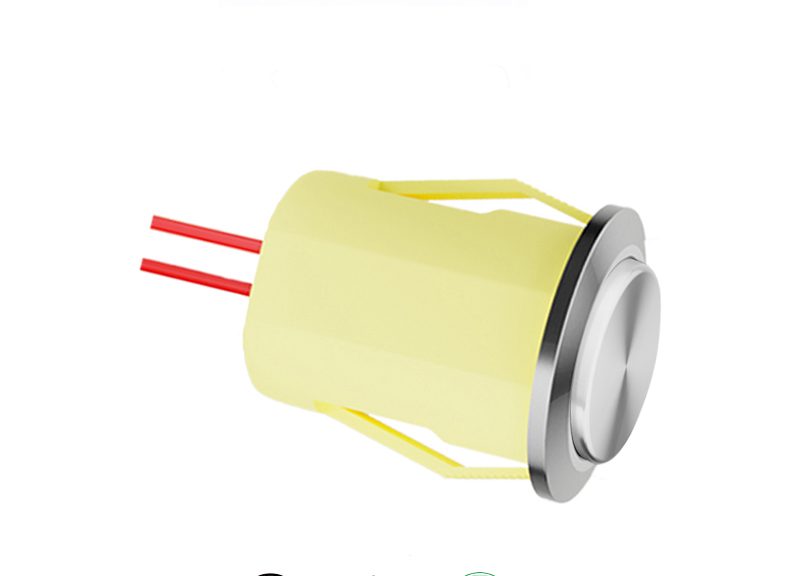

FILN Crafting Custom Buttons and Switches for Every Voltage Need

19MM Buttons and Switches Product Drawings:

Control buttons and switches Drawings

19MM Buttons and Switches Product Specifications:

Production Series FLPQ19-10HEWM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED button switch
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM Buttons and Switches Related Products：

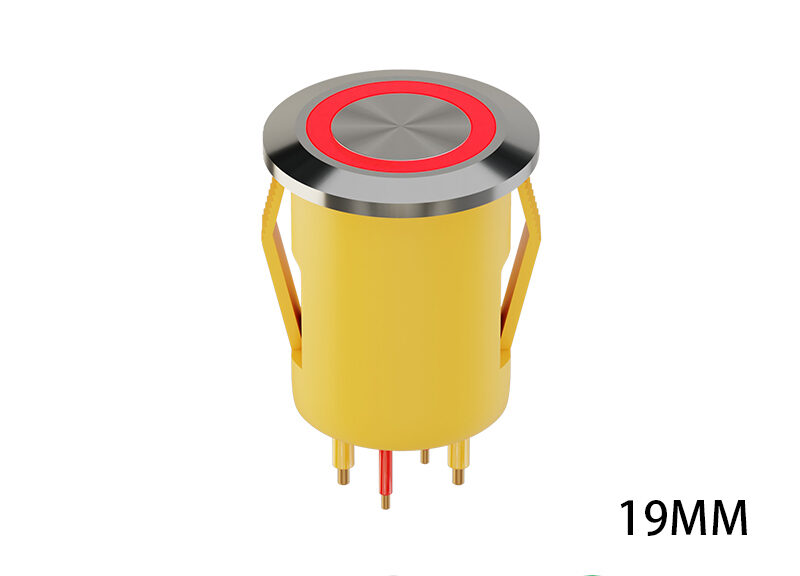

FILN Illuminated Momentary Push Button Switch 19MM Metal Switch

19MM Illuminated Momentary Push Button Switch Product Drawings:

LED indicator momentary button Drawings

19MM Illuminated Momentary Push Button Switch Product Specifications:

Production Series FLPQ19-10FEWM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Blue, Green, Yellow, White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED button switch
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM Illuminated Momentary Push Button Switch Related Products：

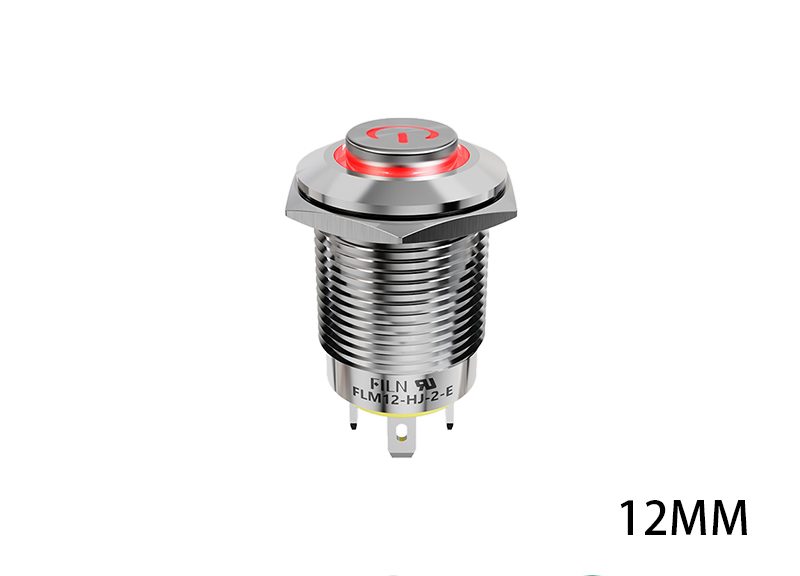

FILN 12MM 2PIN Metal IP65 120 Volt Momentary Push Button Switch

120 Volt Momentary Push Button Switch Drawing

120V momentary push button switch Drawing
More Push Button Switch

12MM 120 Volt Momentary Push Button Switch Product Specifications:

Production Series FLM12-10HJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED button switch
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

Electrical momentary switch 120V Related Products：

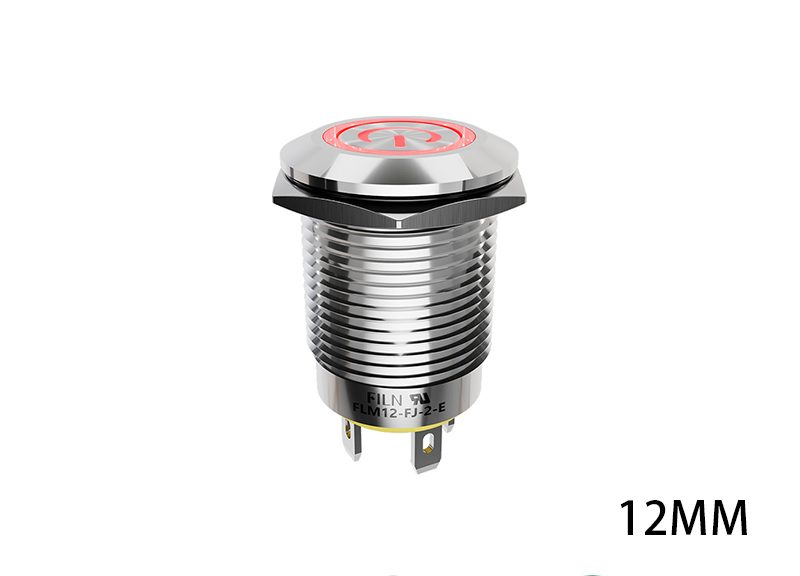

FILN 12MM Metal IP65 4 Pin Momentary Push Button Switch

4 Pin Momentary Push Button Switch Drawing

Momentary push button switch Drawing
More Push Button Switch

12MM 4 Pin Momentary Push Button Switch Product Specifications:

Production Series FLM12-10FJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED button switch
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM 4 Pin Push Button Switch Products：

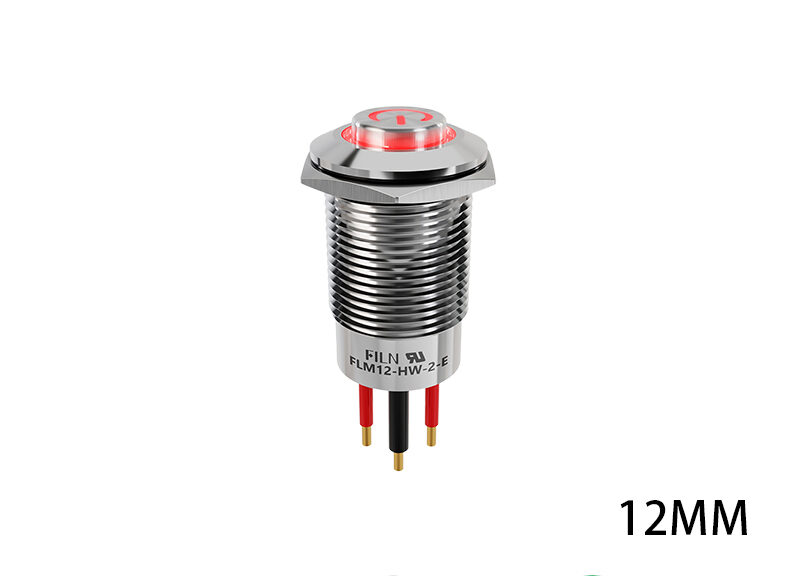

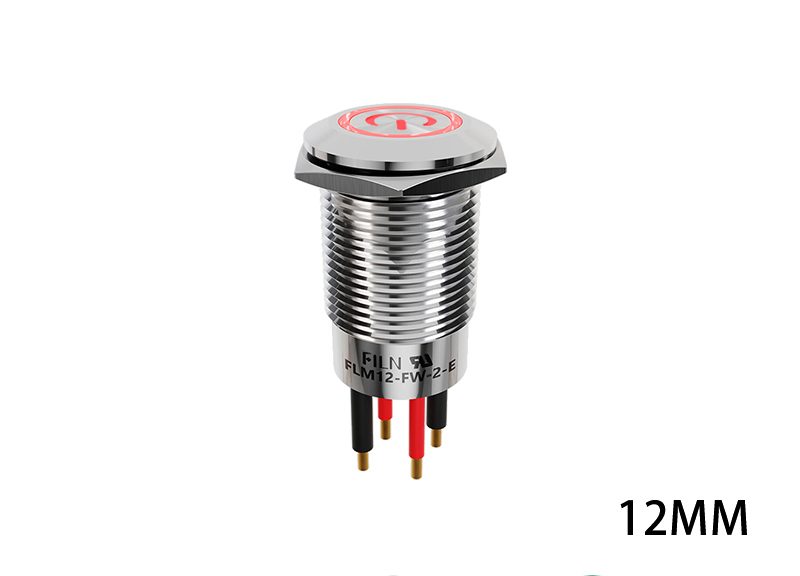

12MM 4PIN Metal IP65 On And Off Push Button Switch Ring Design With Lamp

On And Off Push Button Switch Drawing

Off push button switch Drawing

12MM On And Off Push Button Switch Product Information:

12MM small button switch is widely used in a fields of mechanical equipment, electronic products and industrial automation. The switch has the characteristics of small size, light weight, easy operation, safety and reliability, and can meet the needs of different users.

usage method:

1. Position the switch in the required operation position.

2. Choose different button colors as needed to distinguish between different functions.

3. During the operation, the switch can be switched by pressing the button.

4. When not used for a long time, the switch should be disconnected to avoid damage.

More Push Button Switch

12MM On And Off Push Button Switch Product Specifications:

Production Series FLM12-10FJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED button switch
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM On Push Button Switch Products：

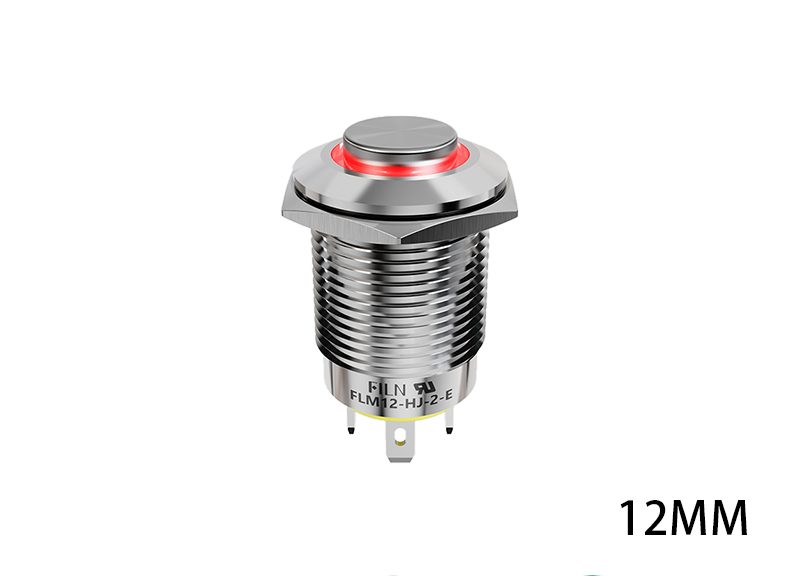

12MM 2PIN Metal IP65 Types of Push Button Switches Ring Design With Lamp

Types of Push Button Switches Drawing

Momentary push button Drawing
More Push Button Switch

12MM Types of Push Button Switches Product Specifications:

Production Series FLM12-10HJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED button switch
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Illuminated Push Button Switch Products：

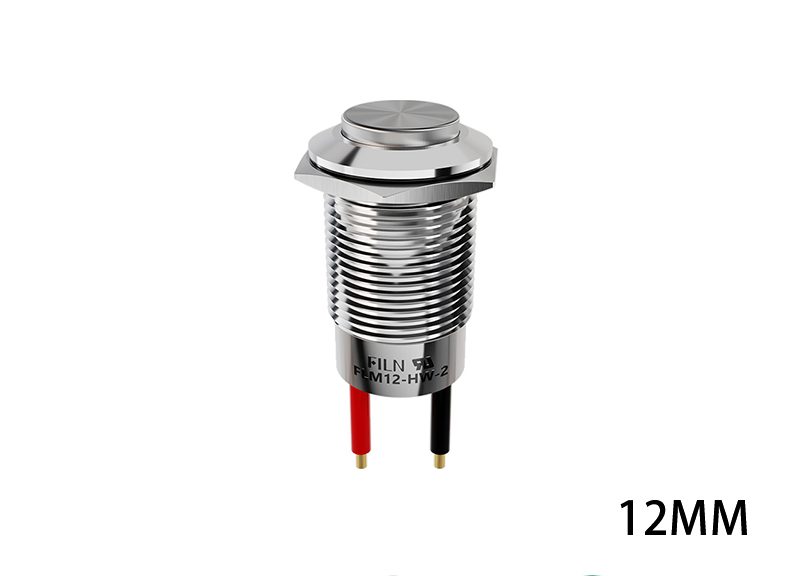

FILN Garage Door Push Button Switch 12MM High head without light Momentary Switch 4PIN

12MM Garage Door Push Button Switch Drawings

Door opener push button switch Drawings
More Push Button Switch

12MM Garage Door Push Button Switch Product Specifications:

Production Series FLM12-HW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Wall-Mounted Door Push Button Related Products：

FILN 12MM 12V on or off Push Button Switch– 4PIN Illuminated Push Buttons, 5 Dazzling LED Colors for Enhanced Control

12MM 12V on or off Push Button Switch Drawings

Push button toggle switch 12v Drawings
More Push Button Switch

12MM 12V on or off Push Button Switch Product Specifications:

Production Series FLM12-HW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Green, Yellow, Blue and White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM 12V on or off Push Button Switch Related Products：

FILN Push Button Switch on or off – 12MM Metal, 4 connecting lines, 5 LED Colors for Precision Control

Push Button Switch on or off Drawings

Push button toggle switch Drawing
More Push Button Switch

12 MM Push Button Switch on or off Product Specifications:

Production Series FLM12-FW-1 Light Guide Button
Button Shape round Actuator ABS plastic
Button LED Color Red, Green, Yellow, Blue and White Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing ABS plastic,Copper, Stainless steel, Plastic
Rated Current 1A（DC）0.5A（AC） Light Source
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM On-off momentary switch Related Products：
