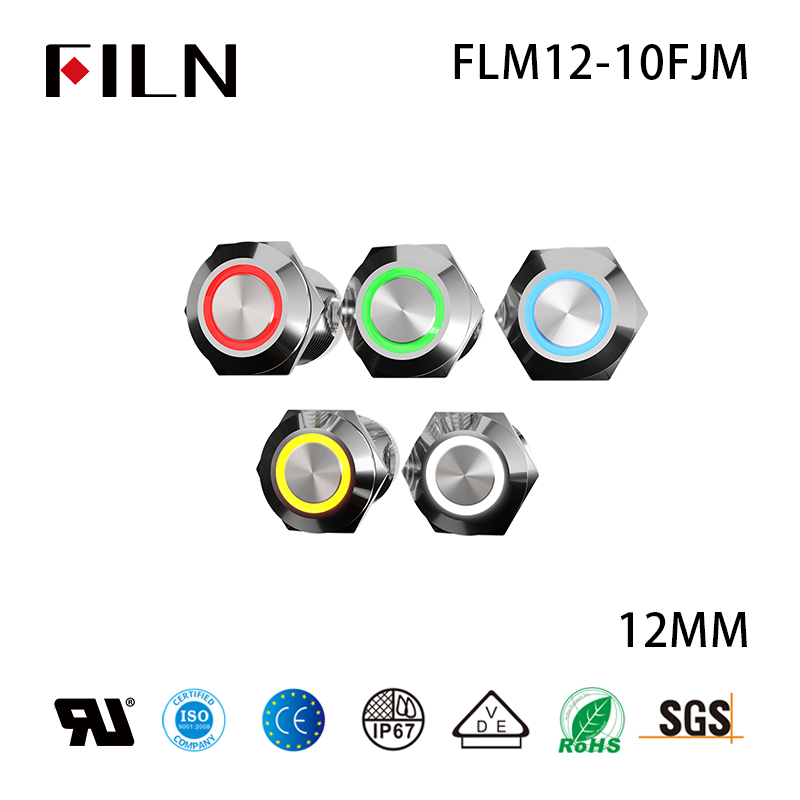

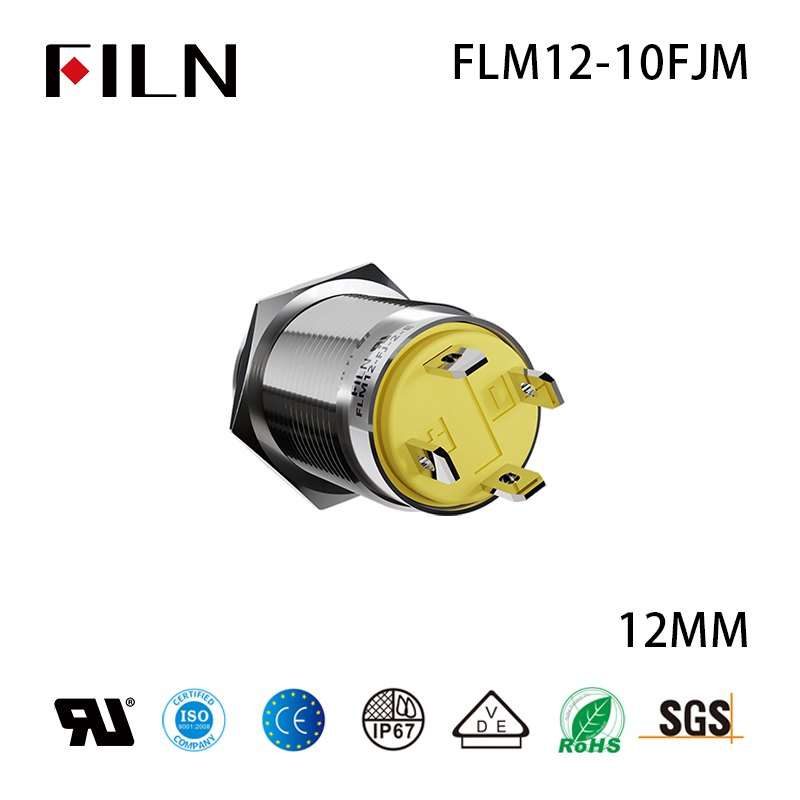

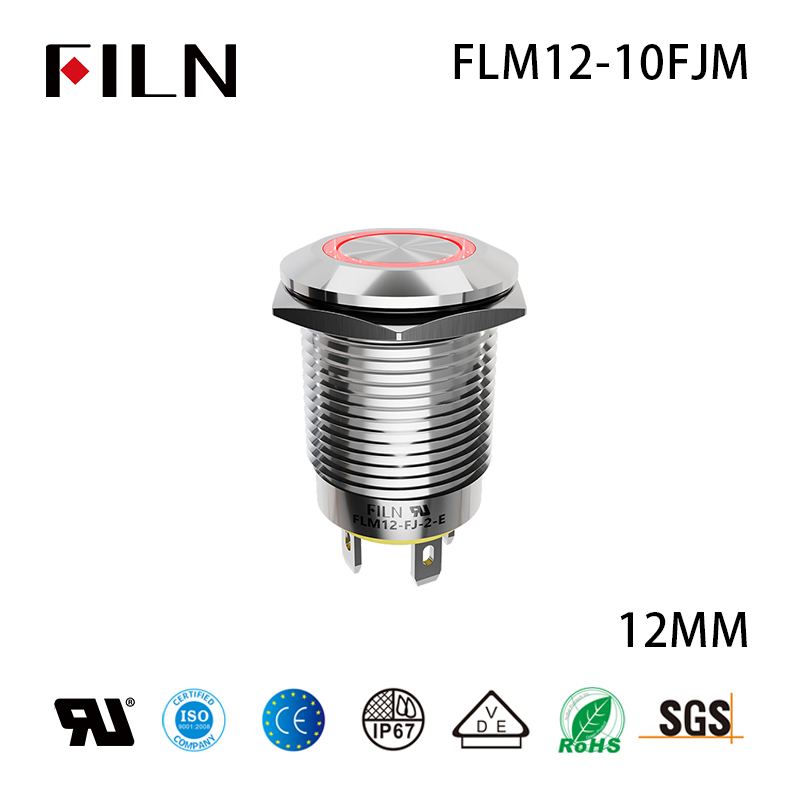

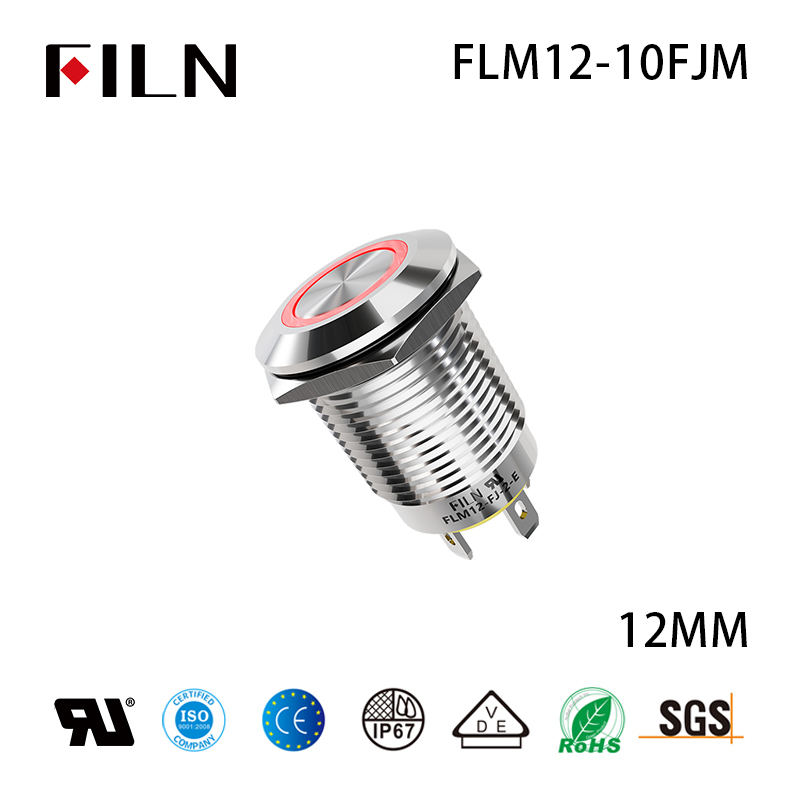

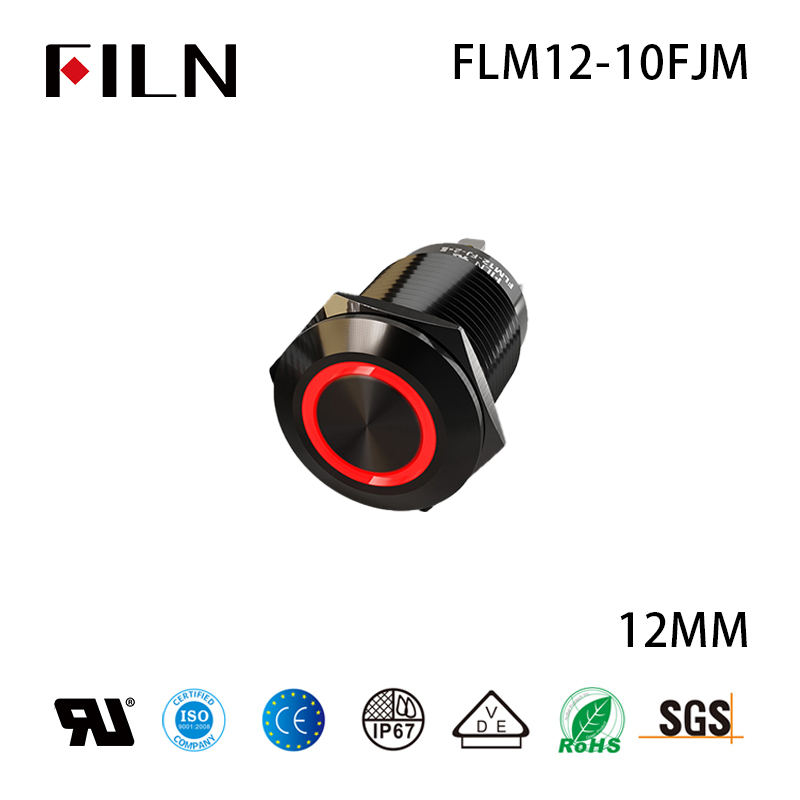

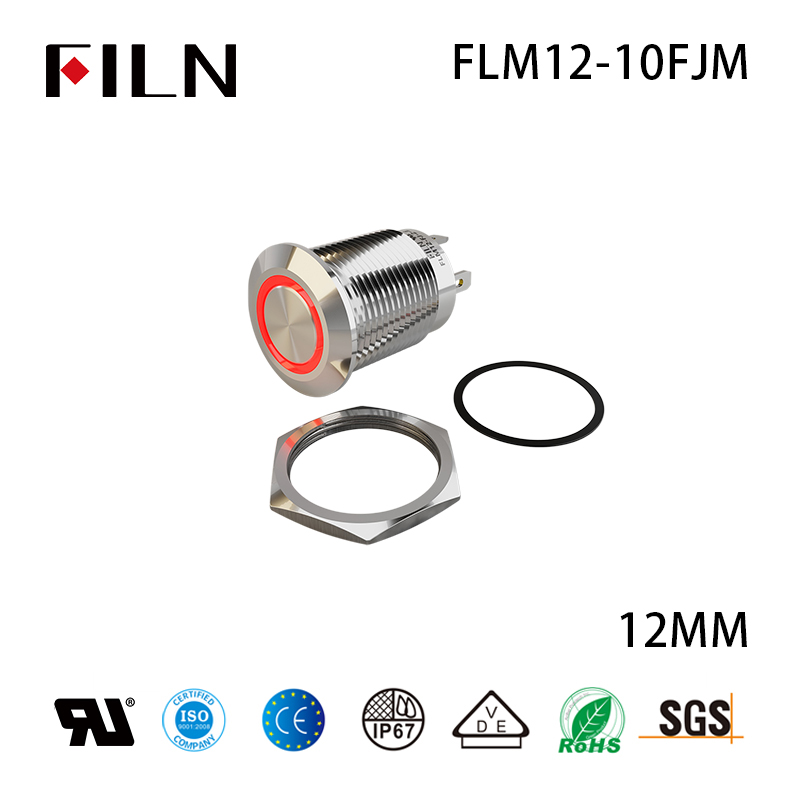

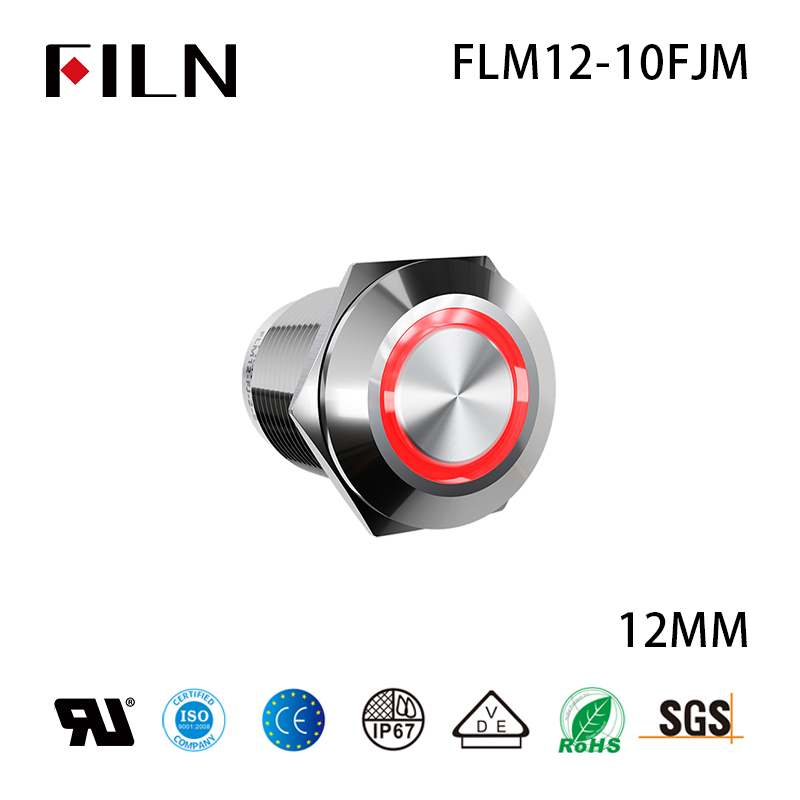

12MM 4PIN Metal IP65 On And Off Push Button Switch Ring Design With Lamp
- Waterproof class: IP65
- Name:On And Off Push Button Switch
- Model: FLM12-10FJM
- Head Type: Flat Head
- Mounting Size: 12MM /0.47 ″
- Switching Functions: Momentary
- Contact Configuration: I NO Push Button Switch
- Rated Voltage:1A
- Voltage Options: 36V DC 250V AC
- Light Color: Red, Blue, Green, Yellow, White, Bicolor, Tricolor
- Materials: ABS plastic,Metal
- Wire specification: AGW22
- Download Certification: UL, CE, RoHS, CCC,IP65
- Email:sales2@filn.com.cn
- Download PDF: 12mm On And Off Push Button Switch

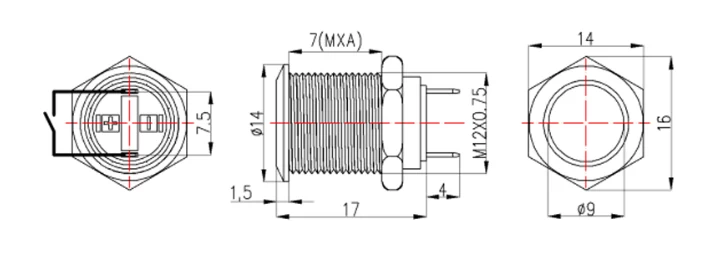

On And Off Push Button Switch Drawing
12MM On And Off Push Button Switch Product Information:
12MM small button switch is widely used in a fields of mechanical equipment, electronic products and industrial automation. The switch has the characteristics of small size, light weight, easy operation, safety and reliability, and can meet the needs of different users.
usage method:
1. Position the switch in the required operation position.
2. Choose different button colors as needed to distinguish between different functions.
3. During the operation, the switch can be switched by pressing the button.
4. When not used for a long time, the switch should be disconnected to avoid damage.
12MM On And Off Push Button Switch Product Specifications:
| Production Series | FLM12-10FJM | Light Guide Button | |
| Button Shape | round | Actuator | 304 Stainless steel |
| Button LED Color | Housing Sleeve | H59 nickel plated brass | |
| Mechanical Life | The 500 thousand time | Button Pin | H62 Copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP65 IK08 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V（DC） 250（AC） | Housing | PA66+GF20% nylon |
| Rated Current | 1A（DC）0.5A（AC） | Light Source | LED button switch |
| Rated Power | 36W（DC）125W（AC） | Resistor | |
| Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
