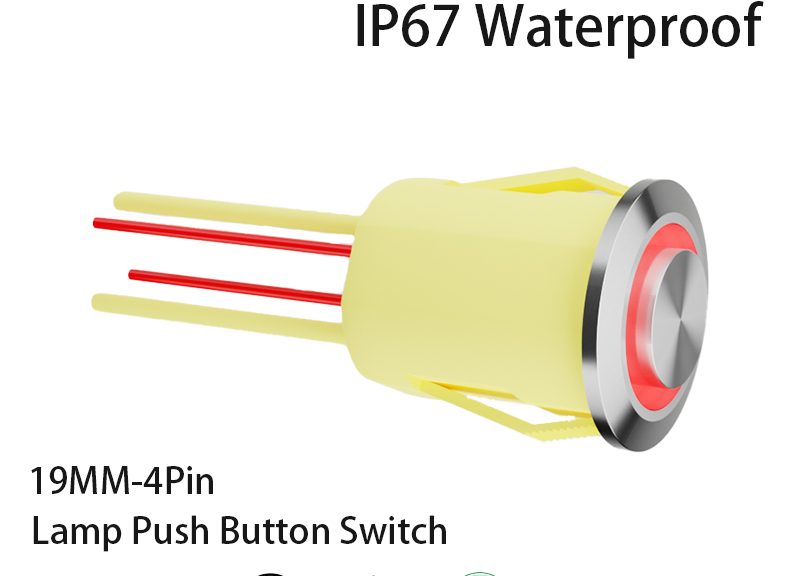

FILN 19MM Lamp Push Button Switch Waterproof Lamp Switch

19MM Lamp Push Button Switch Product Drawings:

19MM Lamp Push Button Switch Product drawings

19MM Lamp Push Btton Switch Introduction

A Custom Solution Born at KES 2018

The innovative lamp push button switch by FILN was custom-designed to meet the specific demands of a South Korean client in the medical beauty equipment industry, presented at the KES exhibition in 2018. Previously, their switches, typically threaded, required significant manual effort to install, a costly process given the high labor costs in South Korea. FILN’s design revolutionized this by introducing a switch that effortlessly snaps into place, optimizing efficiency and reducing costs.

Advantages of the Push Button Lamp Switch

1.Easy installation:The lamp with push button switch boasts a clip-in feature allowing for quick, tool-free installation on control panels, drastically enhancing efficiency and cutting down on labor expenses.

Push Button Switch Lamp

2.Versatile Design Options

FILN’s push button switch lamp comes in a variety of colors, catering to diverse aesthetic preferences, including but not limited to red, green, yellow, blue, and white.

3.IP67 Waterproof Rating

The 19mm lamp push button switch is designed with an IP67 waterproof rating, ensuring its reliability for outdoor use or in any environment exposed to water.

4.Customizable Features

Customization is key with FILN’s lamp switch, offering features such as locking mechanisms or reset functions tailored to your requirements.

More Push Button Switch

5.Certified Quality Assurance

With certifications like UL, CE, and TUV, FILN lamp switches guarantee quality, allowing users to operate with confidence.

FILN’s dedication to innovation, customer satisfaction, and quality assurance is evident in their push button lamp switch—crafted for performance, built for reliability.

19MM Lamp Push Button Switch Product Specifications:

Production Series FLPQ19-10HEWM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Blue, Green, Yellow, White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED button switch
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Tailored Push Button Lamp Switch Solutions

FILN: A 20-Year Expertise in Switch Manufacturing

FILN SWITCH FACTORY is a professional manufacturing plant with two decades of experience in producing switches. They offer customized solutions, including various types of push button lamp switches to meet diverse needs.

  • 1.  Customization For Cost-Effectiveness

If cost reduction is your goal, FILN is committed to designing a push button switch with lamp that aligns with your specific requirements and application scenarios.

  • 2.  No Minimum Order Quantity

Should you need a smaller quantity of the LAMP PUSH BUTTON SWITCH, worry not—FILN imposes no minimum order quantity, ensuring flexibility and client convenience.

3.  Versatile Customization Options

LAMP SWITCH customization options extend to various voltages and colors, providing a wide array of choices to fit any design scheme or functional requirement.

  • 4.  Compatibility And Convenience

The tail of the lamp with push button switch is designed to connect with any terminal, including cold-pressed terminals, 2.54, or 6.3 types, facilitating ease of installation and use.

19MM Lamp Push Button Switch Customisation

FILN stands out with its dedication to offering personalized services and adaptable products, ensuring smooth communication and Efficient solutions.

How To Wire A 19MM Lamp Push Button Switch ?

first of all we need to know that the 19MM Lamp Push Button Switch has 4 pins. In which the red line (C) closest to the power supply and the black line (NO) far from the power supply are the switch pins, the other two red lines and black lines are light pins, the light pins are regardless of positive pole or negative pole.—There are two types of wiring, see the picture below.

Lamp Push Button Switch Wiring Diagram

What’s the first way for the button connection ？

1.The positive pole of the power supply is connected to the switch C pin red wire and the LED lamp pin red wire (+) , and the other NO pin black wire is connected to the positive pole of the bulb device.

2.Connect the negative pole of the power supply to the negative pole of the bulb deviceand the LED lamp pin black wire(-).

19MM Lamp Push Button Switch function:

The  Lamp Push Button Switch is locked and the bulb device starts.

The  Lamp Push Button Switch is reset, the bulb device is turned off and the light is always on.

Push Button Lamp Switch Wiring Diagram

What’s the second way for the button connection ？

1.The positive pole of the power supply is connected to the C pin red wire of the switch,and the other NO pin black wire is connected to the LED light pin red wire (+) and the positive pole of the bulb device.

  1. Connect the negative pole ofthe powersupply to the negative pole of the bulb device and the LED lamp pin black wire (-).

19MM Lamp Push Button Switch function:

The  Lamp Push Button Switch is locked and the light is on, and the bulb device starts.

The  Lamp Push Button Switch reset light is off, and the bulb device is turned off.

Push Button Lamp Switch Application Environment

19MM Waterproof Lamp Push Button Switch is a button switch with waterproof function, its application environment includes industrial equipment, electronic equipment, etc. This switch has excellent waterproof performance, and can effectively prevent moisture into the switch inside, so as to ensure the stability and reliability of the switch in various environments.

In industrial equipment:19MM Waterproof Lamp Push Button Switch can be used to control the operation and stop of the machine.

In an electronic device: it can be used to control the switch of the circuit to enabling power control of the device. In the circuit board, it can be used to connect and disconnect the circuits, thus enabling the control of the equipment.

In LED lights:it can be used to control the brightness and brightness changes of the lamp.

In Coffee machine: it can be used to control the opening and closing of the coffee machine.

In a Electric stove: it can be used to control the power and time of the Electric stove.

2

19MM Lamp Push Button Switch Related Products：

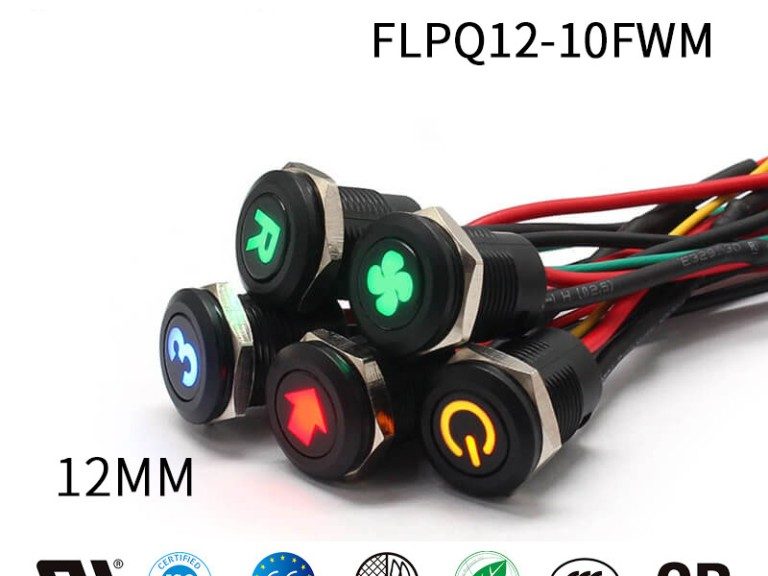

FILN 12MM Black 12 Volt Push Button Switch with Customizable Surface

12MM 12 Volt Push Button Switch Drawing

12 volt push button switch Drawing 1
More Push Button Switch

12MM 12 Volt Push Button Switch Product Specifications:

Production Series FLPQ12-10FWM Light Guide Button
Button Shape round Actuator ABS plastic
Button LED Color Black、white Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing ABS plastic
Rated Current 1A（DC）0.5A（AC） Light Source
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM 12 Volt Push Button Switch Related Products：

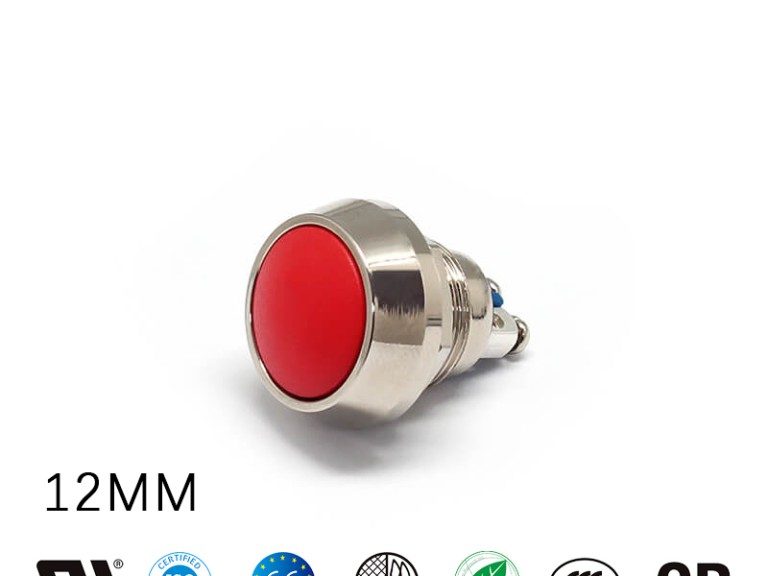

FILN Red Push Button Switch 2 Pin Screw Terminals Momentary

12MM Red Push Button Drawing

Red Push Button Drawing

12MM Red Push Button Product Information:

More Push Button Switch

Red Push Button Product Specifications:

Production Series FLYM12-BS-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red orange green blue Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） Housing PA66+GF20% nylon
Rated Current 2A（DC） Light Source LED
Rated Power 36W（DC） Resistor Metal film
Operating Temperature -20℃~+55℃ Contact AgCdO12

Red Push Button Related Products：

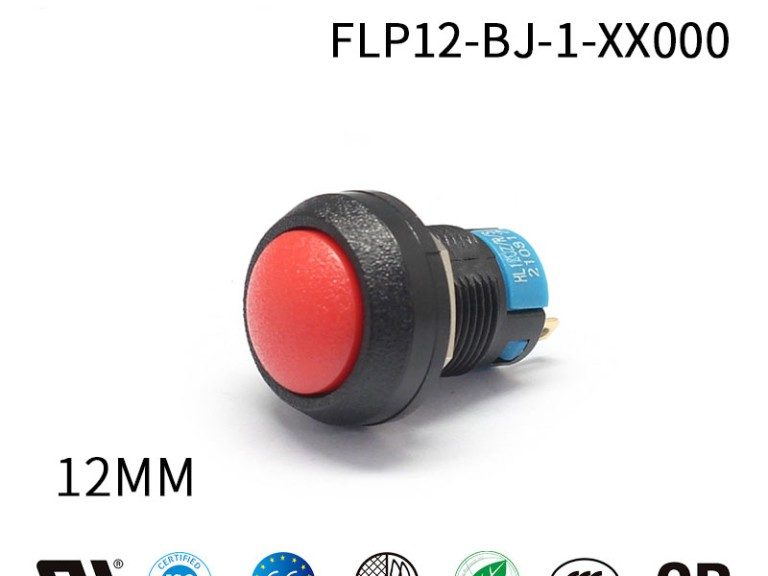

12MM 2PIN Momentary Non-illuminated Push Button Red Power Switch

12MM Push Button Red Drawing

Push Button Red Drawing
More Push Button Switch

12MM Push Button Red Product Specifications:

Production Series FLP12-BJ-1 Light Guide Button PC plastic
Button Shape round Actuator ABS plastic
Button LED Color Red, Blue, Green, Yellow, White Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 Nut H59 nickel plated brass
Rated Voltage 36V （DC）
250V （AC）		 Housing ABS plastic
Rated Current 3A DC / 3A AC Light Source
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Push Button Red Related Products：

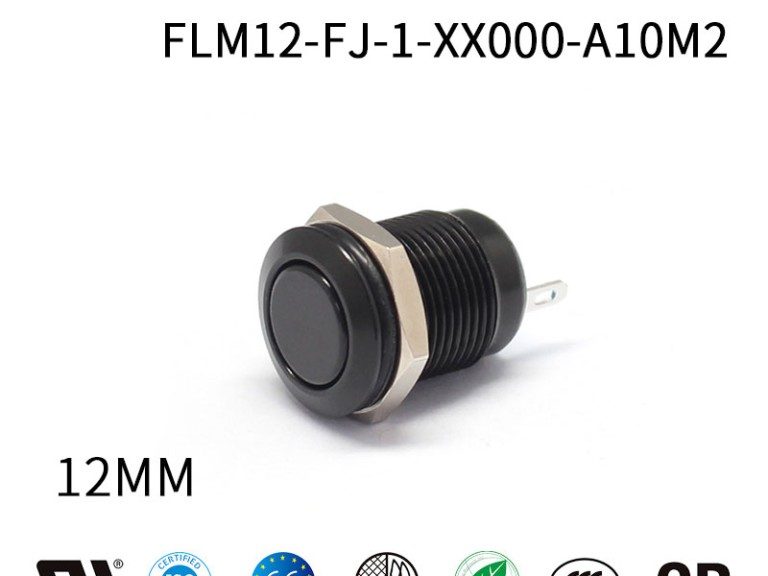

FILN 12MM Waterproof Balance Car Modified Car 2PIN Latching Push Button

12MM Latching Push Button Drawing

Latching Push Button Drawing
More Push Button Switch

12MM Latching Push Button Product Specifications:

Production Series FLM12-FJ-1 Light Guide Button
Button Shape round Actuator Aluminum alloy
Button LED Color Red, Blue, Green, Yellow, White Housing Sleeve Aluminum alloy
Mechanical Life The 500 thousand time Button Pin
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 Nut H59 nickel plated brass
Rated Voltage 250V （AC） Housing ABS plastic
Rated Current 3A AC Light Source
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Latching Push Button Related Products：

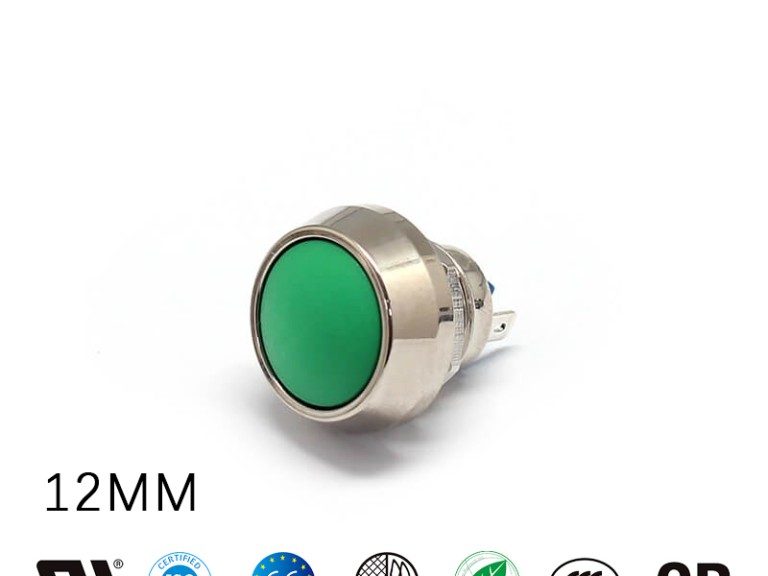

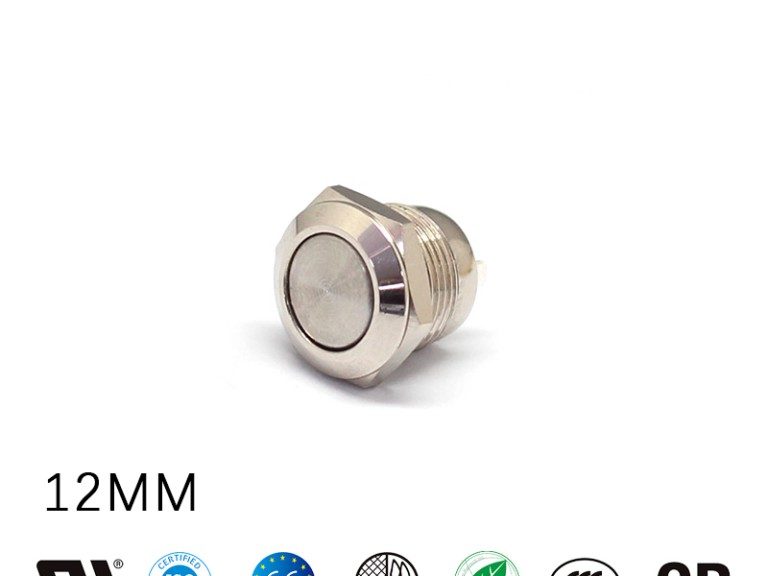

FILN 12MM 2PIN Momentary Metal Round Push Button Switch

12MM Small Round Push Button Switch Drawing

Round Push Button Switch Drawings
More Push Button Switch

12MM Round Push Button Switch Product Specifications:

Production Series FLYM12-BJ-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） Housing PA66+GF20% nylon
Rated Current 2A（DC） Light Source
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -20℃~+55℃ Contact AgCdO12

12MM Round Push Button Switch Related Products：

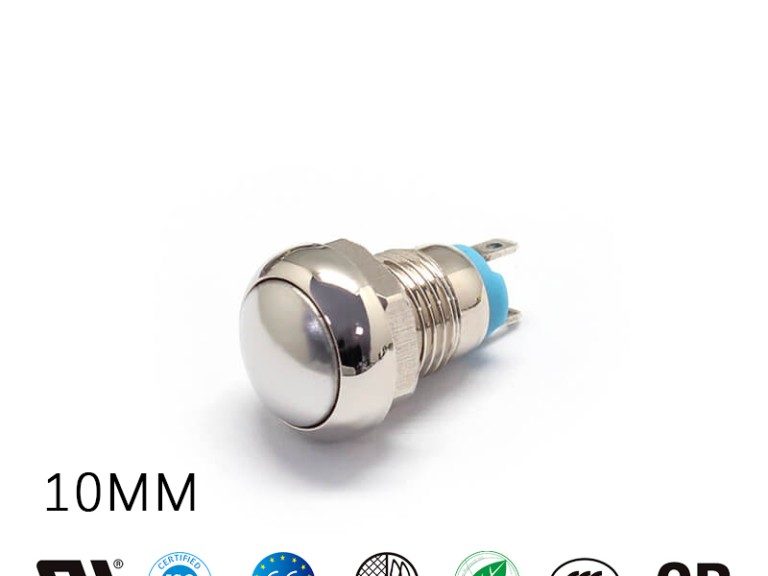

FILN Small Push Switches: 10mm Metal Ball Head, 2-Pin, Compact Design

10MM Small Push Switch Drawing

Small Push Switch Drawing
More Push Button Switch

10MM Small Push Switch Product Specifications:

Production Series FLM10-10EJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, blue, green, yellow and white Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） Housing PA66+GF20% nylon
Rated Current 1A Light Source LED
Rated Power 36W（DC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

10MM Small Push Switch Related Products：

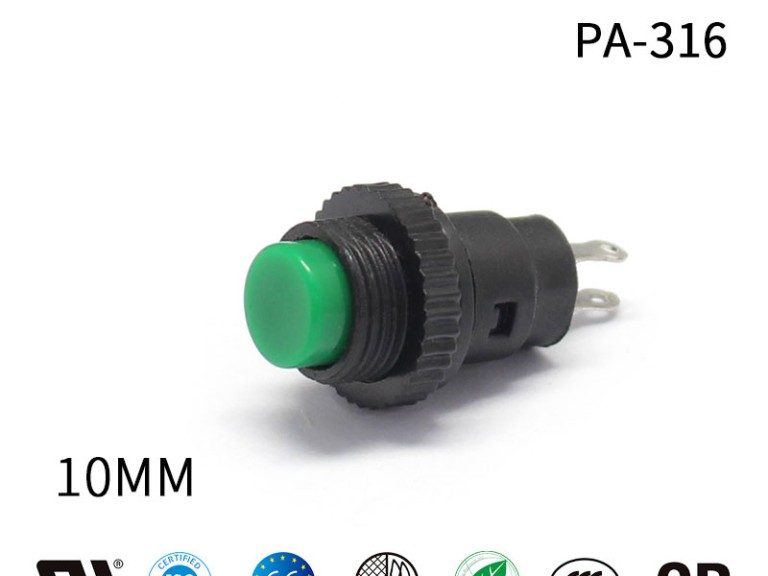

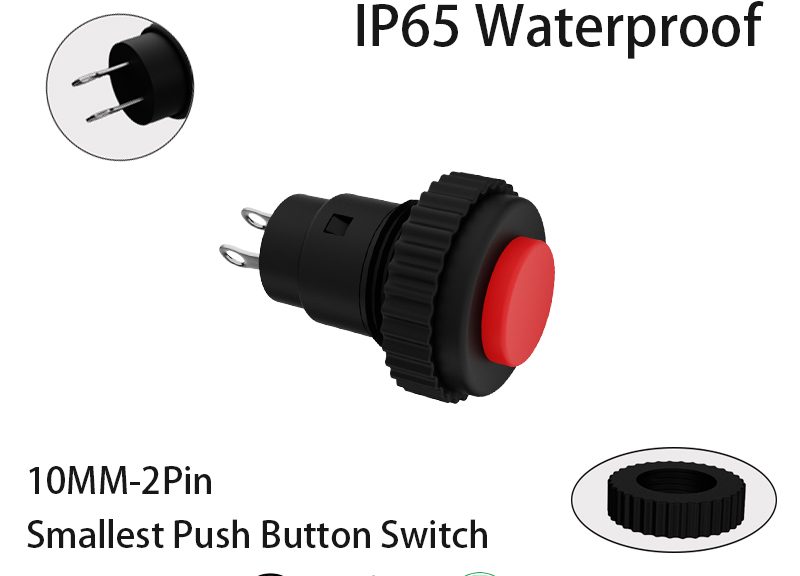

FILN’s 10MM 2-Pin Plastic Push Button Switch: Smallest, High-Quality Design

10MM Smallest Push Button Switch Drawing

smallest push button switch Drawings
More Push Button Switch
smallest push button switch 1

10MM Miniature Push Button Switch Product Specifications:

Production Series PA-314
The keys PC plastic
The shell PC plastic
pin H62
nut PC plastic
housing PA66+GF20% nylon
Button color Red, yellow, blue,

green, white, black
Rated voltage 250V AC
rated current 3A AC

How To Wire A 10MM Smallest Push Button Switch  ?

The normally open wiring way, then press the push button, the load is powered on, when release the push button, the load is powered off.

The wiring method is as follows, C pin is connected to the power’s positive pole, NO pin is connected to the device’s positive pole, the device’s negative pole is connected to the power’s negative pole.

Miniature push button connection diagram

10MM Smallest Push Button Switch Related Products：

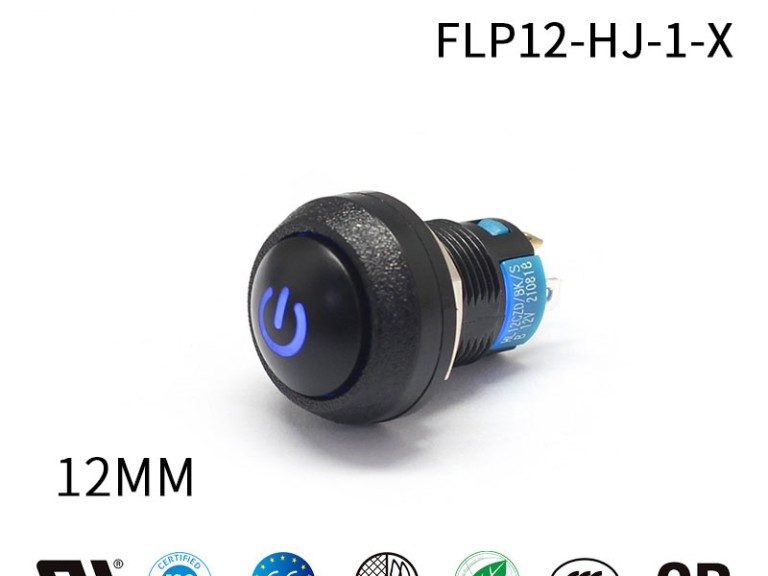

FILN 12MM Push Button Switch Lamp: 4-Pin, Ball Head, Power Symbol

12MM Push Button Switch Lamp Drawing

push button switch lamp Drawing
More Push Button Switch

12MM Push Button Switch Lamp Product Specifications:

Production Series FLP12-BJ-1 Light guide Button
Button Shape round Actuator ABS plastic
Button Color Red, Blue, Green, Yellow, White Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing ABS plastic
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Push Button Switch Lamp Related Products：

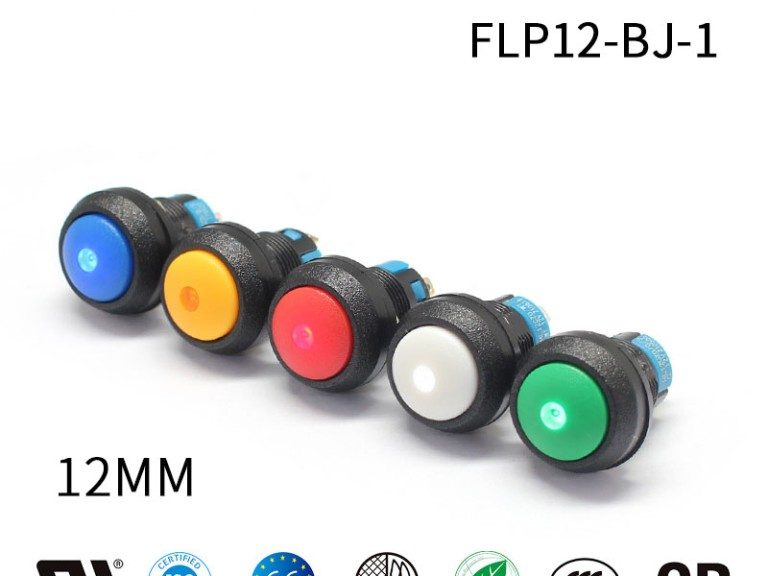

FILN 12MM 4-Pin Ball Head Push Button Lamp Light Switch with Indicator

12MM Push Button Lamp Light Switch Drawing

12MM Push Button Lamp Light Switch drawings
More Push Button Switch

12MM Push Button Lamp Light Switch Product Specifications:

Production Series FLP12-BJ Light guide Button
Button Shape round Actuator ABS plastic
Button Color Red, Blue, Green, Yellow, White Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 Nut H59 nickel plated brass
Rated Voltage 36V （DC）250V （AC） Housing ABS plastic
Rated Current 3A DC / 3A AC Light Source LED
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Push Button Lamp Light Switch Related Products：

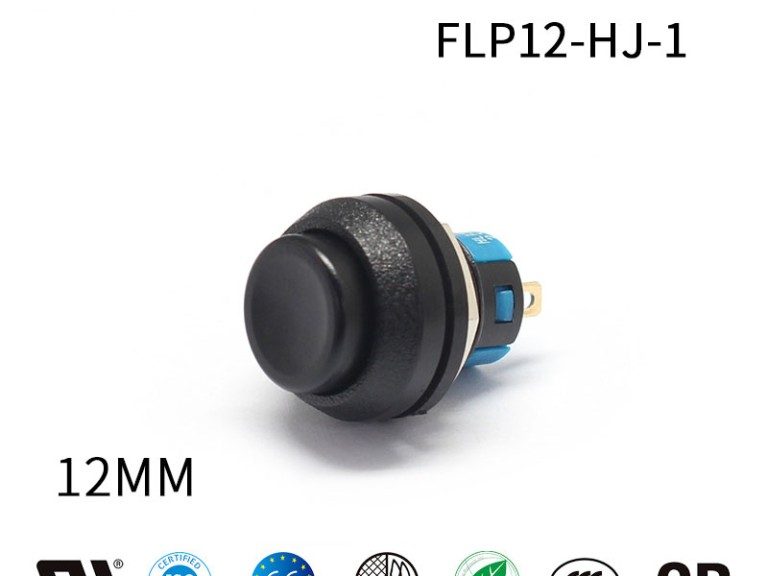

FILN 12MM Momentary Waterproof 2Pin Normally Open Push Button

12MM Normally Open Push Button Drawing

Round Switches drawings
More Push Button Switch

12MM Normally Open Push Button Product Specifications:

Production Series FLP12-HJ-1 Light Guide Button
Button Shape round Actuator ABS plastic
Button Color Black Housing Sleeve ABS plastic
Mechanical Life The 500 thousand time Button Pin
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing ABS plastic
Rated Current 1A（DC）0.5A（AC） Light Source
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Normally Open Push Button Related Products：

FILN 2 PIN Metal Momentary Button Switch Short Version Push Button Switch 12MM Flush Button

Push Button Switch 12MM Drawing

Push Button Switch 12MM Drawing
More Push Button Switch

Push Button Switch 12MM Product Specifications:

Production Series FLM12-10 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red orange green blue Housing Sleeve H59 nickel plated brass
Mechanical Life The 300 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） Housing PA66+GF20% nylon
Rated Current 2A（DC） Light Source LED
Rated Power 36W（DC） Resistor Metal film
Operating Temperature -20℃~+55℃ Contact AgCdO12

Push Button Switch 12MM Related Products：

12MM 2PIN Metal IP65 Momentary Small Push Button Switch

12MM Small Push Button Switch Drawing

12mm small push button switch Drawing

12MM Small Push Button Switch Product Information:

12MM small button switch is widely used in a fields of mechanical equipment,electronic products and industrial automation. The switch has the characteristics of small size, light weight, easy operation, safety and reliability, and can meet the needs of different users.usage method:

1. Position the switch in the required operation position.

2. Choose different button colors as needed to distinguish between different functions.

3. During the operation, the switch can be switched by pressing the button.

4. When not used for a long time, the switch should be disconnected to avoid damage.

More Push Button Switch



12MM Momnetary Push Button Switch Information 1

12MM Small Push Button Switch Product Specifications:

Production Series FLM12-10FJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED button switch
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Small Push Button Switch: Introduction and Features

Small Momentary Push Button Switch 2

12MM Small Push Button Switch: Price and Quality

One of the main selling points of the 12MM Small Push Button Switch is its competitive pricing. When compared to plastic buttons, this metallic switch offers a more affordable price. Thanks to FILN’s implementation of a fully automated production process, the manufacturing costs have been significantly reduced. It’s noteworthy to mention that FILN’s 12MM Small Push Button Switch occupies a staggering 80% share in the Chinese balance scooter market.

Head Design: Flat and Raised

The 12mm push button switch has a self-resetting function and is often referred to as the 12mm momentary push button switch. This switch offers two head design choices: flat and raised. The raised head design of the SMALL PUSH BUTTON SWITCH provides a more user-friendly pressing experience.

Application Scenarios: Toys and Balance Scooters

Small push button switches are commonly used in toys and balance scooters. This particular Small Push Button Switch also boasts an IP65 waterproof rating, hence it is also known as the IP65 Push Button Switch.

Certifications and Market: UL Certification for the US

The 12MM Push Button Switch has received UL certification, approved for sale in the U. S. market and not only meets user demands in terms of design and functionality but also holds a competitive edge in pricing.

12MM SMALL PUSH BUTTON SWITCH: Customization Services

Tailored Solutions with FILN:FILN Company stands out as a specialist in customizing and developing push button switches. Our approach is rooted in understanding the unique requirements of each customer. We recognize that different clients have different needs, and we are dedicated to fulfilling those with precision and care.

  • Versatile Connections: Catering to Specific Needs

One of the main aspects of customization is the type of connection. FILN takes pride in offering a wide variety of terminal connections based on specific client requirements. Whether it’s a MOLEX 2.54 terminal or any other type, our team ensures that the switch integrates seamlessly with the desired system.This is a key reason why our push-button switch products are so popular.

  • Beyond Standard: Why Choose FILN’s Custom Services?

FILN’s customization service extends beyond just altering connection types. We dive deep into the minutiae of the product specifications to ensure the switch aligns perfectly with the intended application. From varying sizes, shapes, to unique functionalities – our expertise lies in adapting the switch to match the client’s vision and try to meet the consumer needs of customers.

  • A Commitment to Quality and Innovation

Every custom product designed at FILN undergoes rigorous testing to ensure its durability, efficiency, and safety. Our dedication to quality remains uncompromised, irrespective of the extent of customization. Furthermore, we’re continually investing in R&D to stay abreast of the latest trends and technologies. This ensures that our solutions are not just tailored but also innovative.

12MM Push Button Switch connection 2

In conclusion, FILN’s 12MM SMALL PUSH BUTTON SWITCH customization service is all about making the product work for the client, rather than the client adapting to the product. With a deep commitment to quality, innovation, and client satisfaction, FILN is the go-to manufacturer for tailored push button switch solutions.

12MM Small Push Button Switch Application Environment

12mm Small Push Button Switch is a switchgear widely used in a wide variety of industrial and commercial environments. Because of its high waterproof and dustproof performance, it is often used in a variety of harsh environments.

In the field of industrial automation, this switch is widely used to control a variety of mechanical equipment, such as conveyor belts, pumps, valves, etc.

In the business environment, it is also widely used in various commercial devices, such as vending machines, coffee machines, printers, etc. This switch is characterized by a faster response speed and a relatively high reliability. Because of its metal material, it also has a better durability and stability. Moreover, this switch also has lower contact resistance and lower wear rate, so it can maintain good performance for a long time.

In conclusion, 12mm Small Push Button Switch is a switchgear widely used in a variety of industrial and commercial environments with high water and dust proof performance as well as fast response speed and high reliability. When selecting and using this switch, consider its application environment and specification parameters.

Small Push Button Switch Application Environment 1

How to Wire A 12MM Small Push Button Switch ?

1NO2 pin momentary button switch: This push button switch has only two switch pins, one of which is C and one normally open contact (NO).

Wiring:Connect the positive pole of the battery to the switch pin C, connect the NO to the positive pole of the device, and connect the negative pole of the battery to the negative pole of the device. as the picture shows.

  • In normal state, the normally open contact (NO) of this push button switch is disconnected from other circuit components, and the device does not work.
  • When the button is pressed, the normally open contact is closed, a path is formed, and the device starts to work.
  • When the button is released, the normally open contact returns to the disconnected state, disconnecting the connection with other circuit components, and the device stops working.
Small Push Button Switch Wiring Diagram

12MM Small Push Button Switch Related Products：
