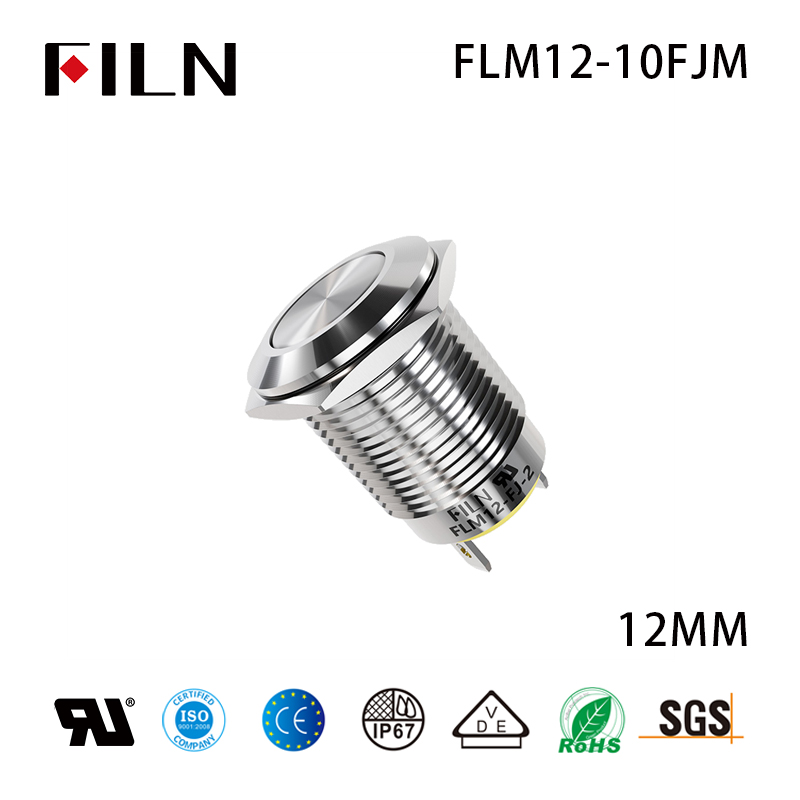

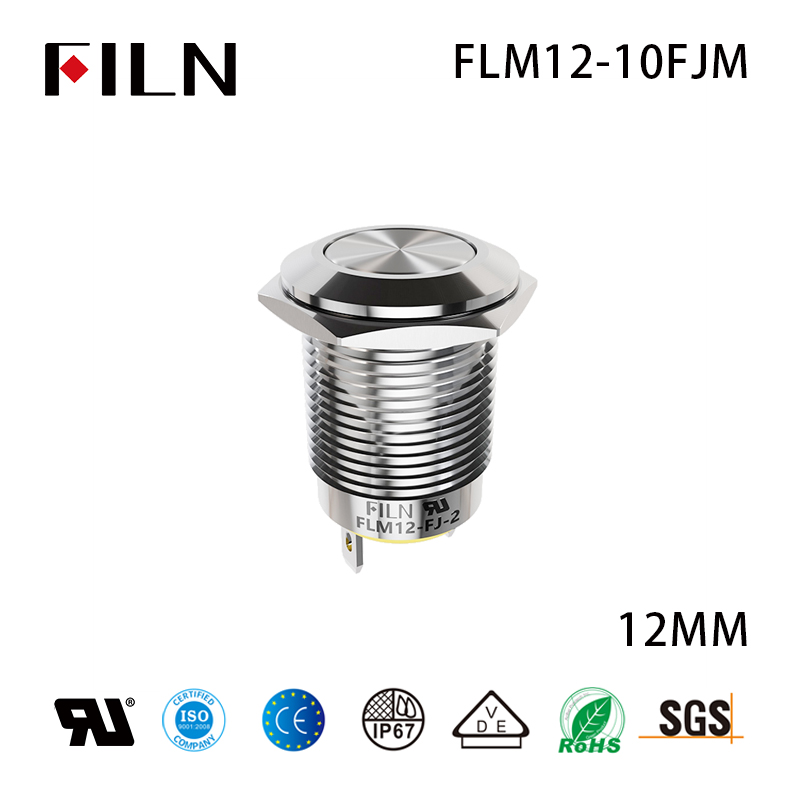

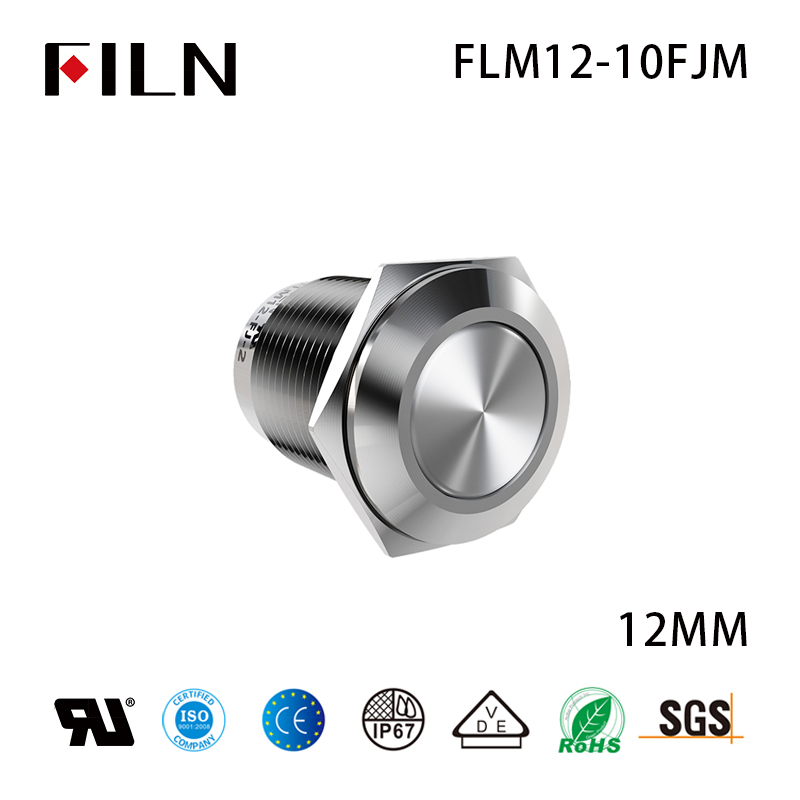

12MM 2PIN Metal IP65 Momentary Small Push Button Switch

  • Wa terproof class : IP65 smal push button switch
  • Name: Small Push Button Switch
  • Model: FLM12-10FJM
  • Head Type: Flat Head
  • Mounting Size: 12MM /0.47 ″
  • Switching Functions: Momentary small push button switch
  • Contact Configuration: I NO Push Button Switch
  • Rated Voltage: 1A
  • Voltage Options: 36V DC 250V AC
  • Materials: ABS plastic,Metal
  • Wire specification: AGW22
  • Download Certification: ULCE , RoHS, CCC ,IP 65
  • Email:
  • Download PDF: 12MM Small Push Button Switch

12MM Small Push Button Switch Drawing

12mm small push button switch Drawing

12MM Small Push Button Switch Product Information:

12MM small button switch is widely used in a fields of mechanical equipment,electronic products and industrial automation. The switch has the characteristics of small size, light weight, easy operation, safety and reliability, and can meet the needs of different users.usage method:

1. Position the switch in the required operation position.

2. Choose different button colors as needed to distinguish between different functions.

3. During the operation, the switch can be switched by pressing the button.

4. When not used for a long time, the switch should be disconnected to avoid damage.

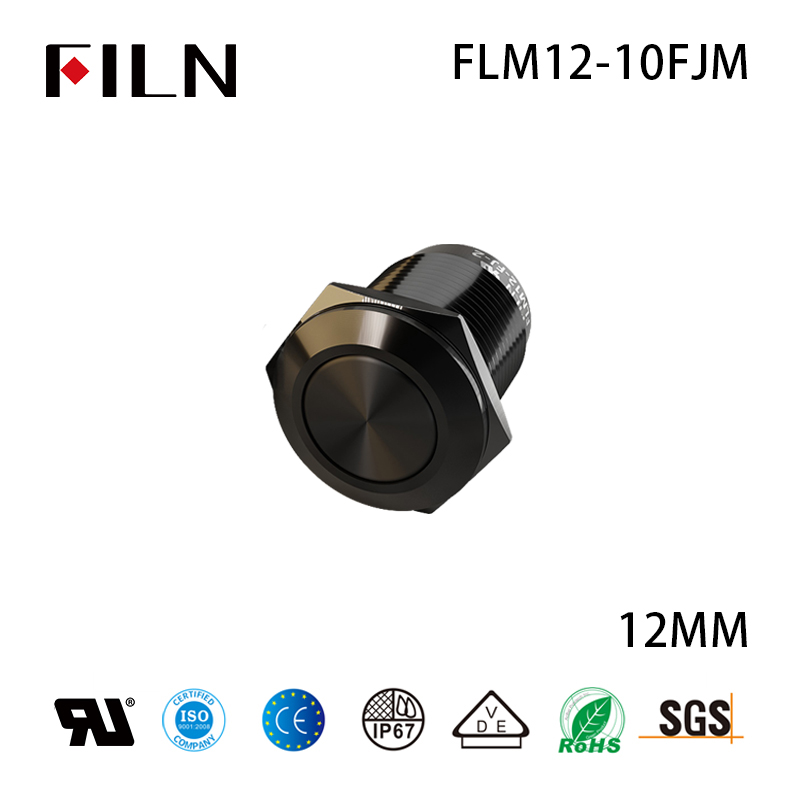

12MM Momnetary Push Button Switch Information 1

12MM Small Push Button Switch Product Specifications:

Production Series FLM12-10FJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V(DC) 250(AC) Housing PA66+GF20% nylon
Rated Current 1A(DC)0.5A(AC) Light Source LED button switch
Rated Power 36W(DC)125W(AC) Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Small Push Button Switch: Introduction and Features

Small Momentary Push Button Switch 2

12MM Small Push Button Switch: Price and Quality

One of the main selling points of the 12MM Small Push Button Switch is its competitive pricing. When compared to plastic buttons, this metallic switch offers a more affordable price. Thanks to FILN’s implementation of a fully automated production process, the manufacturing costs have been significantly reduced. It’s noteworthy to mention that FILN’s 12MM Small Push Button Switch occupies a staggering 80% share in the Chinese balance scooter market.

Head Design: Flat and Raised

The 12mm push button switch has a self-resetting function and is often referred to as the 12mm momentary push button switch. This switch offers two head design choices: flat and raised. The raised head design of the SMALL PUSH BUTTON SWITCH provides a more user-friendly pressing experience.

Application Scenarios: Toys and Balance Scooters

Small push button switches are commonly used in toys and balance scooters. This particular Small Push Button Switch also boasts an IP65 waterproof rating, hence it is also known as the IP65 Push Button Switch.

Certifications and Market: UL Certification for the US

The 12MM Push Button Switch has received UL certification, approved for sale in the U. S. market and not only meets user demands in terms of design and functionality but also holds a competitive edge in pricing.

12MM SMALL PUSH BUTTON SWITCH: Customization Services

Tailored Solutions with FILN:FILN Company stands out as a specialist in customizing and developing push button switches. Our approach is rooted in understanding the unique requirements of each customer. We recognize that different clients have different needs, and we are dedicated to fulfilling those with precision and care.

  • Versatile Connections: Catering to Specific Needs

One of the main aspects of customization is the type of connection. FILN takes pride in offering a wide variety of terminal connections based on specific client requirements. Whether it’s a MOLEX 2.54 terminal or any other type, our team ensures that the switch integrates seamlessly with the desired system.This is a key reason why our push-button switch products are so popular.

  • Beyond Standard: Why Choose FILN’s Custom Services?

FILN’s customization service extends beyond just altering connection types. We dive deep into the minutiae of the product specifications to ensure the switch aligns perfectly with the intended application. From varying sizes, shapes, to unique functionalities – our expertise lies in adapting the switch to match the client’s vision and try to meet the consumer needs of customers.

  • A Commitment to Quality and Innovation

Every custom product designed at FILN undergoes rigorous testing to ensure its durability, efficiency, and safety. Our dedication to quality remains uncompromised, irrespective of the extent of customization. Furthermore, we’re continually investing in R&D to stay abreast of the latest trends and technologies. This ensures that our solutions are not just tailored but also innovative.

12MM Push Button Switch connection 2

In conclusion, FILN’s 12MM SMALL PUSH BUTTON SWITCH customization service is all about making the product work for the client, rather than the client adapting to the product. With a deep commitment to quality, innovation, and client satisfaction, FILN is the go-to manufacturer for tailored push button switch solutions.

12MM Small Push Button Switch Application Environment

12mm Small Push Button Switch is a switchgear widely used in a wide variety of industrial and commercial environments. Because of its high waterproof and dustproof performance, it is often used in a variety of harsh environments.

In the field of industrial automation, this switch is widely used to control a variety of mechanical equipment, such as conveyor belts, pumps, valves, etc.

In the business environment, it is also widely used in various commercial devices, such as vending machines, coffee machines, printers, etc. This switch is characterized by a faster response speed and a relatively high reliability. Because of its metal material, it also has a better durability and stability. Moreover, this switch also has lower contact resistance and lower wear rate, so it can maintain good performance for a long time.

In conclusion, 12mm Small Push Button Switch is a switchgear widely used in a variety of industrial and commercial environments with high water and dust proof performance as well as fast response speed and high reliability. When selecting and using this switch, consider its application environment and specification parameters.

Small Push Button Switch Application Environment 1

How to Wire A 12MM Small Push Button Switch ?

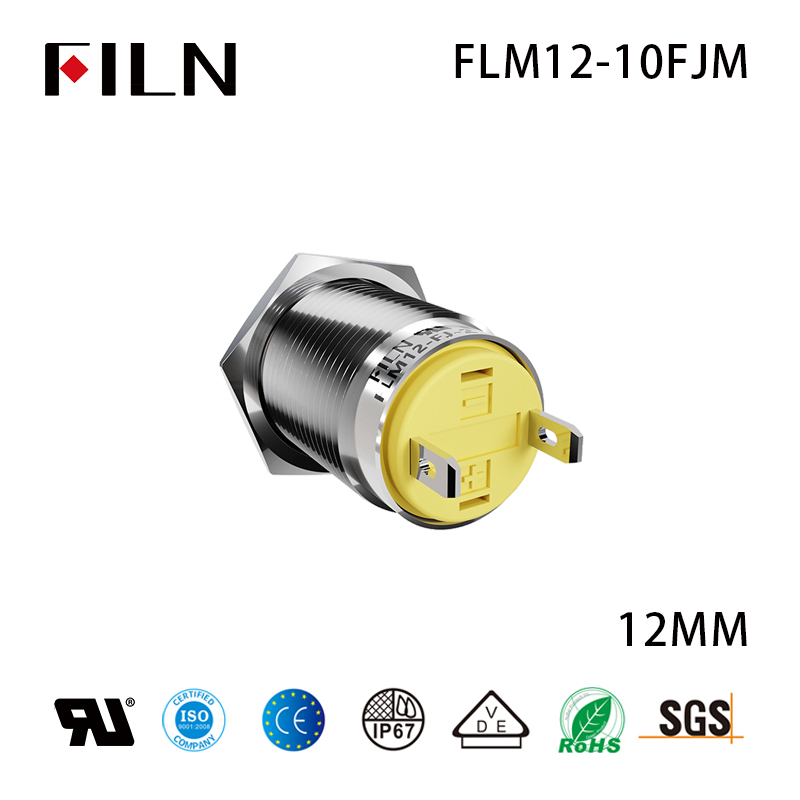

1NO2 pin momentary button switch: This push button switch has only two switch pins, one of which is C and one normally open contact (NO).

Wiring:Connect the positive pole of the battery to the switch pin C, connect the NO to the positive pole of the device, and connect the negative pole of the battery to the negative pole of the device. as the picture shows.

  • In normal state, the normally open contact (NO) of this push button switch is disconnected from other circuit components, and the device does not work.
  • When the button is pressed, the normally open contact is closed, a path is formed, and the device starts to work.
  • When the button is released, the normally open contact returns to the disconnected state, disconnecting the connection with other circuit components, and the device stops working.
Small Push Button Switch Wiring Diagram
