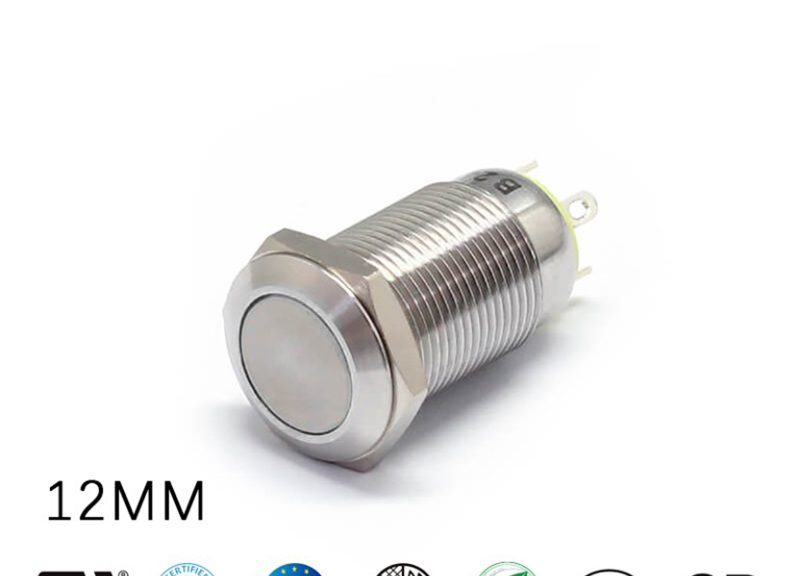

FILN 12MM Push Button Switch: Metal, 4-Pin, No lights

12MM Push Button Switch Drawings

Momentary push button 12mm Drawings
More Push Button Switch

12MM Push Button Switch Product Specifications:

Production Series FLM12-10FJZ Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Green, Yellow,Orange and White Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

Panel Mount Switch 12MM Related Products：

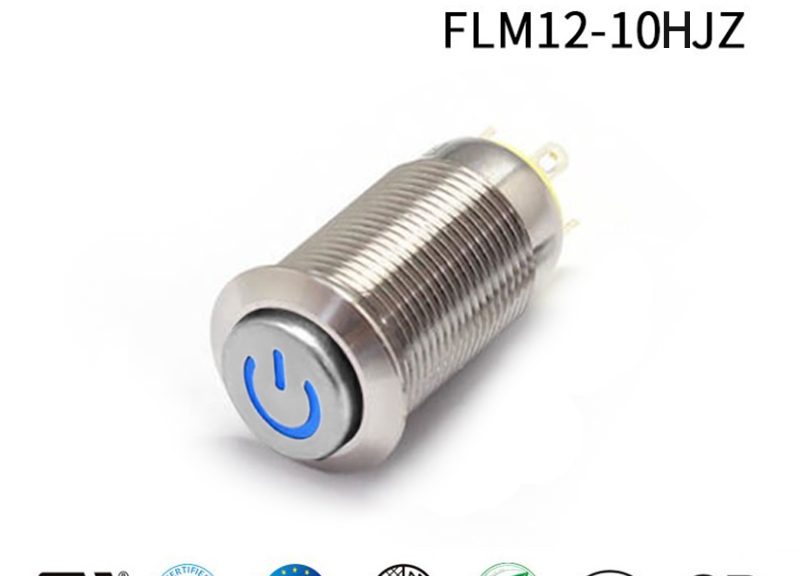

FILN 12MM 24 Volt Push Button Switch – Illuminated Power Symbol, 4PIN Metal Button for Precision Control

12MM 24 Volt Push Button Switch Drawings

24V push button switch Drawing
More Push Button Switch

12MM 24 Volt Push Button Switch Specifications:

Production Series FLM12-10HJZ Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Green, Yellow,Blue and White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Electrical push button 24V Related Products：

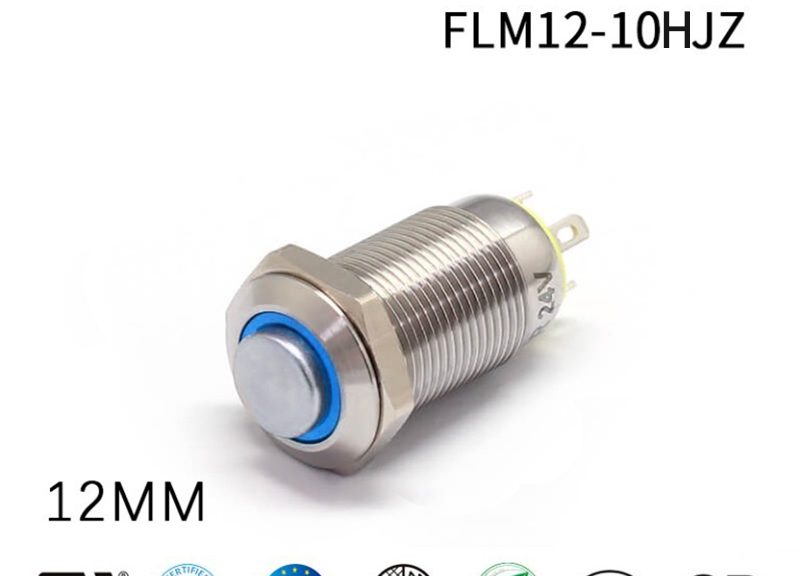

FILN 12MM 120V Momentary Push Button Switches: Metal, Ring Design With Lamp, 4 Pin, LED in 5 Colors

120V Momentary Push Button Switches Drawings

Electrical push button switch 120v
More Push Button Switch

12MM 120V Momentary Push Button Switches Specifications:

Production Series FLM12-10HJZ Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Green, Yellow,Blue and White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Momentary switch for 120v circuits Related Products：

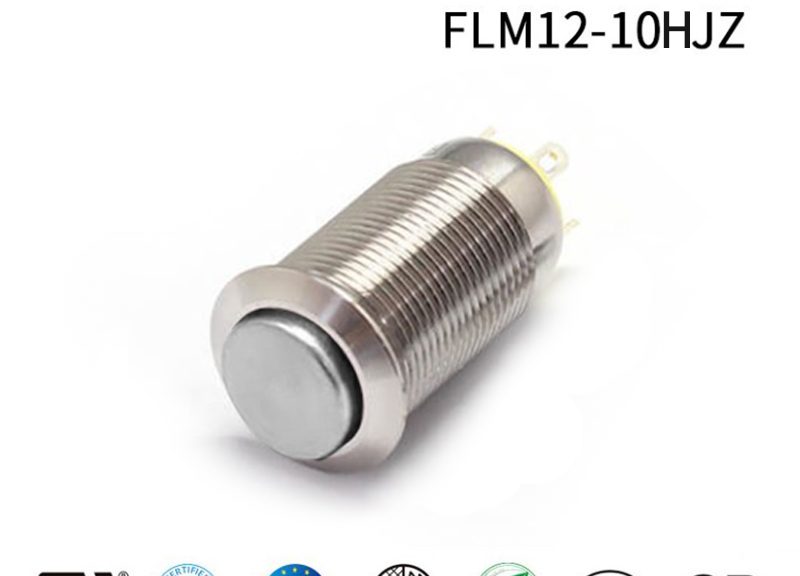

FILN 12MM High-Top 2 Pin Push Button Switch – No lights

12MM 2 Pin Push Button Switch Drawings

Two pin push button switch drawings
More Push Button Switch

12MM 2 Pin Push Button Switch Specifications:

Production Series FLM12-10HJZ Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Green, Yellow,Blue and White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Momentary switch Related Products：

FILN Metal Push Button Switches Customizable Short Length Switches

19MM Metal Push Button Drawings :

Metal push button switchDrawing
More Push Button Switch

19MM Metal Push Button Product Specifications:

  Production Series FLM19-FW-10 Light Guide Button PC plastic
 switch Shape round Actuator Zinc Alloy, Stainless Steel, Brass
 switch LED Color Housing Sleeve Zinc Alloy, Stainless Steel, Brass
  Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
  Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 momentary light switch Nut H59 nickel plated brass
 Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
 Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

19MM 12V Metal Push Button Related Products：

FILN Momentary Off Push Button Switch Customizable, Detachable, 19mm, 5 LED Colors

19MM Momentary Off Push Button Switch Drawings :

Temporary off push switch Drawing
More Push Button Switch

19MM Momentary Off Push Button Switch Product Specifications:

  Production Series FLM19-FW-10 Light Guide Button PC plastic
 switch Shape round Actuator Zinc Alloy, Stainless Steel, Brass
 switch LED Color Red, Blue, Green, Yellow, White, Bicolor, tricolor Housing Sleeve Zinc Alloy, Stainless Steel, Brass
  Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
  Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 momentary light switch Nut H59 nickel plated brass
 Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
 Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

19MM Momentary Off Push Button Switch Related Products：

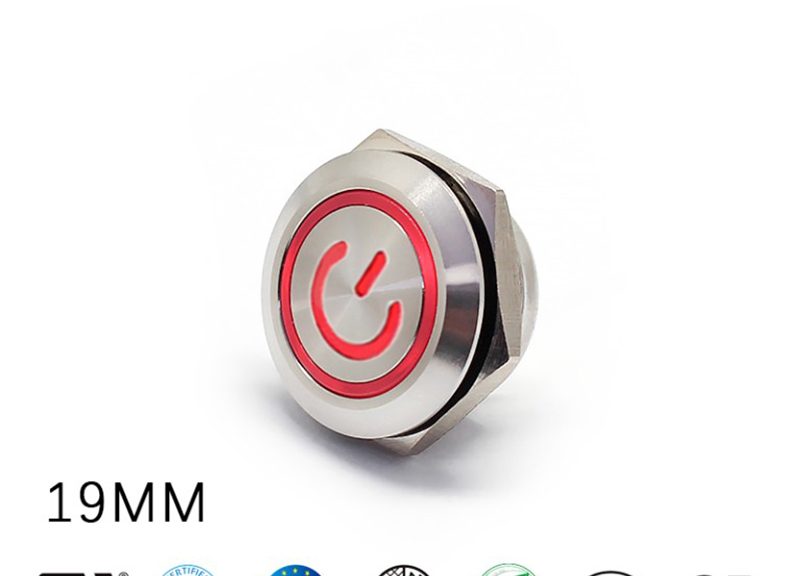

FILN Short Profile Customizable 19MM Low Profile Push Button Switches

19MM Low Profile Push Button Switch Drawings :

Flat push button switch Button Drawings
More Push Button Switch

19MM Low Profile Push Button Switch Product Specifications:

Production Series FLM19-10FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 12V（DC） Housing PA66+GF20% nylon
Rated Current 0.1A（DC） Light Source LED
Rated Power 1.2W（DC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

19MM Low Profile Push Button Switch Related Products：

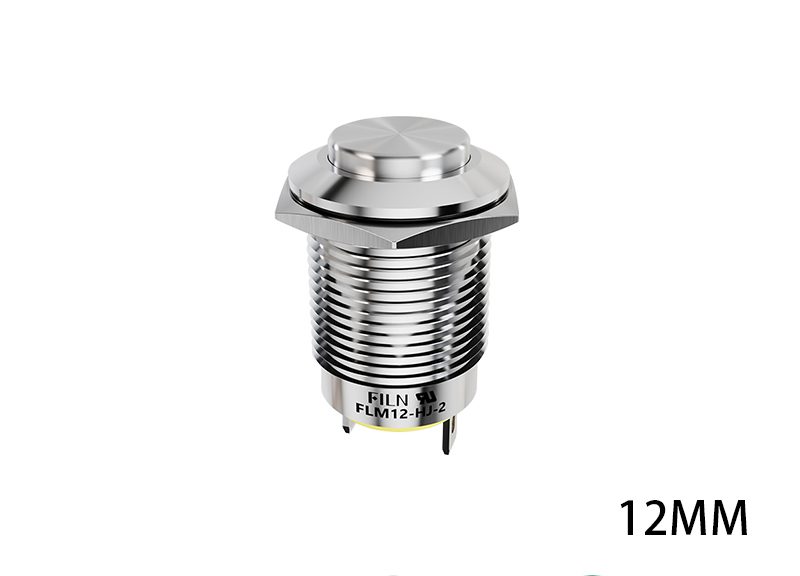

FILN 12MM Metal High-Top Mini Push Button Switch – Precision Control, No-Light 2PIN Design

12MM Mini Push Button Product Drawings:

Mini Push Button Drawings
 Push Button Switch  New products

12MM Mini Push Button Switch Product Specifications:

Production Series FLM12-10HJM Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color red,blue,green,yellow,white Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

12MM Mini Push Button Switch on off Products：

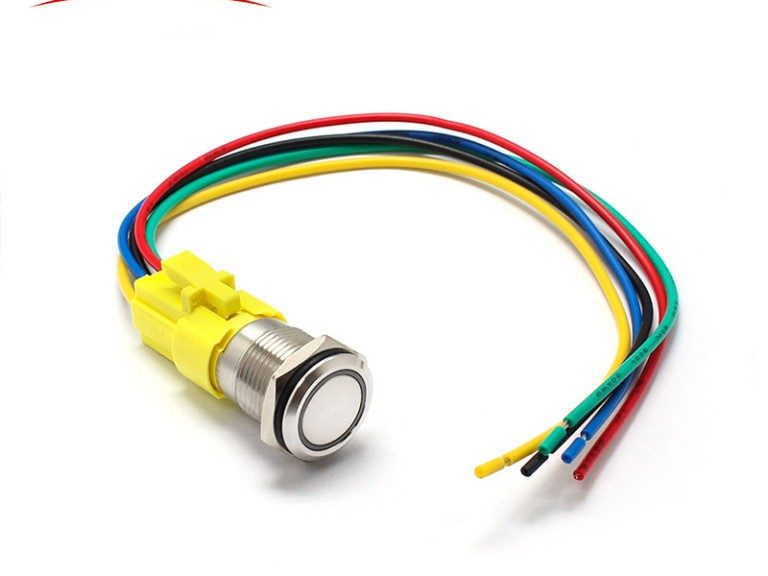

16 MM Push Button Harness 5Pin Push Button Wire Connector Switch

16MM Wire Connector Product Drawings:

Wire Connector Drawings

Most of the buttons and switches available on the market are designed with plug-in connectors, while some feature screw terminals.

The pushbutton harness is designed to fit plug-in style buttons and switches. By aligning the harness with the plug at the back of the button, it can be easily inserted and used seamlessly. The choice between plug-in and screw terminal design depends on the installation environment.

Please note that the term “pushbutton harness” refers to a wiring assembly specifically tailored for plug-in style buttons and switches to facilitate their installation and use.

 Push Button Switch  New products

16MM Wire Connector Product Specifications:

Production Series 16MM Wire Connector Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 2A（DC）0.5A（AC） Light Source
Rated Power 72W（DC）125W（AC） Resistor
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM Wire Connector Related Products：

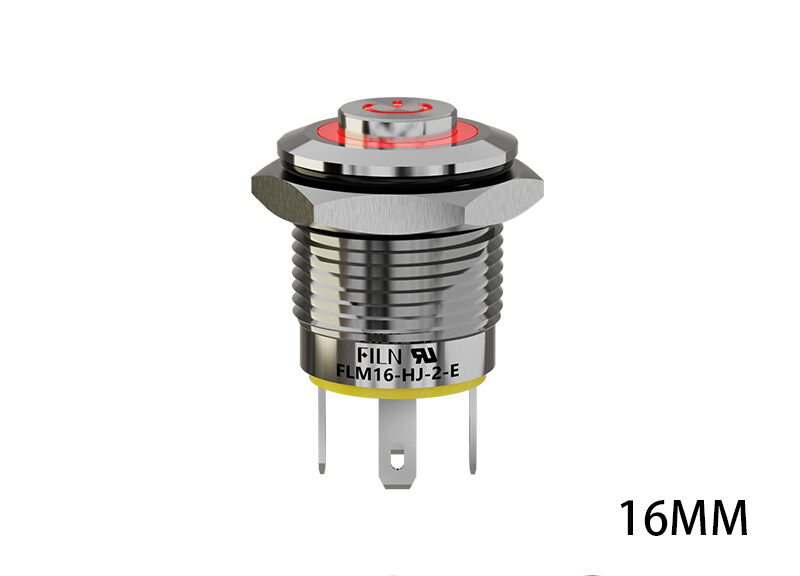

FILN 16MM Push Button 12 Volt Switch: 4-Pin, metal material，Power Symbol LED, Durable Design

16MM Push Button 12 Volt Switch Product Drawings:

12V push button switch Drawings
 Push Button Switch  New products

16MM Push Button 12 Volt Switch Product Specifications:

Production Series FLM16-10FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 3A（DC）3A（AC） Light Source LED
Rated Power 108W（DC）750W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM Push Button 12 Volt Switch Related Products：

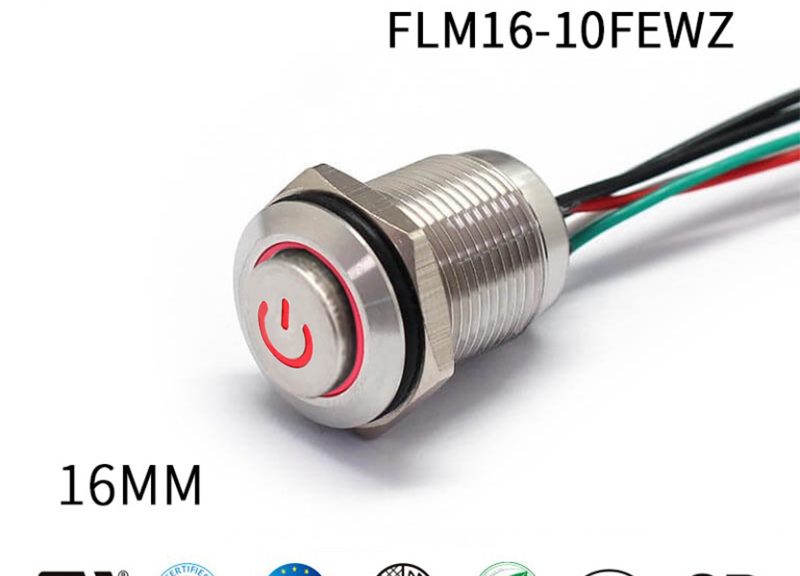

FILN No Nc Push Button Switch Two-Color Push Button Switch with Power Symbol

16MM No Nc Push Button Switch Product Drawings:

No Nc Push Button Switch Drawings
 Push Button Switch  New products

16MM No Nc Push Button Switch Product Specifications:

Production Series FLM16-10HEWM Light Guide Button PC plastic
Button Shape Round Actuator 304 Stainless steel
Button LED Color Red ， green Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

No Nc Push Button Switch Related Products：

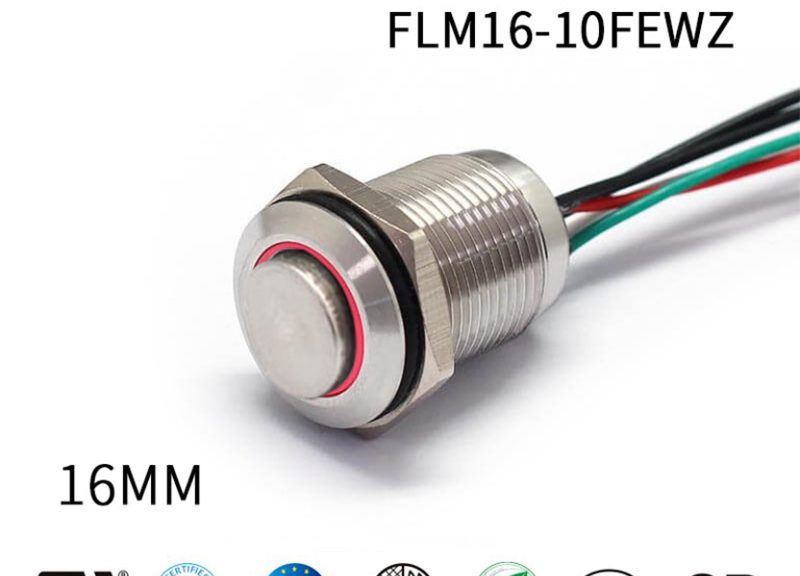

FILN Momentary Push Button Switch Led Waterproof Two Colors 5Pin Switch

16MM Momentary Push Button Switch Led Product Drawings:

Momentary Push Button Switch Led Drawings
 Push Button Switch  New products

16MM Momentary Push Button Switch Led Product Specifications:

Production Series FLM16-10FEWM Light Guide Button PC plastic
Button Shape Round Actuator 304 Stainless steel
Button LED Color Red ， green Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM Momentary Push Button Switch Led Related Products：

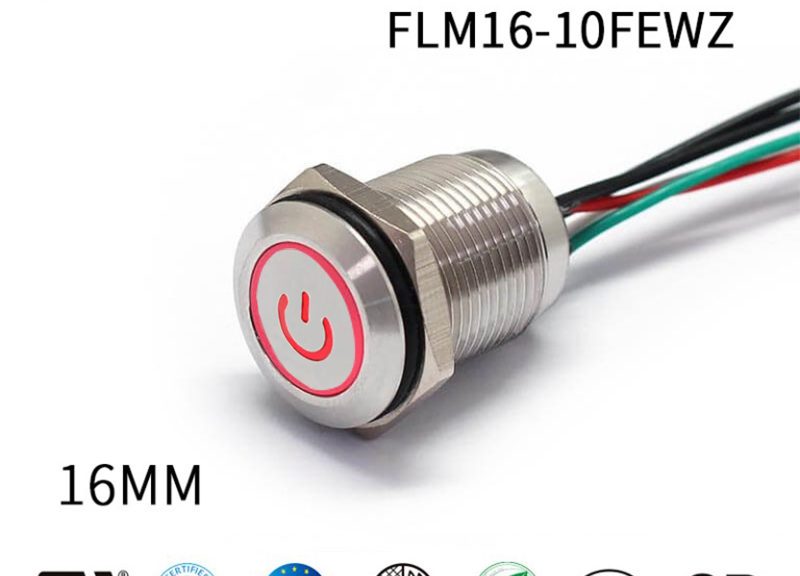

FILN Momentary Push Button Switch With Led Red and Green Dual Color 5Pin Switches with Wires

16MM Momentary Push Button Switch With Led Drawings:

Waterproof Button Drawings
 Push Button Switch  New products

16MM Momentary Push Button Switch With Led Product Specifications:

Production Series FLM16-10HEWM Light Guide Button PC plastic
Button Shape Round Actuator 304 Stainless steel
Button LED Color Red ， green Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM Momentary Push Button Switch With Led Related Products：

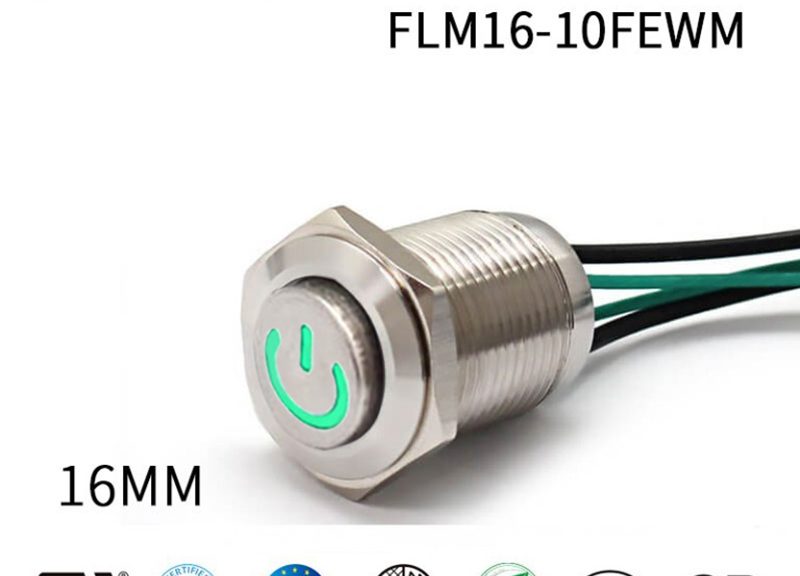

FILN 16MM Latching Push Button Switch With Led: Wired,Power Symbol

16MM Latching Push Button Switch With Led Product Drawings:

Latching Push Button Switch With Led Drawing
 Push Button Switch  New products

16MM Latching Push Button Switch With Led Product Specifications:

Production Series FLM16-10HEWM Light Guide Button PC plastic
 Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Blue, Green, Yellow, White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED button switch
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM Latching Push Button Switch With Led Related Products：

FILN 4 Pin Push Button Switch – 16MM Metal, luminescence, 5 LED Colors for Precision Control

16MM 4 Pin Push Button Switch Product Drawings:

120V Push Button Switch Drawings 1

16MM 4 Pin Push Button Switch Product Specifications:

Production Series FLM16-10HEJM Light Guide Button PC plastic
 Button Shape round Actuator Zinc Alloy, Stainless Steel, Brass
Button LED Color Red, Blue, Green, Yellow, White, Bicolor, tricolor Housing Sleeve Zinc Alloy, Stainless Steel, Brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

16MM 4 Pin Push Button Switch Related Products：
