FILN 16MM Push Button 12 Volt Switch: 4-Pin, metal material，Power Symbol LED, Durable Design
- Waterproof class:IP67 Push Button Switch
- Name:Push Button 12 Volt Switch
- Model: FLM16-10FEJM
- Head Type: Flat Head
- Mounting Size: 16MM / 0.63″
- Switching Functions: Momentary / Latching switch
- Contact Configuration: I NO Push Button Switch
- Current: 10A(DC) 10A(AC)
- Voltage Options:3V, 6V, 12V, 110V, 220V, 250V, 380V
- Color: Red, Blue, Green, Yellow, White
- Materials:ABS plastic,Copper, Stainless steel, Zinc alloy
- Download Certification:CE, CCC, ROSH, IP67, UL
- Email:sales2@filn.com.cn
- Download PDF:16MM Push Button 12 Volt Switch

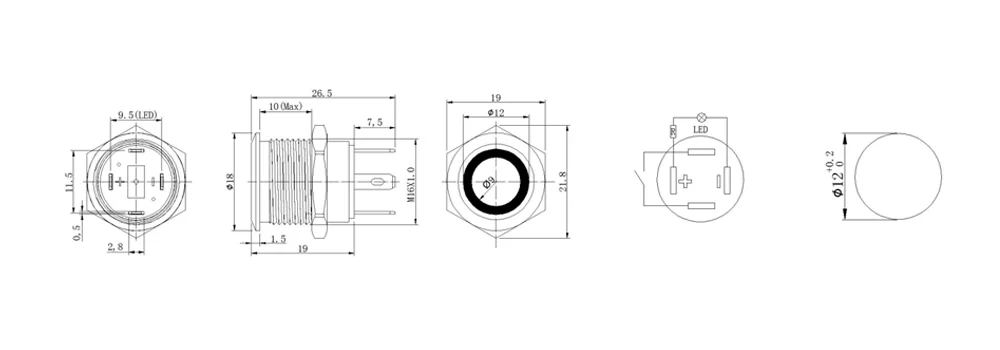

16MM Push Button 12 Volt Switch Product Specifications:
| Production Series | FLM16-10FEJM | Light Guide Button | PC plastic |
| Button Shape | round | Actuator | 304 Stainless steel |
| Button LED Color | Red blue green yellow white | Housing Sleeve | H59 nickel plated brass/304Stainless steel |
| Mechanical Life | The 500 thousand time | Button Pin | H62 copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP67 IK09 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V（DC） 250V（AC） | Housing | PA66+GF20% nylon |
| Rated Current | 3A（DC）3A（AC） | Light Source | LED |
| Rated Power | 108W（DC）750W（AC） | Resistor | Metal film |
| Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
