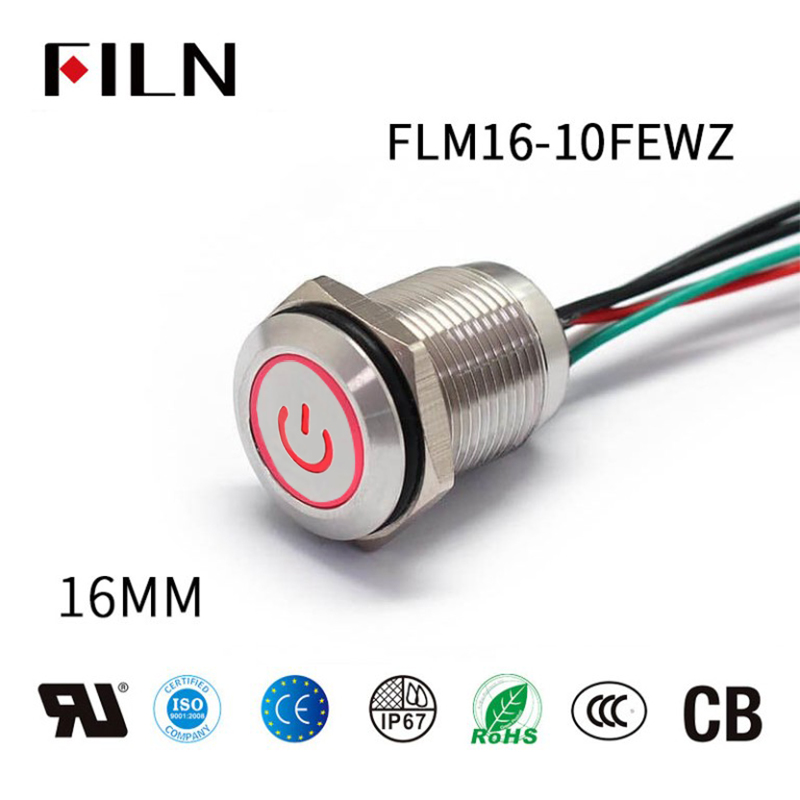

FILN Momentary Push Button Switch Led Waterproof Two Colors 5Pin Switch
- Waterproof class:IP67 Push Button Switch
- Name:Momentary Push Button Switch Led
- Model: FLM16-10FEWZ
- Head Type: Flat Head
- Mounting Size: 16MM / 0.63″
- Switching Functions: Momentary / Latching switch
- Contact Configuration: I NO Push Button Switch
- Current: 10A (DC) 10A (AC)
- Voltage Options:2V, 3V, 5V, 6V, 12V, 24V, 110V, 120V, 220V
- Light Color:Red / Green
- Materials:ABS plastic,Copper, Stainless steel, Zinc alloy
- Download Certification:CE, CCC, ROSH, IP67, UL
- Wire Specification: AGW18
- Email:sales2@filn.com.cn
- Download PDF:16mm Momentary Push Button Switch Led
16MM Momentary Push Button Switch Led Product Specifications:
Production Series | FLM16-10FEWM | Light Guide Button | PC plastic |
Button Shape | Round | Actuator | 304 Stainless steel |
Button LED Color | Red , green | Housing Sleeve | H59 nickel plated brass/304Stainless steel |
Mechanical Life | The 500 thousand time | Button pin | 22AWG PVC wire(0.3MM2) |
Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
Protection Level | IP67 IK09 | Nut | H59 nickel plated brass |
Rated Voltage | 36V(DC) 250(AC) | Housing | PA66+GF20% nylon |
Rated Current | 5A(DC)5A(AC) | Light Source | LED |
Rated Power | 36W(DC)125W(AC) | Resistor | Metal film |
Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
