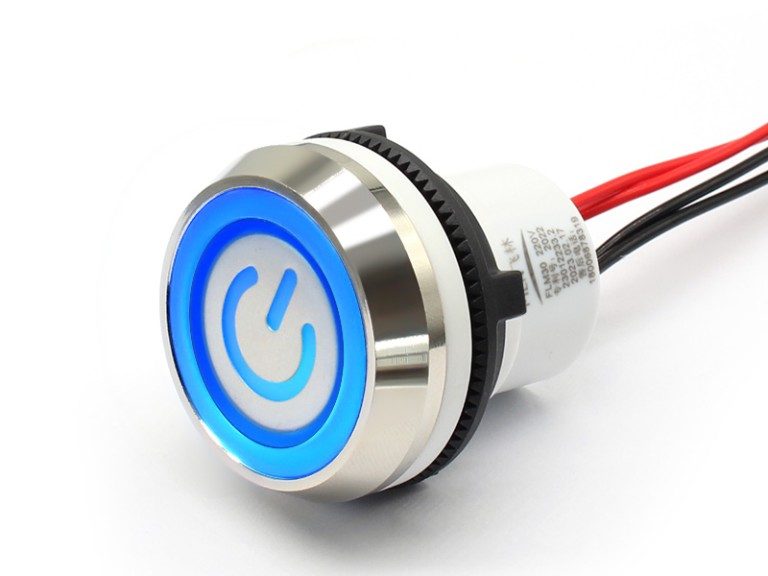

Introduction to Plastic Waterproof 30MM IP68 Push Button Switch

30MM IP68 Push Button Switch Drawing:

IP68 Push Button Switch Drawing

 Push Button Switch  New products

30MM IP68 Push Button Switch Product Specifications:

Production Series 30MM IP68 Push Button Switch Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 60V（DC）250V(AC) Housing PA66+GF20% nylon
Rated Current 5A（DC）10A(AC) Light Source LED
Rated Power 300W（DC）2500W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM IP68 Push Button Switch Related Products：

How to connect more types of pushbutton switches?

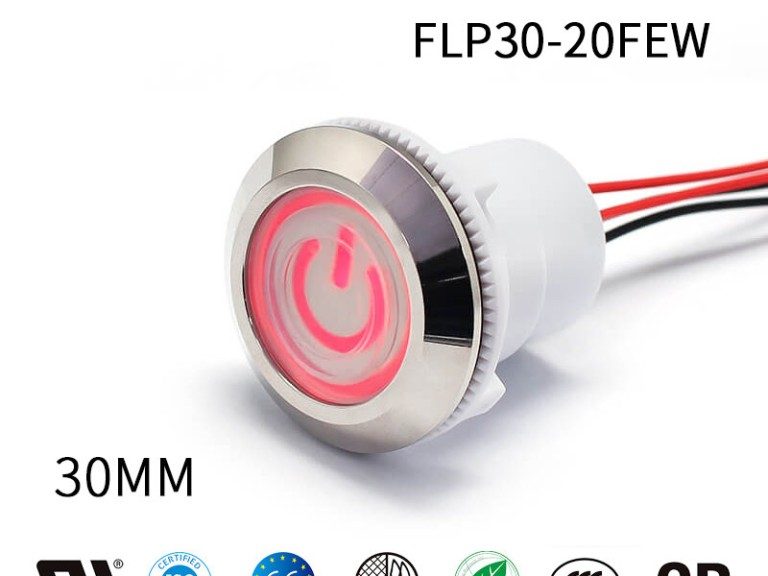

Underwater Push Button Switch 30MM IP67 Good Price Illuminated With 4 Wires

30MM Underwater Push Button Switch Drawing:

Underwater Push Button Switch Drawing

 Push Button Switch  New products

30MM Underwater Push Button Switch Product Specifications:

Production Series FLP30-20FEW Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 60V（DC）250V(AC) Housing PA66+GF20% nylon
Rated Current 5A（DC）10A(AC) Light Source LED
Rated Power 300W（DC）2500W(AC) Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM Underwater Push Button Switch Related Products：

How to connect more types of pushbutton switches?

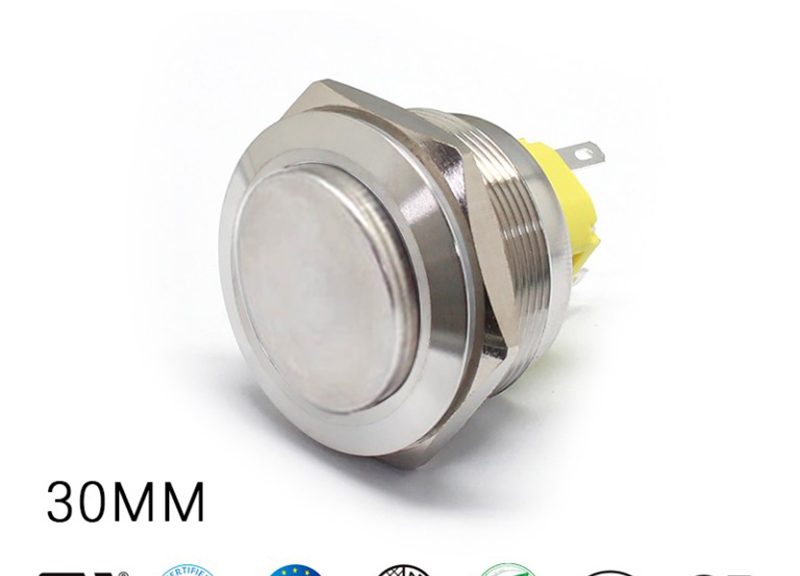

FILN 30MM Illuminated Metal Push Button Switch

30MM Illuminated Metal Push Button Switch Momentary Drawing:

Metal push button switch with illumination Drawings

 Push Button Switch  New products

30MM Illuminated Metal Push Button Switch Product Specifications:

Production Series FLM30-20FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM Illuminated Metal Push Button Switch Related Products：

How to connect more types of pushbutton switches?

FILN 30MM Metal Push Button Switch Momentary

30MM Metal Push Button Switch Momentary Drawing:

Momentary metal push button switch Drawings

 Push Button Switch  New products

30MM Metal Push Button Switch Momentary Product Specifications:

Production Series FLM30-20FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM Metal Push Button Switch Momentary Related Products：

How to connect more types of pushbutton switches?

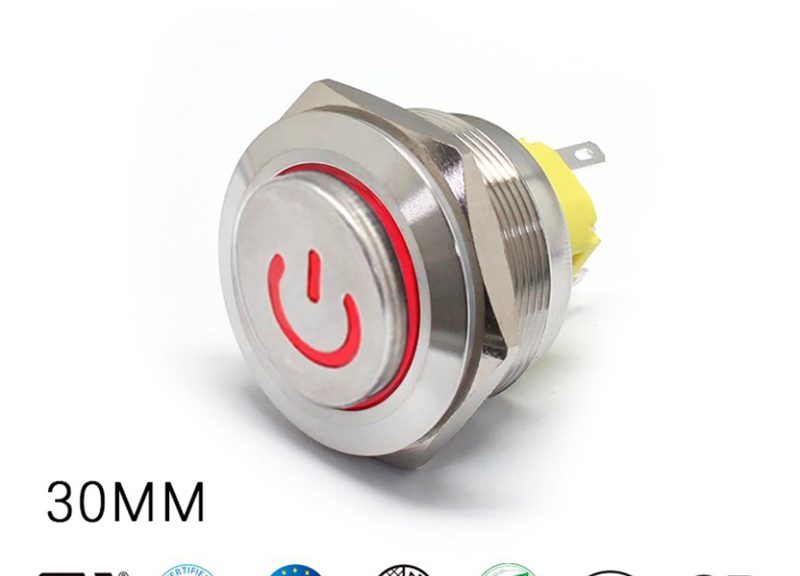

FILN 30MM Nc Switch Push Button

30MM Nc Switch Push Button Drawing:

Normally closed push button switch Drawings

 Push Button Switch  New products

30MM Nc Switch Push Button Product Specifications:

Production Series FLM30-20HEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM Nc Switch Push Button Related Products：

How to connect more types of pushbutton switches?

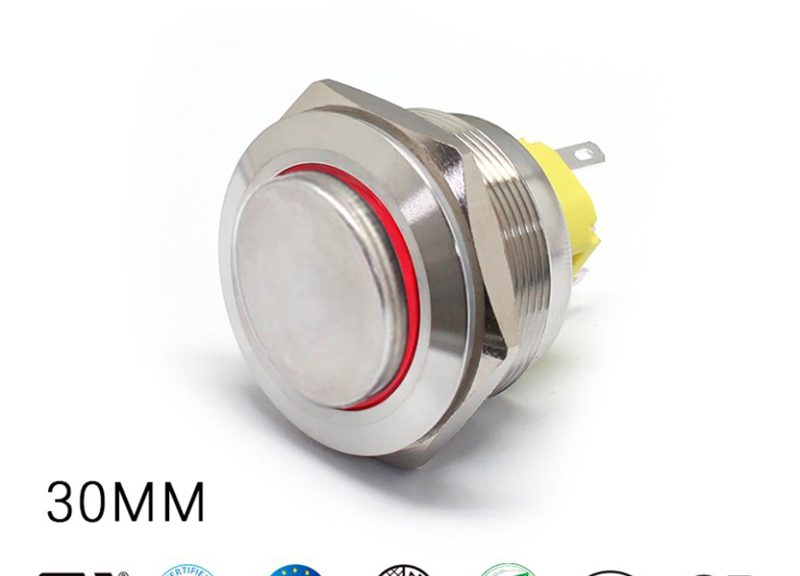

FILN 30MM Latching off on Push Button Switches

30MM Latching off on Push Button Switches Drawing:

latching push button switches Drawings

 Push Button Switch  New products

30MM Latching off on Push Button Switches Product Specifications:

Production Series FLM30-20HEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM Latching off on Push Button Switches Related Products：

How to connect more types of pushbutton switches?

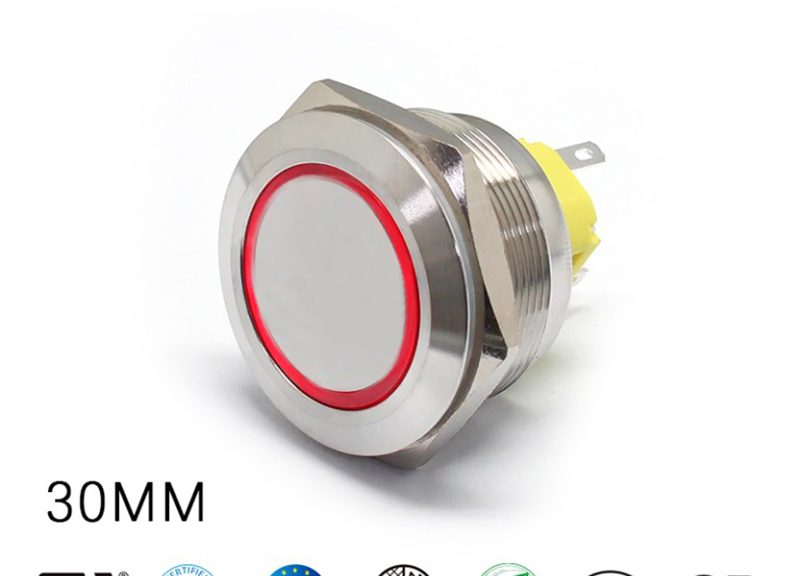

FILN 30MM Push Button Switch with Led Indicator

30MM Push Button Switch with Led Indicator Drawing:

Illuminated push button switch Drawings 2

 Push Button Switch  New products

30MM Push Button Switch with Led Indicator Product Specifications:

Production Series FLM30-20FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM Push Button Switch with Led Indicator Related Products：

How to connect more types of pushbutton switches?

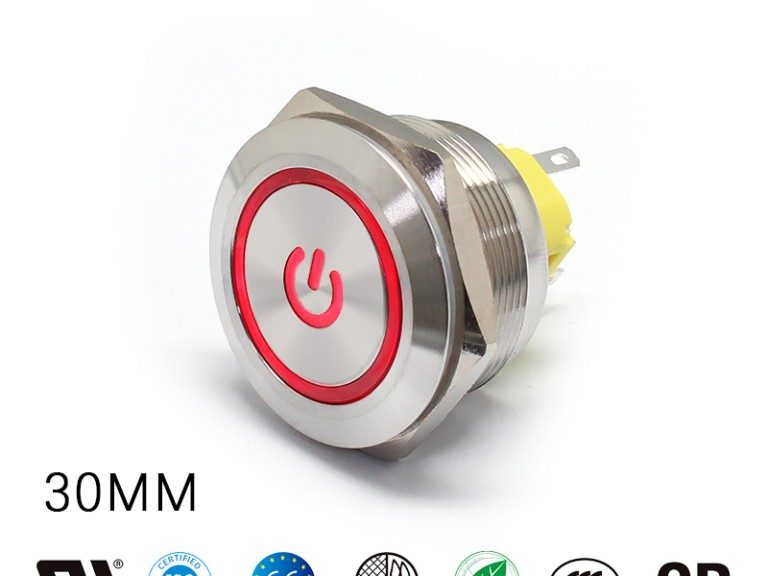

30MM On Off Switch Symbol And 2 Step 5 PIN lighted Push Button Switches

30MM lighted Push Button Switches Drawing:

lighted Push Button Switches drawings

 Push Button Switch  New products

30MM lighted Push Button Switches Product Specifications:

Production Series FLM30-20FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

30MM lighted Push Button Switches Related Products：

How to connect more types of pushbutton switches?

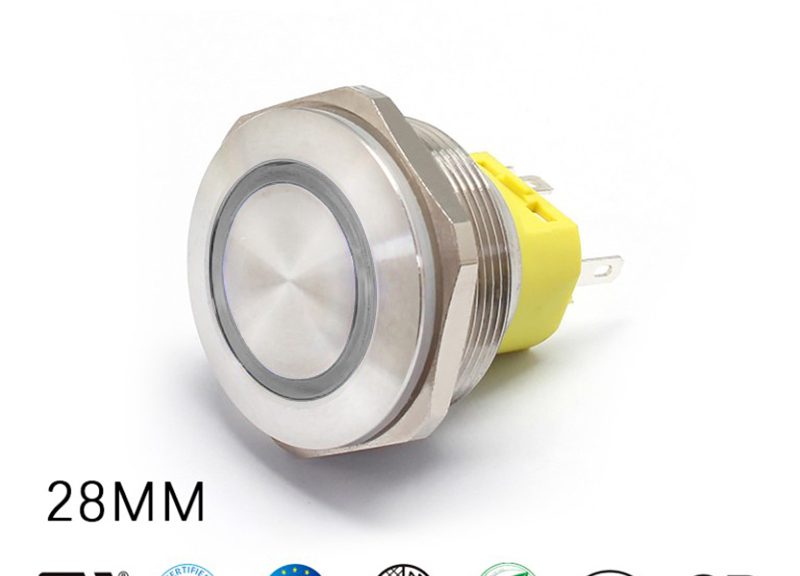

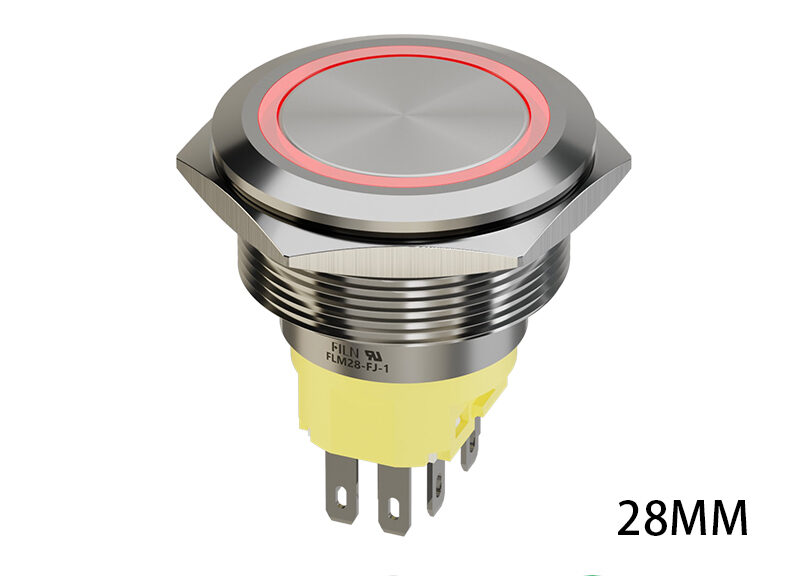

FILN 28MM Metal Led Push Button Switch

28MM Metal Led Push Button Switch Drawing:

LED illuminated metal switch Drawings

 Push Button Switch  New products

28MM Metal Led Push Button Switch Product Specifications:

Production Series FLM28-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

28MM Metal Led Push Button Switch Related Products：

How to connect more types of pushbutton switches?

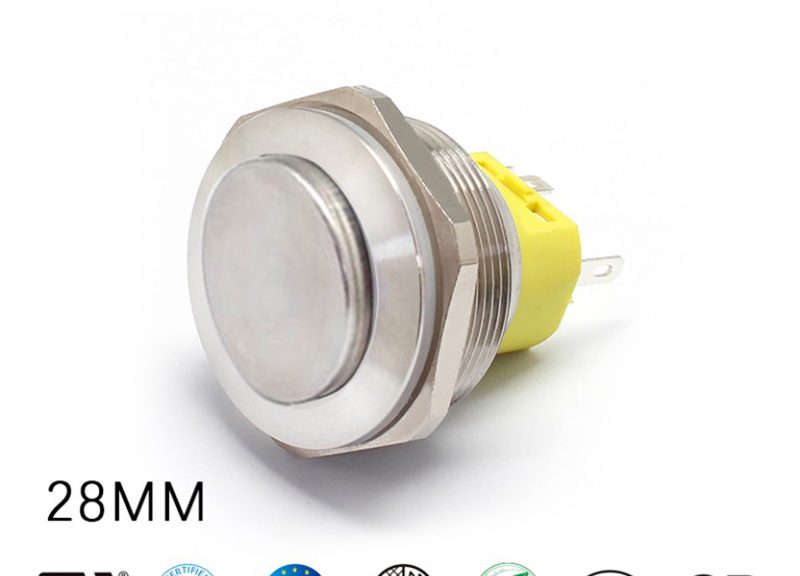

FILN 28MM Metal Momentary Push Button Switch

28MM Metal Momentary Push Button Switch Drawing:

Momentary metal push switch Drawings

 Push Button Switch  New products

28MM Metal Momentary Push Button Switch Product Specifications:

Production Series FLM28-11HEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

28MM Metal Momentary Push Button Switch Related Products：

How to connect more types of pushbutton switches?

FILN 28MM 12V Led Push Button Switch

28MM 12V Led Push Button Switch Drawing:

12 volt LED push button switch Drawings

 Push Button Switch  New products

28MM 12V Led Push Button Switch Product Specifications:

Production Series FLM28-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

28MM 12V Led Push Button Switch Related Products：

How to connect more types of pushbutton switches?

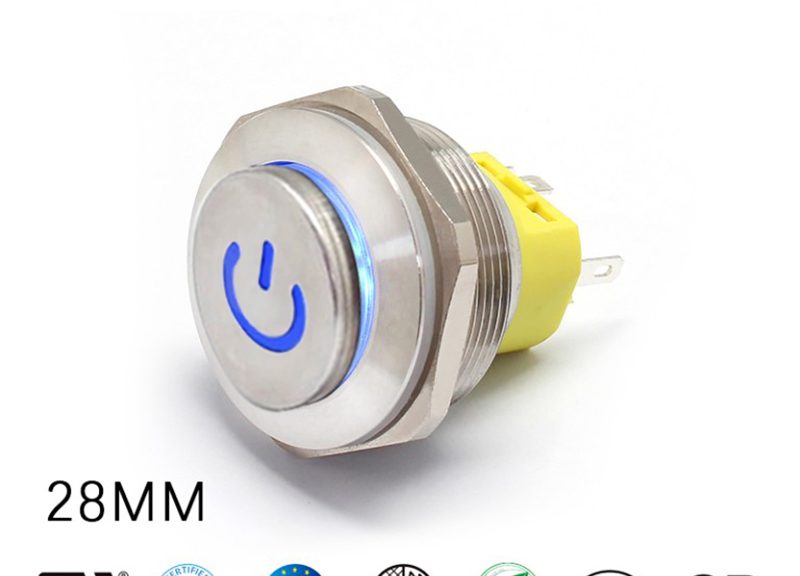

FILN 28MM Push Button on off Switch with Led

28MM Push Button on off Switch with Led Drawing:

Push button switch with LED indicator Drawings

 Push Button Switch  New products

28MM Push Button on off Switch with Led Product Specifications:

Production Series FLM28-11HEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

28MM Push Button on off Switch with Led Related Products：

How to connect more types of pushbutton switches?

FILN 28MM Push Button Switch Led Illuminated

28MM Push Button Switch Led Illuminated Drawing:

LED illuminated push button switch Drawings

 Push Button Switch  New products

28MM Push Button Switch Led Illuminated Product Specifications:

Production Series FLM28-11HEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

28MM Push Button Switch Led Illuminated Related Products：

How to connect more types of pushbutton switches?

28MM LED Ring Button Metal Push Button Power Switch

28MM LED Ring Button Drawing:

LED Ring Button Drawings

 Push Button Switch  New products

28MM LED Ring Button Product Specifications:

Production Series FLM30-20FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

28MM LED Ring Button Related Products：

How to connect more types of pushbutton switches?

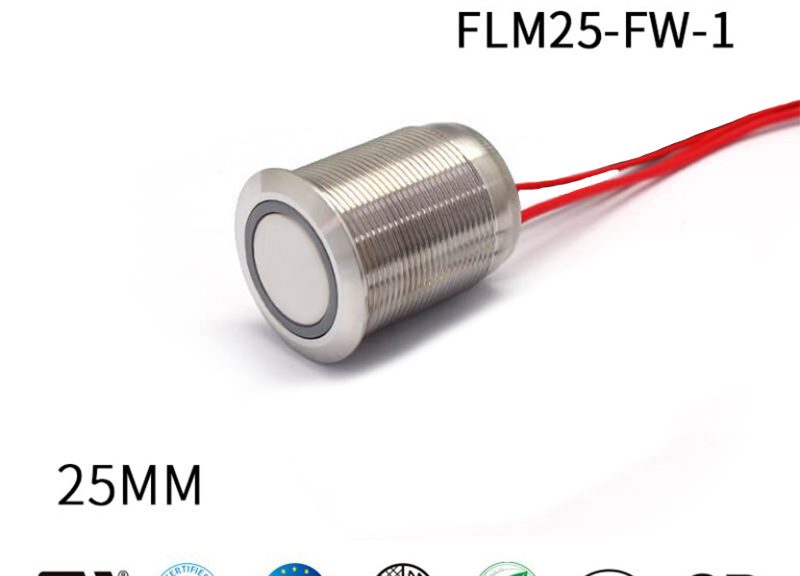

FILN 25MM Waterproof Switch Push Button

25MM Waterproof Switch Push Button Drawing:

Waterproof push button switch Drawings

 Push Button Switch  New products

25MM Waterproof Switch Push Button Product Specifications:

Production Series FLM25-FW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 3A Light Source LED
Rated Power 660W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

25MM Waterproof Switch Push Button Related Products：

How to connect more types of pushbutton switches?
