Waterproof Push Button Switch 12V Drawings

12V Push Button Switch Waterproof Features Introduction

FILN’s Innovative Button Switch Design

The 12MM 12 Volt Waterproof Push Button Switch designed by FILN PUSH BUTTON SWITCH in 2020 is not only exquisitely crafted but also offers several innovative features:

1.Wired Design Saves Time on Soldering

The unique design of this 2 wire push button switch comes with pre-attached wires, eliminating the tedious process of soldering for the users. The wire can be directly attached to the 12MM button or connected to a terminal, offering true plug-and-play convenience.

2.  Superior Waterproof Performance

Equipped with IP67 waterproof capabilities, the 12mm waterproof push button switch stands up to outdoor environments with ease. This rating ensures that the switch can be submerged in water up to 1 meter deep for 30 minutes without damage, guaranteeing reliability in various weather conditions.

3.Material and Production Advantages Offer Competitive Pricing

The push button switch comes at a relatively lower price. FILN’s design team chose Metal as the primary material. Coupled with the company’s automated production line, this substantially reduces the production cost, providing users with high-quality yet affordably priced products.

4. Rigorous Quality Certification Ensures User Safety

This 12mm plastic push button switch has passed both UL and CE certifications. Both these certifications are a powerful testament to the product’s quality and safety, ensuring peace of mind for users.

In conclusion, leveraging nearly 20 years of production experience and an unwavering commitment to innovation, FILN PUSH BUTTON SWITCH has designed this practical and competitive 12MM plastic push button switch. Be it design, material selection, or production process, the company showcases its professionalism and dedication, making it a trustworthy and preferable choice for users.

12MM Waterproof 12 Volt Push Button Switch Product Specifications:

12MM Waterproof Push Button Switch 12V Customization

• Customizable Symbol Options with Light Indicators

The 12V Waterproof Push Button on off Switch offers a variety of customizable symbols with integrated lighting solutions. Users can select the preferred symbols that best fit their requirements, making the switch more versatile and tailored to specific applications.

• Versatile Terminal Connection Customization

The 12V Waterproof Push Button on off Switch provides options for users to customize connections to various terminals. This flexibility allows for easier integration into different electronic setups, enhancing usability and adaptability.

• A variety of Waterproof Push Button Switch shell designs

FILN’s push button switches are not only high-quality but also offer a high degree of customization. Regardless of the color and shape of the shell style, Filn ensures that the user gets exactly the button switches they need.

12MM Waterproof Push Button Switch 12V Application Environment

12MM Waterproof Push Button Switch 12V is a common electrical component that is widely used in a variety of different application scenarios. Among them, one of the common application scenarios is the industrial control field.

The switches are widely used to control a variety of machinery and equipment. For example, on the production line, this switch can be used to control the start and stop of the machine to automate production. In addition, the switch can also be used to control a variety of power tools and equipment, such as power screwdrivers and electric pumps. In addition to the field of industrial control, 12MM Waterproof Push Button Switch 12V is also widely used in home furnishing and business places.

In the home, this switch can be used to control a variety of electrical equipment, such as lights, TV, air conditioning, etc.

In commercial premises, this switch can be used to control a variety of equipment, such as display lights, billboards and lighting equipment.

In addition, 12MM Waterproof Push Button Switch 12V can also be widely used in a wide variety of different electronic products. For example, in sound equipment, such switch can be used to control volume adjustment and power switch. In digital cameras, this switch can be used to control the shutter and exposure, etc.

In conclusion, 12MM 12V Waterproof Push Button on off Switch is a very practical electrical component that is widely used in a variety of different application scenarios. Its advantages include small size, easy operation, affordable price and easy maintenance.

How to Wire A Waterproof Push Button Switch 12V ?

1NO2 pin momentary button switch:This push button switch has only two switch pins, one of which is C and one normally open contact (NO).

Wiring:

Connect the positive pole of the battery to the switch pin C, connect the NO to the positive pole of the device, and connect the negative pole of the battery to the negative pole of the device. as the picture shows.

• In normal state, the normally open contact (NO) of this push button switch is disconnected from other circuit components, and the device does not work.
• When the button is pressed, the normally open contact is closed, a path is formed, and the device starts to work.
• When the button is released, the normally open contact returns to the disconnected state, disconnecting the connection with other circuit components, and the device stops working.

12MM Waterproof Push Button Switch 12V Related Products：

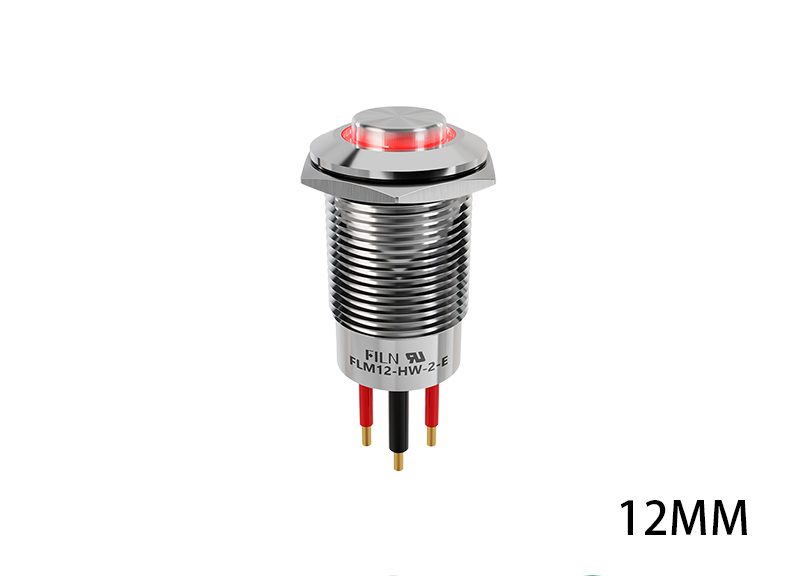

110V Push Button Switch Drawings

12MM 110V Push Button Switch Product Specifications:

110V Push Button Switch Related Products：

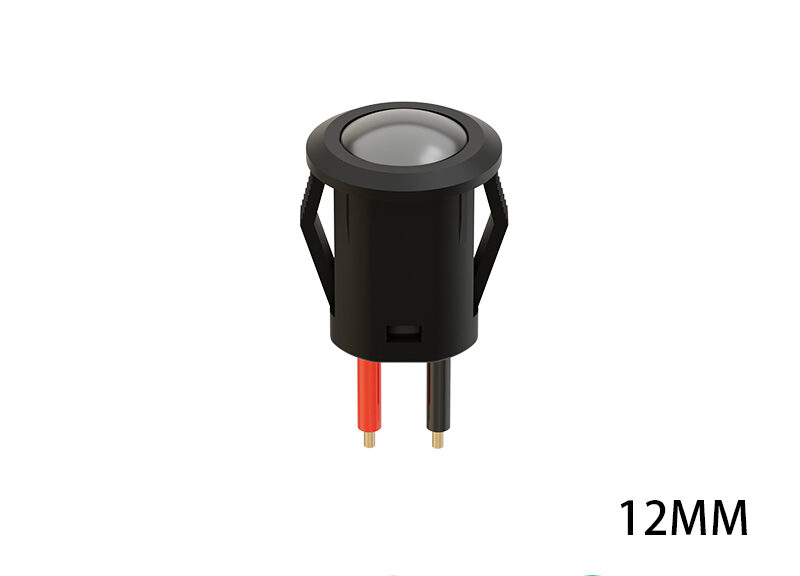

Plastic Push Button Switch Drawings

12MM Round Push Button Switch Features Introduction

FILN’s Innovative Button Switch Design

The 12MM plastic push button switch designed by FILN PUSH BUTTON SWITCH in 2020 is not only exquisitely crafted but also offers several innovative features:

1.Buckle Design Increases Production Efficiency

Traditional black push button switches mainly rely on nuts for installation, meaning a significant amount of time is needed for installation during large-scale production. FILN’s design, however, adopts a buckle method. Workers can simply press the plastic push button switch gently into the switch panel. This approach is straightforward and quick, significantly improving production efficiency and reducing labor costs.

2.Wired Design Saves Time on Soldering

The unique design of this 2 wire push button switch comes with pre-attached wires, eliminating the tedious process of soldering for the users. The wire can be directly attached to the 12MM button or connected to a terminal, offering true plug-and-play convenience.

3.Material and Production Advantages Offer Competitive Pricing

The push button switch comes at a relatively lower price. FILN’s design team chose plastic as the primary material. Coupled with the company’s automated production line, this substantially reduces the production cost, providing users with high-quality yet affordably priced products.

4. Rigorous Quality Certification Ensures User Safety

This 12mm plastic push button switch has passed both UL and CE certifications. Both these certifications are a powerful testament to the product’s quality and safety.

5.Conclusion

leveraging nearly 20 years of production experience and an unwavering commitment to innovation, FILN Push Button Switch has designed this practical and competitive 12MM plastic push button switch. Be it design, material selection, or production process, the company showcases its professionalism and dedication, making it a trustworthy and preferable choice for users.

12MM Small Push Button Switch Product Specifications:

12MM Plastic Push Button Switch Customization

Customizable Symbol Options with Light Indicators

The 12MM PLASTIC PUSH BUTTON SWITCH offers a variety of customizable symbols with integrated lighting solutions. Users can select the preferred symbols that best fit their requirements, making the switch more versatile and tailored to specific applications.

Versatile Terminal Connection Customization

The PLASTIC PUSH BUTTON SWITCH provides options for users to customize connections to various terminals. This flexibility allows for easier integration into different electronic setups, enhancing usability and adaptability.Whether it’s the choice of symbols with light indicators or the type of terminal connections, FILN ensures that users can get switches that perfectly match their needs.

12MM Plastic Push Button Switch Application Environment

12MM Plastic Push Button Switch is a common electrical component that is widely used in a variety of different application scenarios. Among them, one of the common application scenarios is the industrial control field.

Industrial Control Field：The switches are widely used to control a variety of machinery and equipment. For example, on the production line, this switch can be used to control the start and stop of the machine to automate production. In addition, the switch can also be used to control a variety of power tools and equipment, such as power screwdrivers and electric pumps.

In The Home：this switch can be used to control a variety of electrical equipment, such as lights, TV, air conditioning, etc.

In Commercial Premises：this switch can be used to control a variety of equipment, such as display lights, billboards and lighting equipment.

In Electronic Devices：12MM Plastic Push Button Switch can also be widely used in a wide variety of different electronic products. For example, in sound equipment, such switch can be used to control volume adjustment and power switch. In digital cameras, this switch can be used to control the shutter and exposure, etc.

In conclusion, 12MM Plastic Push Button Switch is a very practical electrical component that is widely used in a variety of different application scenarios. Its advantages include small size, easy operation, affordable price and easy maintenance.

How To Wire A 12MM Small Push Button Switch ?

1NO2 pin momentary button switch:This push button switch has only two switch pins, one of which is C and one normally open contact (NO).

Wiring:Connect the positive pole of the battery to the switch pin C, connect the NO to the positive pole of the device, and connect the negative pole of the battery to the negative pole of the device. as the picture shows.

• In normal state, the normally open contact (NO) of this push button switch is disconnected from other circuit components, and the device does not work.
• When the button is pressed, the normally open contact is closed, a path is formed, and the device starts to work.
• When the button is released, the normally open contact returns to the disconnected state, disconnecting the connection with other circuit components, and the device stops working.

12MM Small Push Button Switch Related Products：

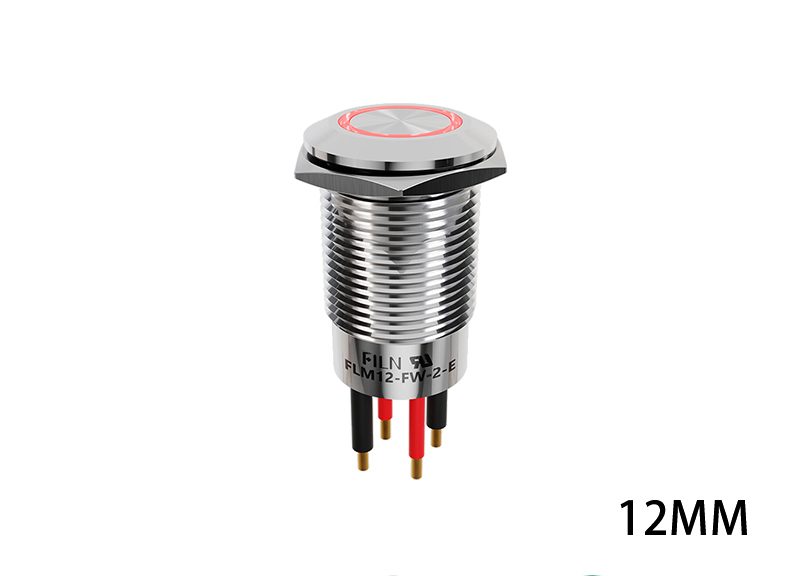

12MM Waterproof Push Button Switch Drawings

12MM Waterproof Push Button Switch Features Introduction—Outstanding Features of the 12mm Waterproof Push Button Switch

1.  Superior Waterproof Performance

Equipped with IP67 waterproof capabilities, the 12mm waterproof push button switch stands up to outdoor environments with ease. This rating ensures that the switch can be submerged in water up to 1 meter deep for 30 minutes without damage, guaranteeing reliability in various weather conditions.

2.  Durable Construction

This waterproof switch features a wire-out design, sealed with epoxy at the base, providing significant dust and water protection. Coupled with its robust structure, these features ensure long-term stable operation in diverse settings.

3.  Customization Flexibility

The 12mm mounting hole waterproof momentary push button offers various customization services. From size dimensions to functional requirements, we tailor to specific customer needs, meeting diverse application scenarios.

4.  No Minimum Order Quantity

For our waterproof push button switch momentary, we provide a highly flexible ordering policy with no minimum quantity. Customers can order any amount, whether for small-scale trials or large-volume purchases, with satisfactory service guaranteed.

5.  Personalized Color Customization

Understanding that clients have unique preferences for the color and style of their push button on-off waterproof switch, we offer color customization services. Clients can select their desired color, and we will customize accordingly, ensuring the product’s appearance perfectly matches your equipment or brand image.

6.  Conclusion：These features collectively reflect our unwavering commitment to product quality and customer service, aiming to provide the ultimate user experience.

12MM Waterproof Push Button Switch Product Specifications:

Customization Advantages of FILN Waterproof Push Button Switches

1.Premium Material Selection

The FILN waterproof push button switch factory is capable of customizing metal housings to meet customer demands. For coastal projects, corrosion-resistant 316L stainless steel is ideal, while for automation equipment, various other materials can be used.

2.Flexible Wiring Options

FILN’s waterproof push button switches with 12V rating offer customizable wiring solutions. Whether you need any length of wire or specific terminals, including 2.54 terminals or crimp terminals, our design can meet your unique requirements.

3.Diverse Design Choices

FILN can customize a wide range of housing styles, whether round or square, or any other specific design you require.

As a professional manufacturer of indicator lights and switches, FILN has 15 R&D staff members capable of customizing a variety of innovative switch products.

Conclusion：FILN is dedicated to providing tailored solutions that not only meet your technical requirements but also ensure product quality and durability. Our goal is to serve customers globally, ensuring each one can find the ideal switch solution. Through professional design and precise manufacturing, FILN’s customized services represent our deep understanding and support for customer needs.

12MM Waterproof Push Button Switch Application Environment

12MM Waterproof Push Button Switch is commonly applied in a variety of different environments, most commonly in industrial and outdoor locations.

In Industrial Environments, buttons with high durability and reliability are required for machines and equipment. The waterproof button can maintain a stable function in harsh environmental conditions, preventing moisture and dust from entering the button inside, thus ensuring the proper operation of the machine and equipment.

In Outdoor Places, such as swimming pools, aquariums, parks, etc., waterproof buttons can also play an important role. These places often encounter a lot of moisture and moist air, thus requiring the use of waterproof buttons to avoid equipment damage and safety accidents. For example, in the swimming pool, the waterproof button can be installed in the waterproof box, so that the user can easily control the water pump, lighting and other equipment, while avoiding the entry of water.

Variety of different electronic devices: such as mobile phones, tablets, digital cameras, etc. These devices often require the use of buttons with high sensitivity and durability to provide a better user experience and device reliability. The waterproof button is designed to prevent moisture from entering the device, thus protecting the internal circuits and components from damage.

How To Wire A 12MM Waterproof Push Button Switch ?

first of all we need to know that the 12mm waterproof push button switch product has 4 pins. In which the red line (C) closest to the power supply and the black line (NO) far from the power supply are the switch pins, the other two red lines and black lines are light pins, the light pins are regardless of positive pole or negative pole.–There are two types of wiring, see the picture below.

What’s the first way for the button connection ？

1.The positive pole of the power supply is connected to the switch C pin red wire and the LED lamp pin red wire (+) , and the other NO pin black wire is connected to the positive pole of the bulb device.

2.Connect the negative pole of the power supply to the negative pole of the bulb deviceand the LED lamp pin black wire(-).

12mm waterproof push button switch  function:

The  waterproof push button switch is locked and the bulb device starts.

The  waterproof push button switch is reset, the bulb device is turned off and the light is always on.

What’s the second way for the button connection ？

1.The positive pole of the power supply is connected to the C pin red wire of the switch,and the other NO pin black wire is connected to the LED light pin red wire (+) and the positive pole of the bulb device.

2.Connect the negative pole ofthe powersupply to the negative pole of the bulb device and the LED lamp pin black wire (-).

12mm waterproof push button switch function:

The  waterproof push button switch is locked and the light is on, and the bulb device starts.

The  waterproof push button switch reset light is off, and the bulb device is turned off.

12MM Waterproof Push Button Switch Related Products：

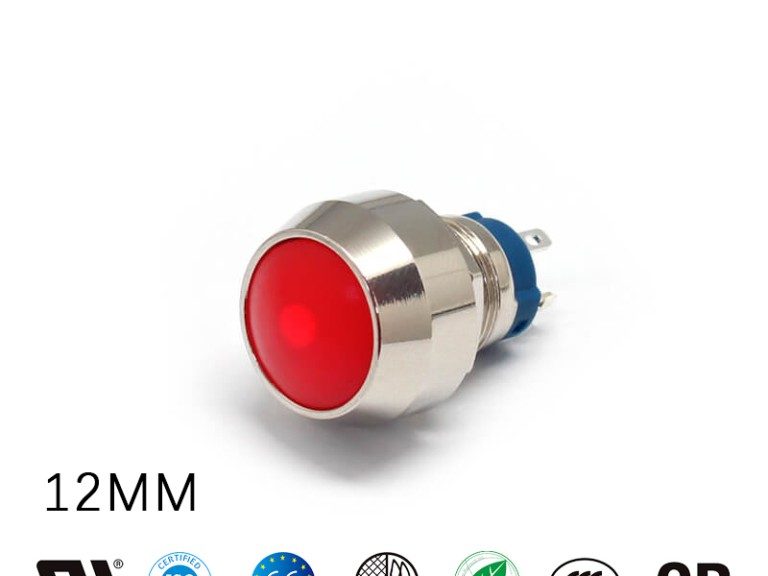

12MM Small Push Button Led Lights Drawings

12MM Small Push Button Led Lights Product Specifications:

 Related Products：

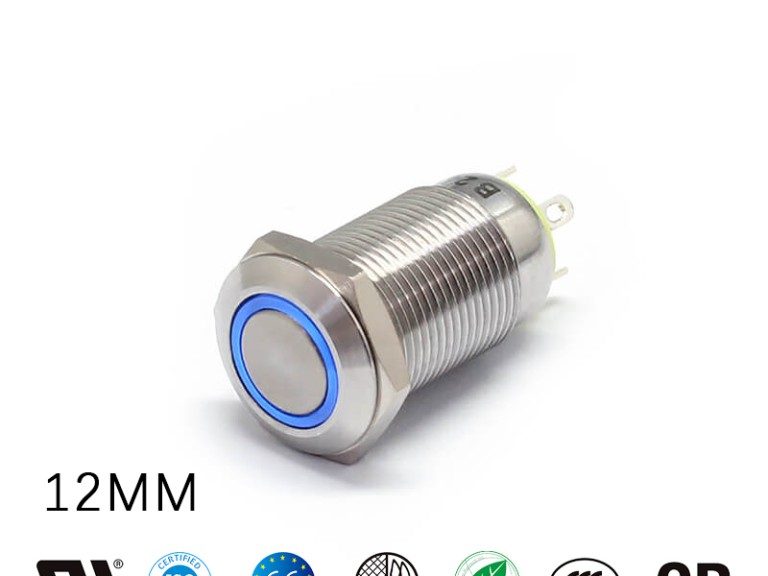

12MM Small Button Switch Drawings

12MM Small Button Switch Product Specifications:

 Related Products：

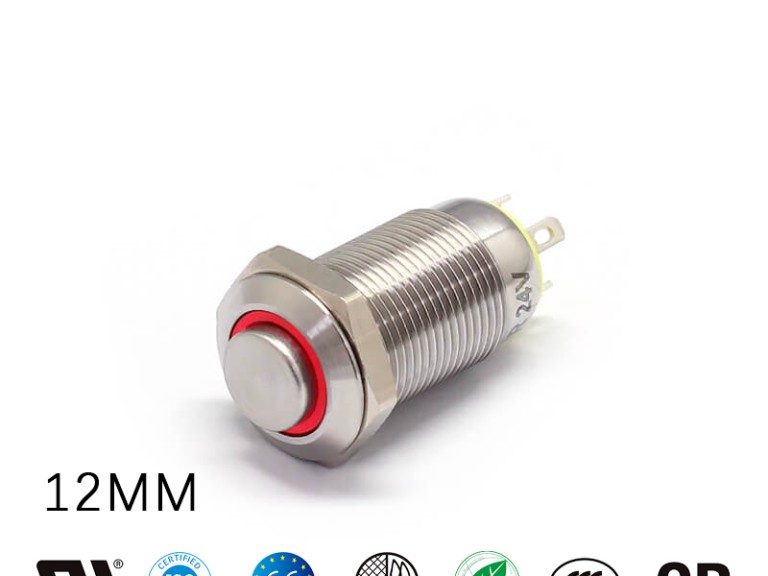

12MM Push Button Switch 12v Drawings

12MM Push Button Switch 12v Specifications:

 Related Products：

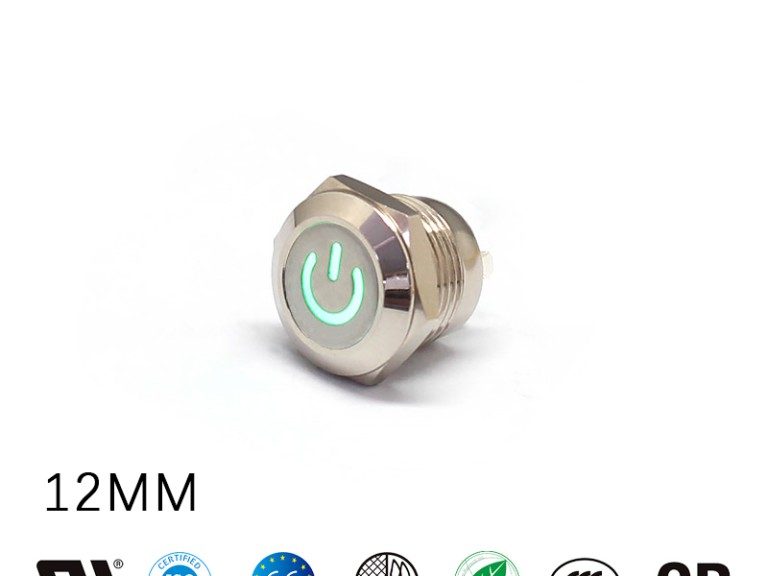

12MM illuminated Push Buttons Drawings

12MM illuminated Push Buttons Specifications:

 Related Products：

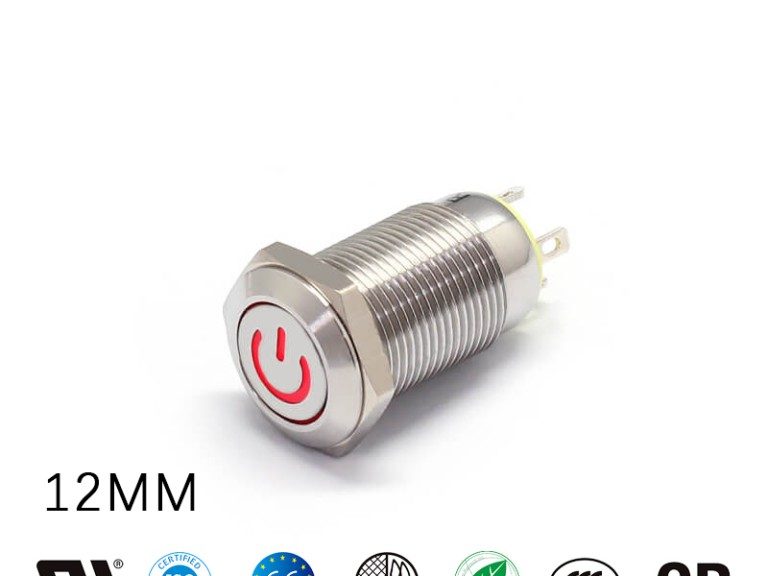

12MM 24V Momentary Switch Drawings

24V Momentary Switch Specifications:

 Related Products：

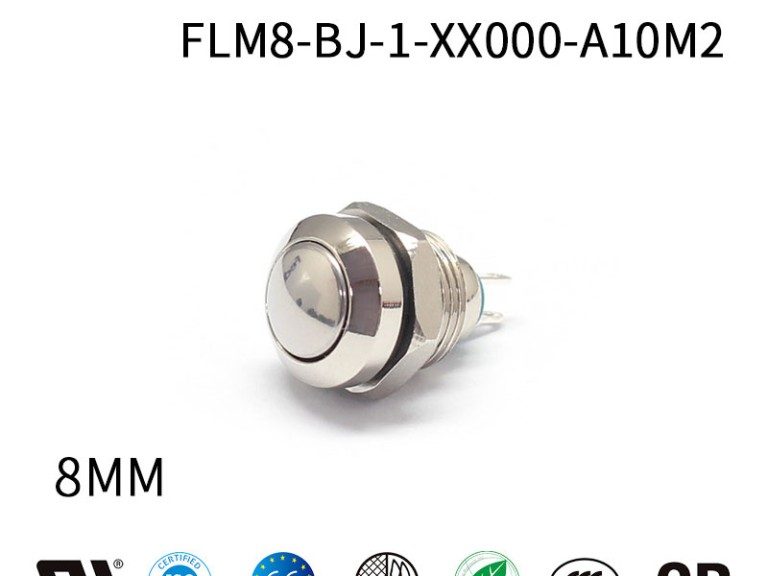

8MM Miniature Push Button Switch Product Drawings:

8MM Miniature Push Button Switch Product Specifications:

 Related Products：

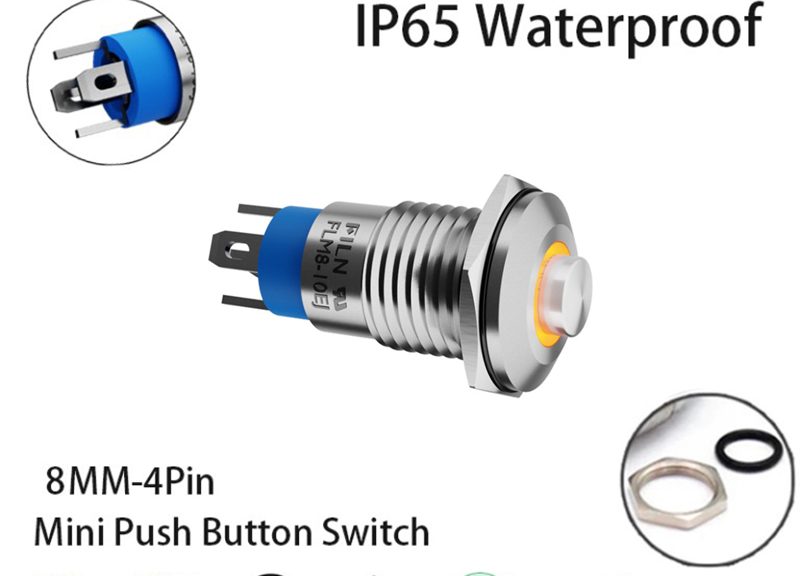

8MM Mini Push Button Switch Product Drawings:

8MM Mini Push Button Switch Introduction

8MM Mini Push Button Switch: A Streamlined Component for Effective Functionality

1.Easy Installation with the 8mm Mini Push Button Switch

The 8mm Mini Push Button Switch is a compact switch featuring an 8mm mounting hole diameter for easy integration into various devices. This product, known as the 8mm Mini Push Button Switch, is favored for its petite size.

2.Self-Reset Functionality of the Mini Switch

This Mini Switch has a self-reset function, which is a momentary triggering mechanism: it powers on when pressed and turns off immediately upon release. Known as the Mini Momentary Push Button Switch, it is ideal for situations that require a brief signal or action.

3.Customizable Locking Feature for the 8mm Push Button Switch

While the standard 8mm Push Button Switch is designed without a locking feature, FILN offers customization for versions with a lock. Simply contact FILN with your specifications, such as the need for a Mini On Off Push Button Switch, and FILN’s professional team will tailor a solution for you.

4.Colorful Options: 12v Mini Push Button Switch

FILN’s 12v Mini Push Button Switch is available in various colors, including red, green, yellow, blue, and white, to meet different visual and functional requirements, enhancing the aesthetic and intuitiveness of devices.

5.Difference Between Mini Push Button Switch 2 Pin and 4 Pin

The Mini Push Button Switch with 2 pins is designed without a light indicator. If your application requires a light for increased visibility during operation, you might need to consider a 4 Pin illuminated button switch. FILN offers both types of switches to match different application scenarios.

FILN specializes in manufacturing all kinds of switches, with each product undergoing rigorous testing to ensure quality and safety. From the detailed design of the Mini Push Button Switch to global after-sales service, FILN is committed to providing high-quality and reliable switch solutions to enterprises worldwide. Contact FILN to explore more possibilities together.

8MM Mini Push Button Switch Product Specifications:

Customization Options For 8MM Mini Push Button Switch

• 1.  Illuminated Mini Push Button Switch 4 Pin Customization Services

The Mini Push Button Switch with 4 pins features an illumination function suitable for various devices that require indicator signals. FILN can customize the length of the wires and the size of the terminals according to customer needs. Clients need only provide the required specifications, and FILN will produce according to these demands, meeting personalized wiring and installation needs. This customization service ensures that the switch can be perfectly adapted to specific customer device environments, whether installed in control panels, machinery, or portable devices, allowing for efficient integration.

• 2.  Custom Options for Mini Momentary Push Button Switch

The Mini Momentary Push Button Switch, which comes with a reset function, is suitable for situations that call for temporary operation，such as the reset machine safety device or game controller. There are two choices of button start and closing mode: instantaneous reset and locking.In addition, FILN also offers customization services for an ON OFF MINI PUSH BUTTON SWITCH to fulfill the requirements of devices that need a maintained function. Whether it is instantaneous operation or continuous power supply needs, we can meet and provide better service for customers,FILN’s customized solutions ensure that the switches perfectly fit the customer’s usage scenarios.

• 3.  Diverse Choices in 12V Mini Push Button Switch Casing Materials

The casing materials for the 8mm Push Button Switch can be customized according to different customer needs, including options like brass, stainless steel, and zinc alloy. Brass is known for its excellent conductivity and corrosion resistance, making it suitable for high electrical performance environments. Stainless steel, durable and aesthetically pleasing, is ideal for applications requiring longevity and minimal maintenance. Zinc alloy is favored in certain industries for its high hardness and cost-effectiveness. FILN offers a wide range of choices that ensure the product meets customer functional needs and their expectations for the look and texture of the product.

Through these personalized customization services, FILN further solidifies its position in the market as a switch manufacturer, showcasing its deep understanding and ability to meet customer needs. From material selection to functional customization, FILN is dedicated to providing comprehensive solutions to help customers achieve optimal performance and outcomes for their products.

How To Wire A 8MM Mini Push Button Switch  ?

What’s the first way Mini Switch connect?

1.The positive pole of the power supply is connected to the switch C pin red wire and the LED lamp pin red wire (+) , and the other NO pin black wire is connected to the positive pole of the bulb device.

2.Connect the negative pole of the power supply to the negative pole of the bulb deviceand the LED lamp pin black wire(-).

Mini Push Button Switch function:

The Mini Push Button Switch is locked and the bulb device starts.

The Mini Push Button Switch is reset, the bulb device is turned off and the light is always on.

What’s the second way for the Mini Switch connection ？

1.The positive pole of the power supply is connected to the C pin red wire of the switch,and the other NO pin black wire is connected to the LED light pin red wire (+) and the positive pole of the bulb device.

2.Connect the negative pole ofthe powersupply to the negative pole of the bulb device and the LED lamp pin black wire (-).

Mini Push Button Switch function:

The Mini Push Button Switch is locked and the light is on, and the bulb device starts.

The Mini Push Button Switch reset light is off, and the bulb device is turned off.

8MM Mini Push Button Switch Application Environment

The 8MM Mini Push Button Switch is designed for use in various environments, from industrial systems to household appliances. It is characterized by its small size, simple structure, and stable performance.

The 8MM Mini Push Button Switch is perfect for use in a variety of devices and systems, including but not limited to:

1.Industrial equipment: The switch can be used to control the operation of various industrial equipment, such as conveyors, robots, and assembly lines.

2.Automotive systems: The switch can be used to control various automotive systems, such as the air conditioning, radio, or windshield wipers.

3.Home appliances: The switch can be used in household appliances such as air purifiers, coffee makers, or microwave ovens.

4.Medical equipment: The switch can be used in various medical devices, such as ventilators, monitors, or infusion pumps.
