FILN 22MM High Amp Push Button Switch

22MM High Amp Push Button Switch Drawing:

High amperage push button switch Drawings

 Push Button Switch  New products

22MM High Amp Push Button Switch Product Specifications:

Production Series FLM22-HW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 10A Light Source LED
Rated Power 2200W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM High Amp Push Button Switch Related Products：

How to connect more types of pushbutton switches?

FILN 22MM Push Button Power Switch

22MM Push Button Power Switch Drawing:

Power control button switch Drawings

 Push Button Switch  New products

22MM Push Button Power Switch Product Specifications:

Production Series FLM22-FW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 10A Light Source LED
Rated Power 2200W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM Push Button Power Switch Related Products：

How to connect more types of pushbutton switches?

FILN 22MM High Voltage Push Button Switch

22MM High Voltage Push Button Switch Drawing:

Elevated voltage push switch Drawings

 Push Button Switch  New products

22MM High Voltage Push Button Switch Product Specifications:

Production Series FLM22-HW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 10A Light Source LED
Rated Power 2200W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM High Voltage Push Button Switch Related Products：

How to connect more types of pushbutton switches?

FILN 22MM Flat Style Push Button Momentary Switch

22MM Flat Style Push Button Momentary Switch Drawing:

Low profile momentary switch Drawings

 Push Button Switch  New products

22MM Flat Style Push Button Momentary Switch Product Specifications:

Production Series FLM22-FW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 10A Light Source LED
Rated Power 2200W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM Flat Style Push Button Momentary Switch Related Products：

How to connect more types of pushbutton switches?

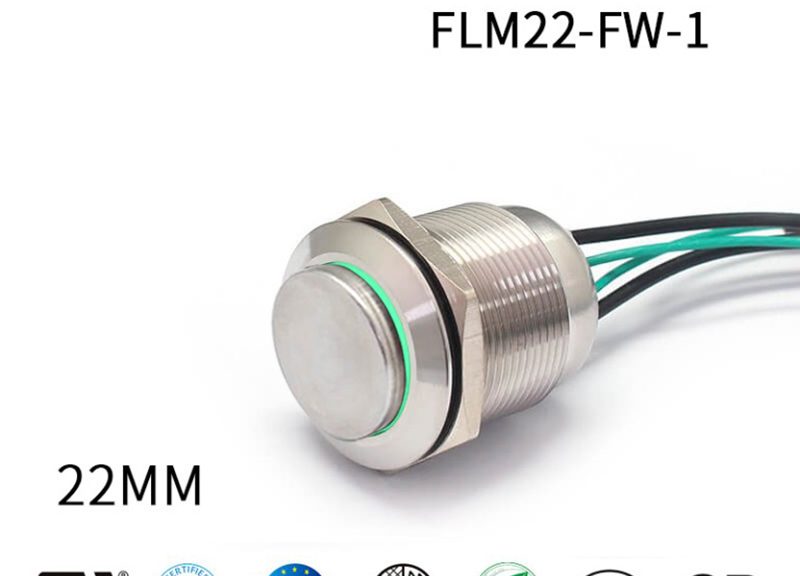

FILN 22MM Green Momentary Push Button Switch

22MM Green Momentary Push Button Switch Drawing:

Momentary switch with green button Drawings

 Push Button Switch  New products

22MM Green Momentary Push Button Switch Product Specifications:

Production Series FLM22-HW-1 Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 220V(AC) Housing PA66+GF20% nylon
Rated Current 10A Light Source LED
Rated Power 2200W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM Green Momentary Push Button Switch Related Products：

How to connect more types of pushbutton switches?

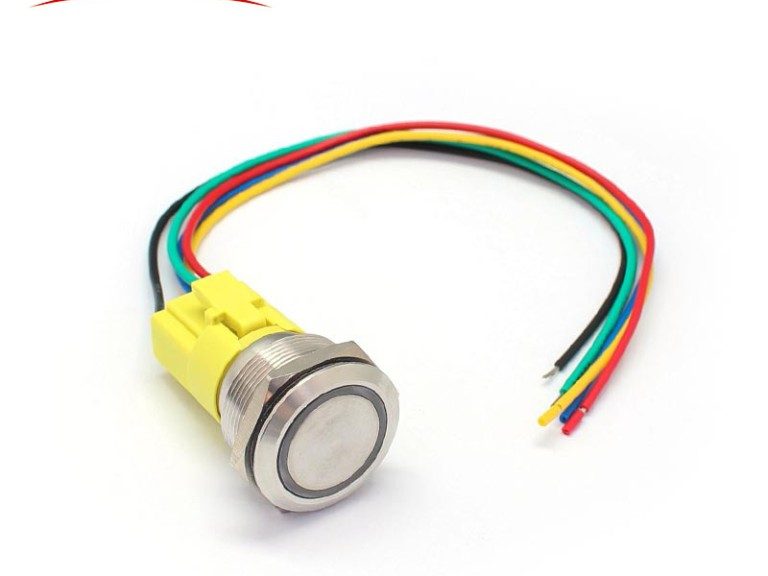

FILN Button Switch Harness 22MM Wire Connector Wiring Switches

22MM Push Button Switch Harness Drawing:

Button Switch Harness Drawing

The 22MM push button switch is suitable for most equipment, you only need to make an opening between 22-23MM on the mounting panel, and use a nut to fix the pushbutton switch on the panel.

 Push Button Switch  New products

22MM Button Switch Harness Product Specifications:

Production Series 22MM Button Switch Harness Light Guide Button
Button Shape round Actuator 304 Stainless steel
Button  Color Yellow Housing Sleeve H59 nickel plated brass/304Stainless stee
Mechanical Life 500,000 times Button Pin H62 Copper alloy
Electrical Life 200,000 times Rubber Ring SIL silica gel
Protection Level IP67 IK10 Nut H59 nickel plated brass
Rated Voltage 1.5V-250VAC/DC Housing PA66+GF20% nylon
Rated Current 3mA~20A Light Source
Rated Power 36W（DC）125W（AC） Resistor
Operating Temperature -30℃~+80℃ Ccontact AgCdO12

22MM Button Switch Harness Related Products：

How to connect more types of pushbutton switches?

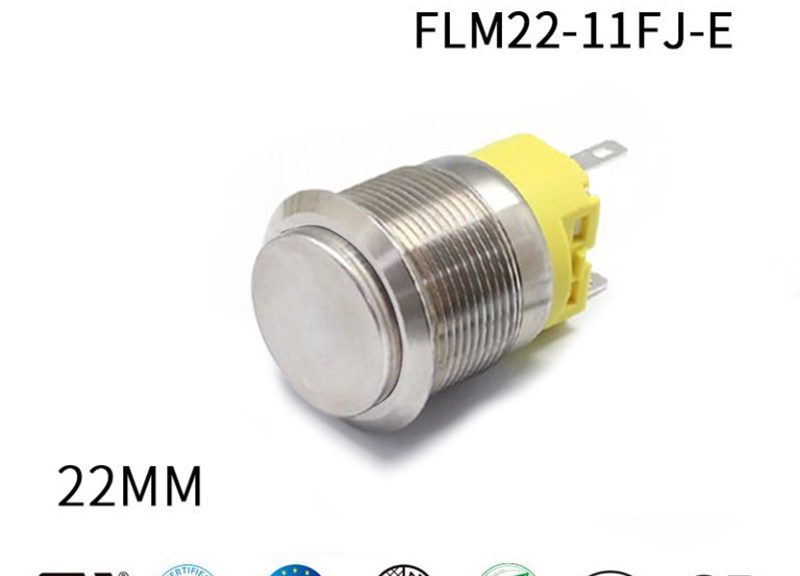

FILN Metal 22MM Normally Closed Push Button Switches 2pin

22MM Normally Closed Push Button Switch Drawing:

NC push button switch

 Push Button Switch  New products

22MM Normally Closed Push Button Switch Product Specifications:

Production Series FLM22-10HJZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM Normally Closed Push Button Switch Related Products：

How to connect more types of pushbutton switches?

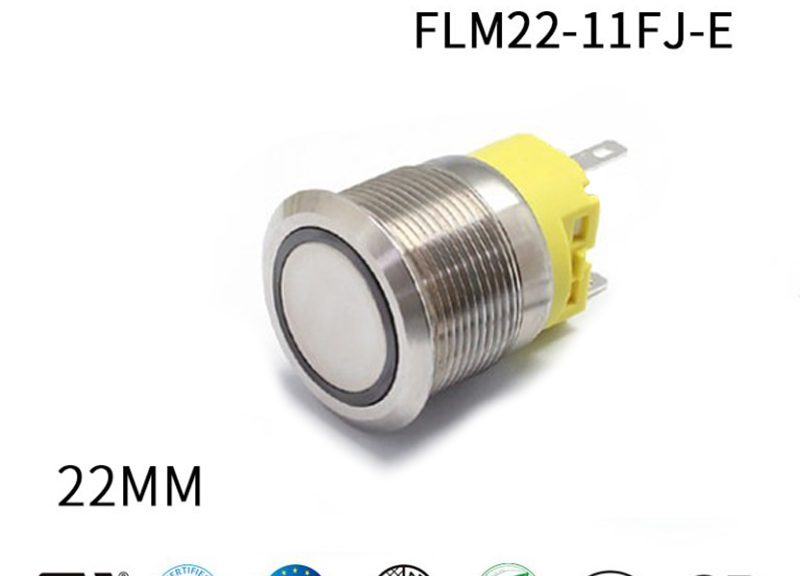

FILN Momentary On Push Button Switches Customizable 22MM Metal Switches

22MM Momentary On Push Button Switch Drawing:

Temporary on push switch Drawings

 Push Button Switch  New products

22MM Momentary On Push Button Switch Product Specifications:

Production Series FLM22-10FJZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM Momentary On Push Button Switch Related Products：

How to connect more types of pushbutton switches?

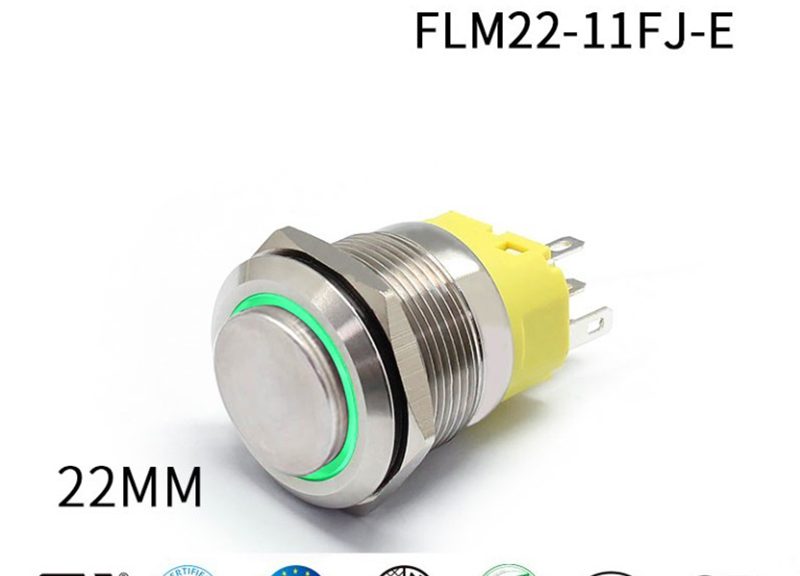

FILM Push Buttons Switches Tall Round Buttons 4PIN Can Use Button Connector

22MM Push Buttons Switches Drawing:

Push buttons and switches Drawing

 Push Button Switch  New products

22MM Push Buttons Switches Product Specifications:

Production Series FLM22-10FHZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM Push Buttons Switches Related Products：

How to connect more types of pushbutton switches?

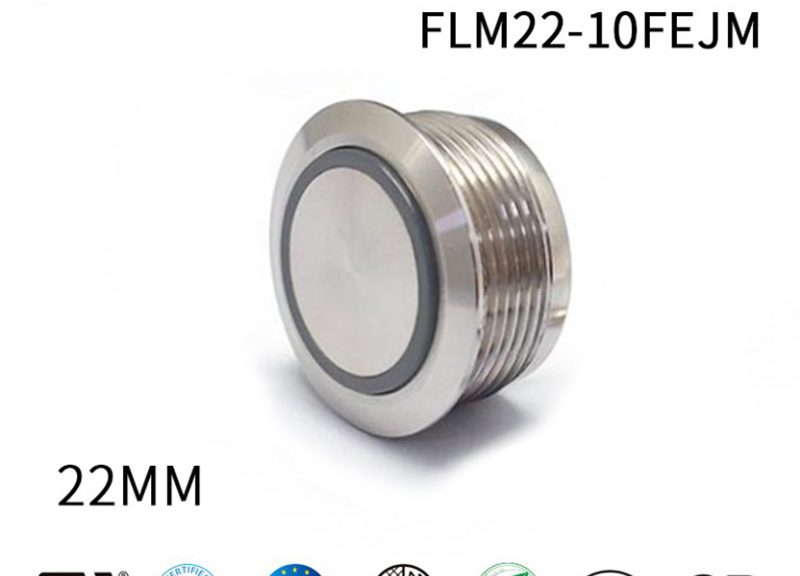

FILN Control Panel Push Button Switch Full Range of Metal Buttons

22MM Control Panel Push Button Switch Drawing:

Panel mounted push button switch Drawings

 Push Button Switch  New products

Click to Buy Now

22MM Control Panel Push Button Switch Product Specifications:

Production Series FLM22-10FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC）250V(AC) Housing PA66+GF20% nylon
Rated Current 1A（DC）5A(AC) Light Source LED
rated Power 180W（DC）1250W(AC) Resistor Metal film
Operating temperature -25℃~+85℃ Contact AgCdO12

22MM Control Panel Push Button Switch Related Products：

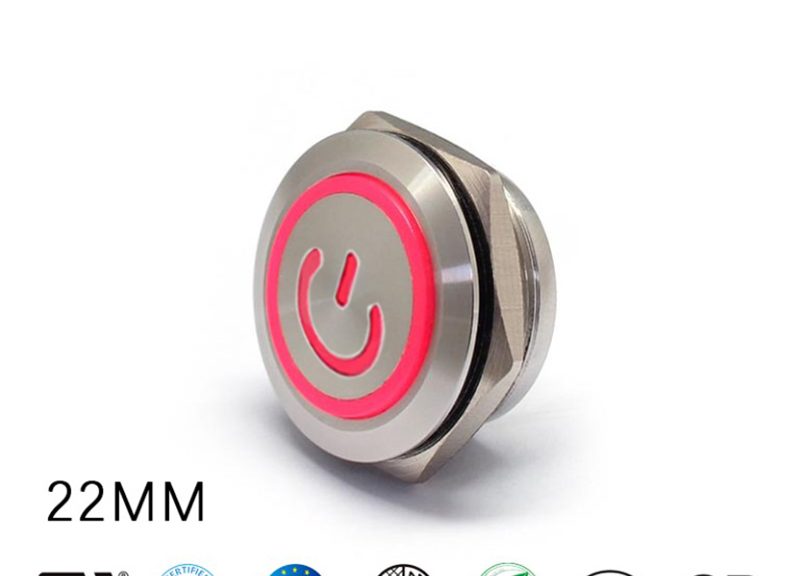

FILN Flat Push Button Switch Ultra-Thin Metal Switch with Power Symbol 4PIN

22MM Flat Push Button Switch Drawing:

Low profile button switch Drawings

 Push Button Switch  New products

Click to Buy Now

22MM Flat Push Button Switch Product Specifications:

Production Series FLM22-10FEJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK08 Nut H59 nickel plated brass
Rated Voltage 36V（DC）250V(AC) Housing PA66+GF20% nylon
Rated Current 1A（DC）5A(AC) Light Source LED
rated Power 180W（DC）1250W(AC) Resistor Metal film
Operating temperature -25℃~+85℃ Contact AgCdO12

22MM Flat Push Button Switch Related Products：

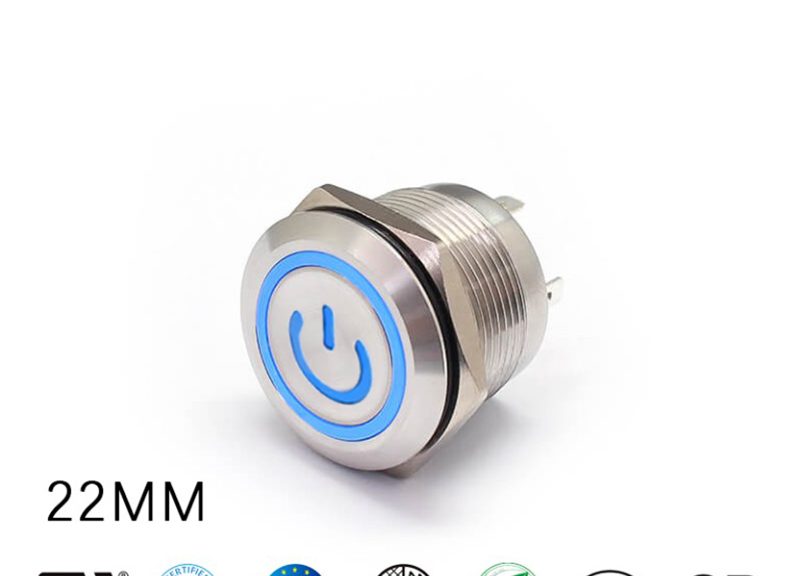

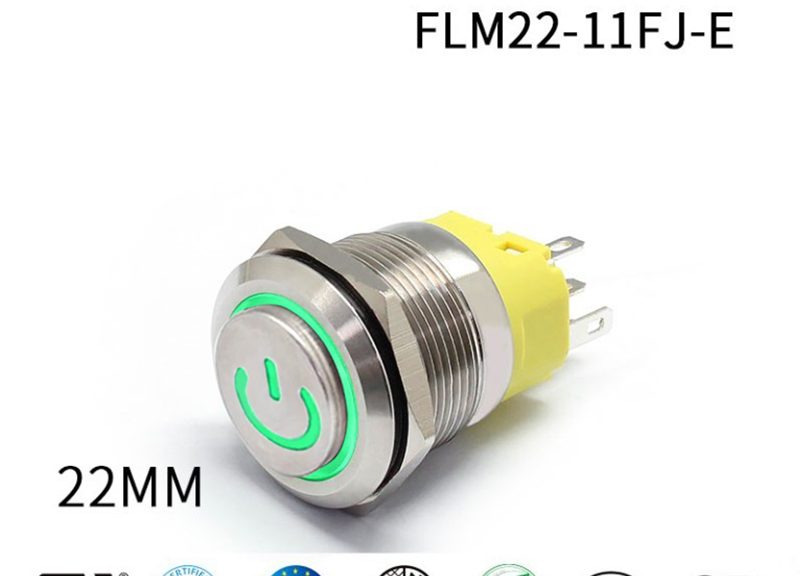

FILN 12v Push Button Switch Momentary Power Symbol Five-Color Button Switch 4PIN

22MM 12V Push Button Switch Momentary Drawing:

12V momentary push button switch Drawings

 Push Button Switch  New products

Click to Buy Now

22MM 12V Push Button Switch Momentary Specifications:

Production Series FLM22-10FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP68 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM 12V Push Button Switch Momentary Related Products：

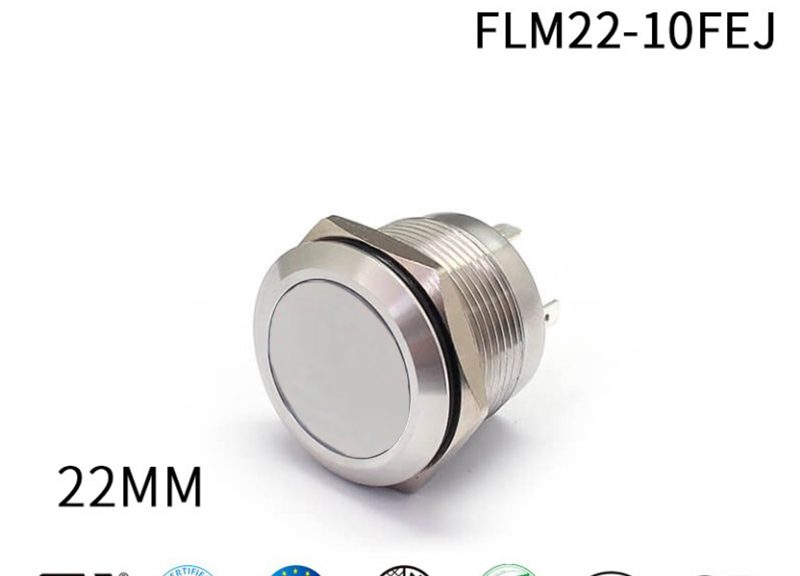

FILN 22MM Latching Push Button Switch Unlit Push Button Switch 2PIN Switch

22MM Latching Push Button Switch Drawing:

22mm lockable push button switch Drawings

 Push Button Switch  New products

Click to Buy Now

22MM Latching Push Button Switch Specifications:

Production Series FLM22-10FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP68 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM Latching Push Button Switch Related Products：

FILN 12v Illuminated Push Button Switch high head ring power symbol 4PIN 6V-220V

22MM 12v Illuminated Push Button Switch Product Drawings:

12 volt illuminated push button switch Drawing
More Push Button Switch

22MM 12v Illuminated Push Button Switch Product Specifications:

Production Series FLM22-10HJZ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250V（AC） Housing PA66+GF20% nylon
Rated Current 1A（DC）0.5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

22MM 12v Illuminated Push Button Switch Related Products：
