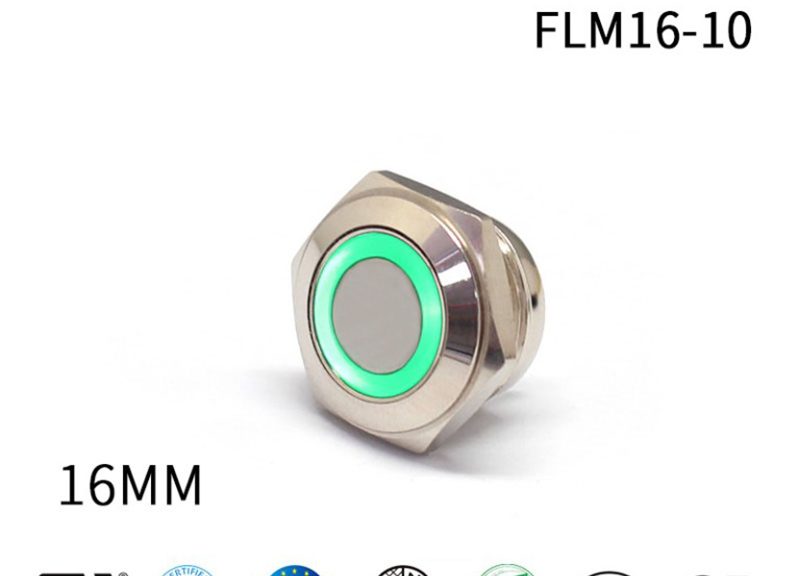

FILN 16MM Push Button on off Switch 12V: 4-Pin, Flat Head, Round Ring Lamp Circle

16MM Push Button on off Switch 12V Product Drawings:

12 volt push button switch Drawing
 Push Button Switch  New products

16MM Push Button on off Switch 12V Product Specifications:

Production Series FLM16-10 Light Guide Button PC plastic
 Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Blue, Green, Yellow, White, Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC Light Source LED button switch
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Push Button on off Switch 12V Related Products：

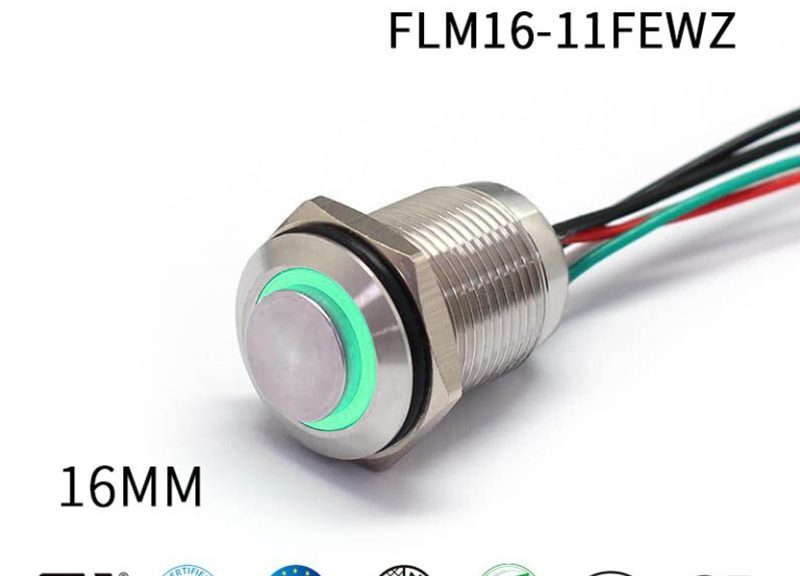

FILN 16MM Button Momentary Switch Tricolor Switch 6pin Waterproof

16MM Button Momentary Switch Product Drawings:

Button Momentary Switch Drawings
 Push Button Switch  New products

16MM Button Momentary Switch Product Specifications:

Production Series FLM16-11HEWZ Light guide button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button LED Color Red, Green, White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM Button Momentary Switch Related Products：

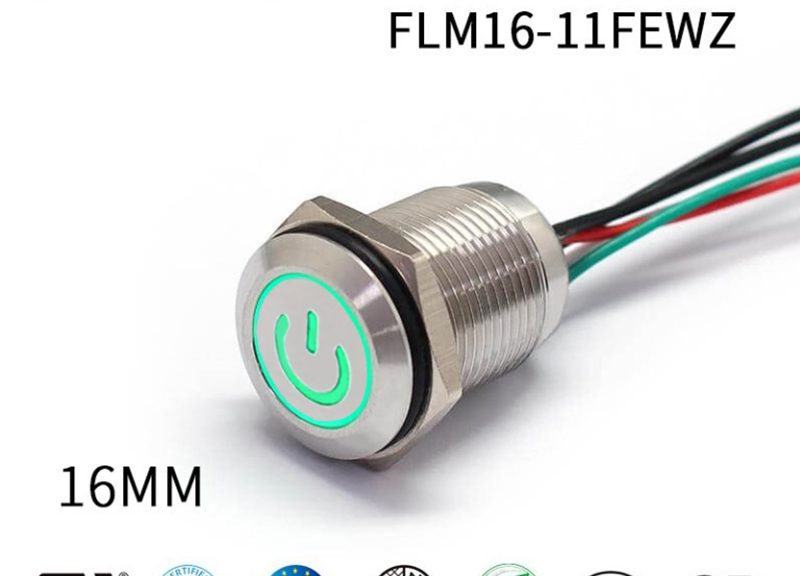

FILN No Nc Momentary Push Button Switch Three-Color Red, Green and Blue Waterproof Push Button Switch

16MM No Nc Momentary Push Button Switch Product Drawings:

NO NC momentary push button switch Drawings
 Push Button Switch  New products

16MM No Nc Momentary Push Button Switch Product Specifications:

Production Series FLM16-11FEWZ Light guide button PC Plastic
Button Shape Round Actuator 304 Stainless Steel
Button LED Color Red blue orange green white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin 22AWG PVC wire(0.3MM2)
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED
Rated Power 36W（DC）125W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

16MM No Nc Momentary Push Button Switch Related Products：

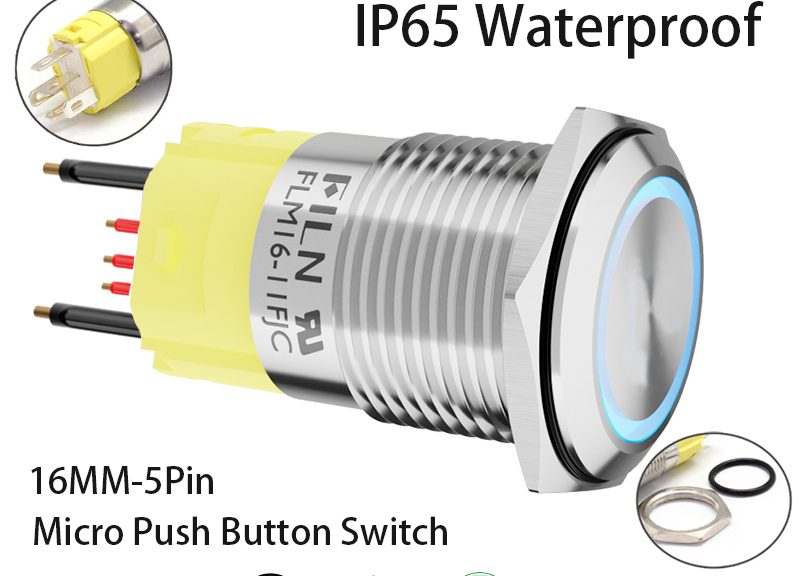

FILN 16MM Electric Push Button Switch– 5PIN Illuminated Push Buttons,Has Wires,5 Dazzling LED Colors for Enhanced Control

16MM Electric Push Button Switch Product Drawings:

Momentary switch Drawings

16MM Electric Push Button Switch Product Specifications:

Production Series FLM16-11FJC Light Guide Button PC plastic
 Button Shape round Actuator 304 Stainless steel
Button LED Color Red, Blue, Green, Yellow, White Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP65 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 5A（DC）5A（AC） Light Source LED button switch
Rated Power 180W（DC）1250W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

Electric Push Button Switch Related Products：

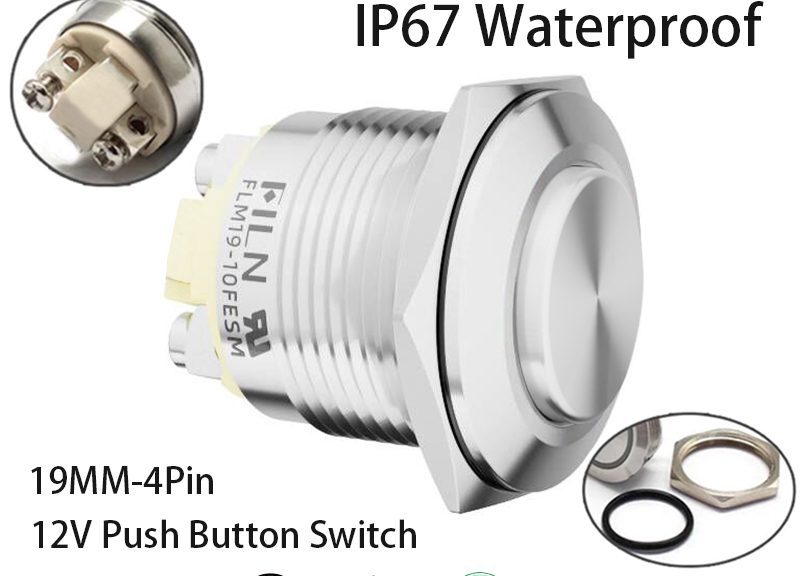

FILN: Premium Push Button Latching Switch Manufacturer – Customize Your 2PIN, 19MM Screw Terminal Metal Switch

19MM Push Button Latching Switch Product Drawings:

Latching push button switch Drawings
More Push Button Switch

19MM Push Button Latching Switch Product Specifications:

Production Series FLM19-10HESM Light Guide Button PC plastic
Button Shape round Actuator Zinc Alloy, Stainless Steel, Brass
Button LED Color Housing Sleeve Zinc Alloy, Stainless Steel, Brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

19MM Push Button Latching Switch Related Products：

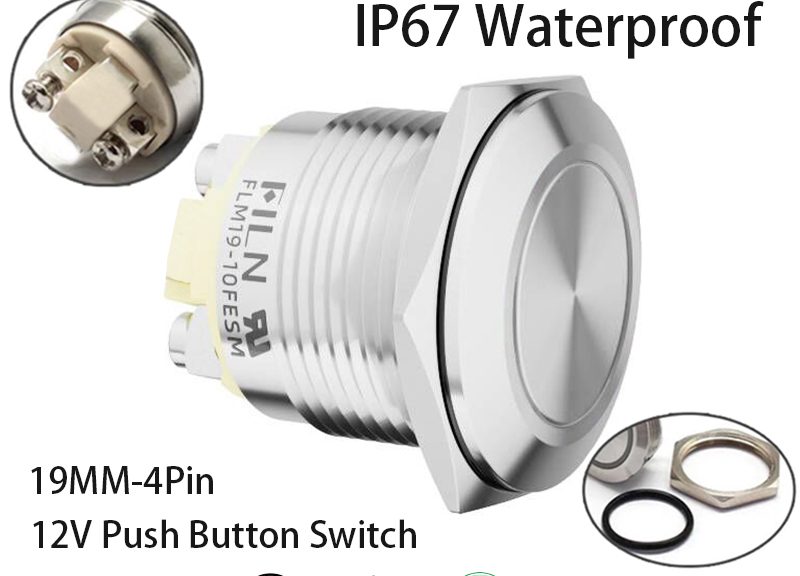

FILN Panel Mount Push Button Switch: Customizable, Certified, and Versatile

19MM Panel Mount Push Button Switch Product Drawings:

Mounted push button switch Drawings
More Push Button Switch

19MM Panel Mount Push Button Switch Product Specifications:

Production Series FLM19-10FESM Light Guide Button PC plastic
Button Shape round Actuator Zinc Alloy, Stainless Steel, Brass
Button LED Color Housing Sleeve Zinc Alloy, Stainless Steel, Brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

19MM Panel Mount Push Button Switch Related Products：

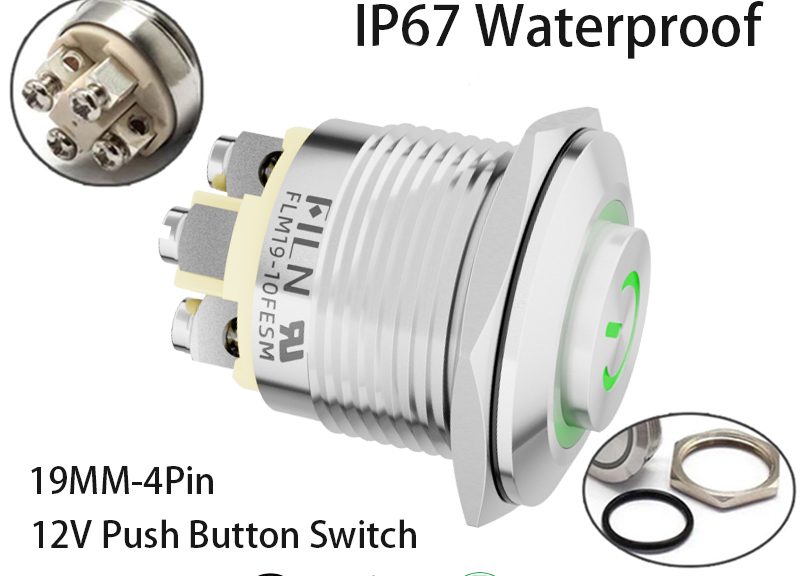

FILN High-Head 4PIN 19MM Metal Push On Push Off Button Switch with Power Symbol

19MM Push On Push Off Button Switch Product Drawings:

Flip flop button switch Drawings
More Push Button Switch

19MM Push On Push Off Button Switch Product Specifications:

Production Series FLM19-10HESM Light Guide Button PC plastic
Button Shape round Actuator Zinc Alloy, Stainless Steel, Brass
Button LED Color Red, Blue, Green, Yellow, White, Bicolor, tricolor Housing Sleeve Zinc Alloy, Stainless Steel, Brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

19MM Push On Push Off Button Switch Related Products：

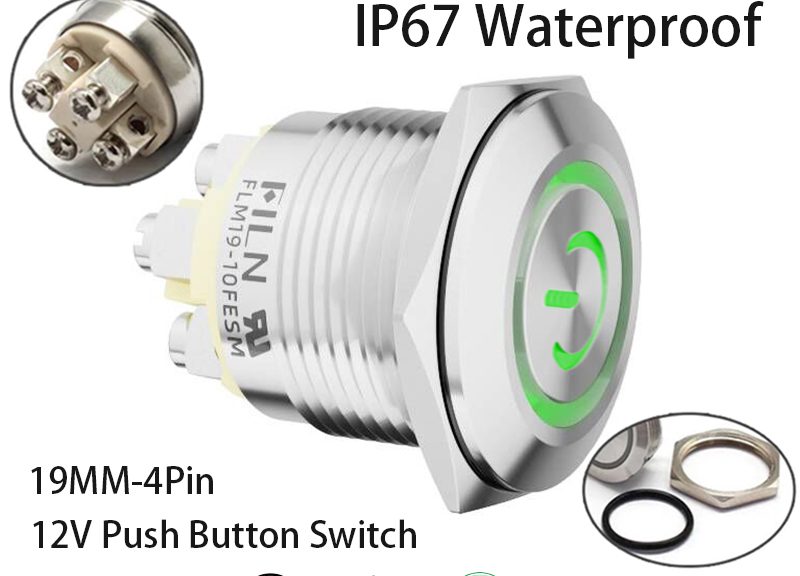

FILN Screw Foot Push Button Switches with 4PIN, 19MM Mounting Hole, and Versatile Voltage Options

19MM Screw Foot Push Button Switches Product Drawings:

Push button with screw base Drawings
More Push Button Switch

19MM Screw Foot Push Button Switches Product Specifications:

Production Series FLM19-10FESM Light Guide Button PC plastic
Button Shape round Actuator Zinc Alloy, Stainless Steel, Brass
Button LED Color Red, Blue, Green, Yellow, White, Bicolor, tricolor Housing Sleeve Zinc Alloy, Stainless Steel, Brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

19MM Screw Foot Push Button Switches Related Products：

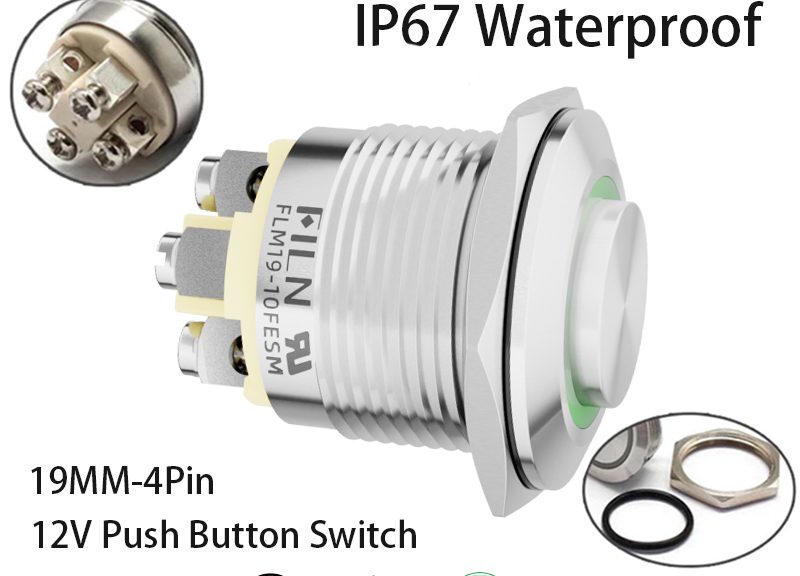

FILN – Customizable Black Push Button Switches with Ring Light | Certified Variants

Black Push Button Switches Product Drawings:

Push button switch in black Drawings
More Push Button Switch

19MM Black Push Button Switches Product Specifications:

Production Series  FLM19-10HESM Light Guide Button PC plastic
Button Shape round Actuator Zinc Alloy, Stainless Steel, Brass
Button LED Color Red, Blue, Green, Yellow, White, Bicolor, tricolor Housing Sleeve Zinc Alloy, Stainless Steel, Brass
Mechanical Life The 500 thousand time Button Pin H62 Copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 push button switch Nut H59 nickel plated brass
Rated Voltage 12V（DC） 250（AC）switch Housing PA66+GF20% nylon
Rated Current 20A（DC）20A（AC）button switch Light Source LED button switch
Rated Power 12v 110v（DC）3000W（AC） Resistor Metal film
Operating Temperature -40℃~+85℃ Contact AgCdO12

19MM Black Push Button Switches Related Products：

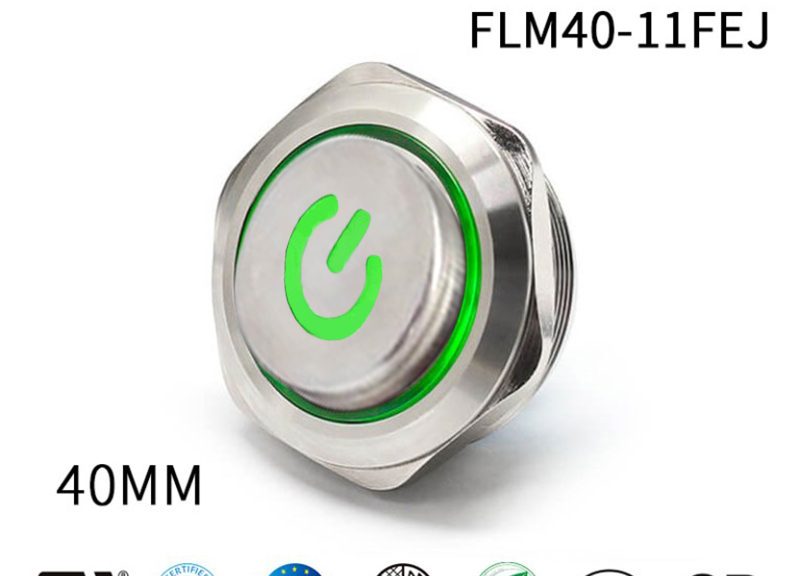

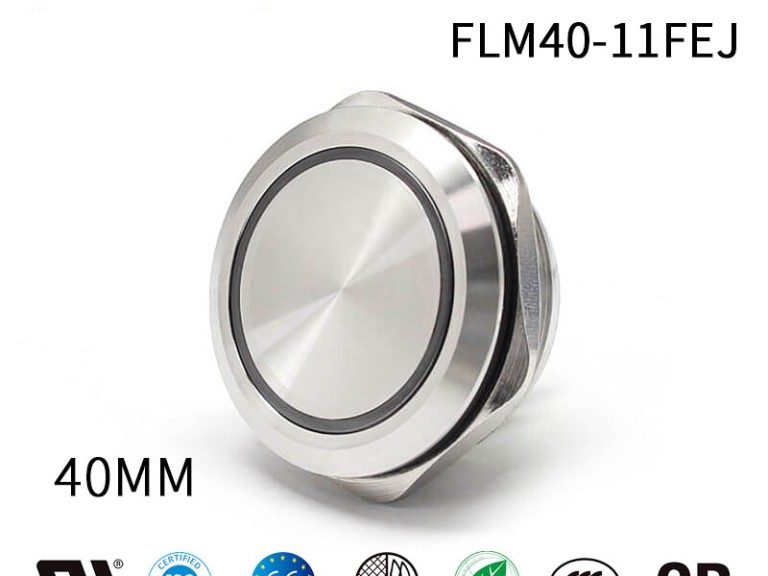

FILN 40MM Large Push Button Momentary Switch

40MM Large Push Button Momentary Switch Drawing:

Large momentary push button switch Drawings

 Push Button Switch  New products

40MM Large Push Button Momentary Switch Product Specifications:

Production Series FLM40-11HEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

40MM Large Push Button Momentary Switch Related Products：

How to connect more types of pushbutton switches?

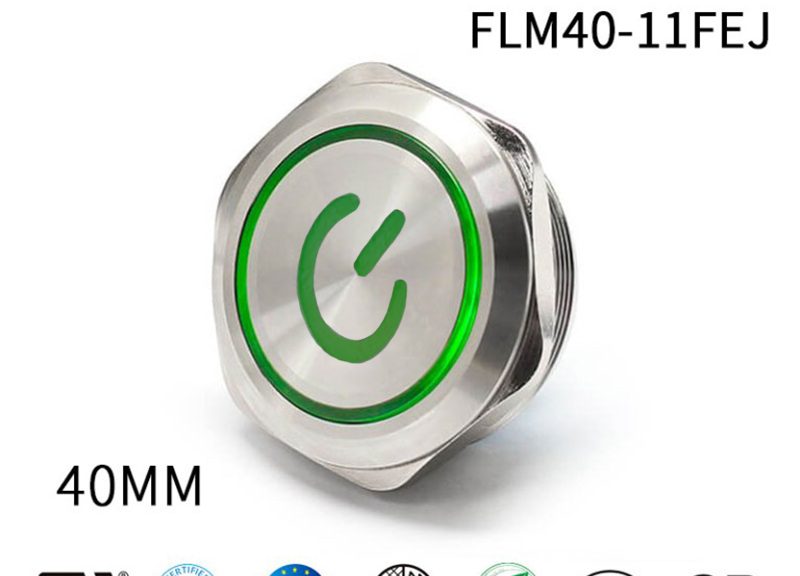

FILN 40MM China Push Button Switch

40MM China Push Button Switch Drawing:

Manufactured in China push button switch Drawings

 Push Button Switch  New products

40MM China Push Button Switch Product Specifications:

Production Series FLM40-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

40MM China Push Button Switch Related Products：

How to connect more types of pushbutton switches?

FILN 40MM Large Momentary Push Button Switch

40MM Large Momentary Push Button Switch Drawing:

Oversized momentary button switch Drawings

 Push Button Switch  New products

40MM Large Momentary Push Button Switch Product Specifications:

Production Series FLM40-11HEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

40MM Large Momentary Push Button Switch Related Products：

How to connect more types of pushbutton switches?

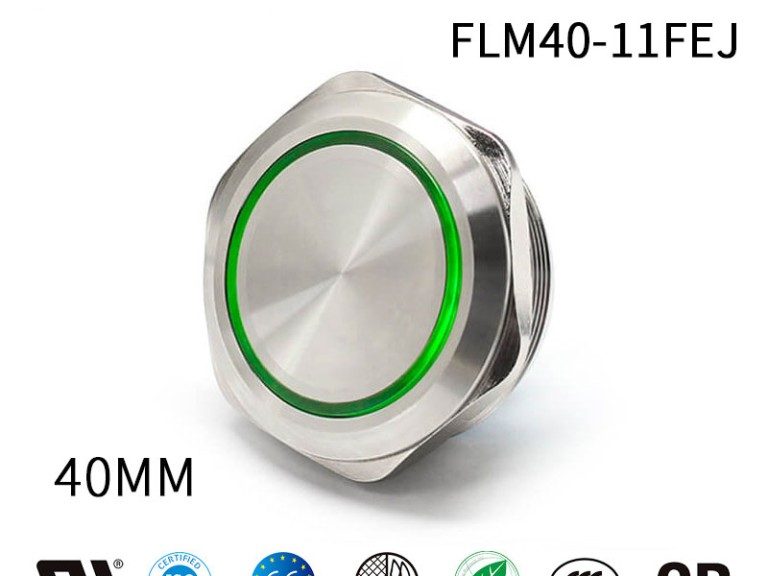

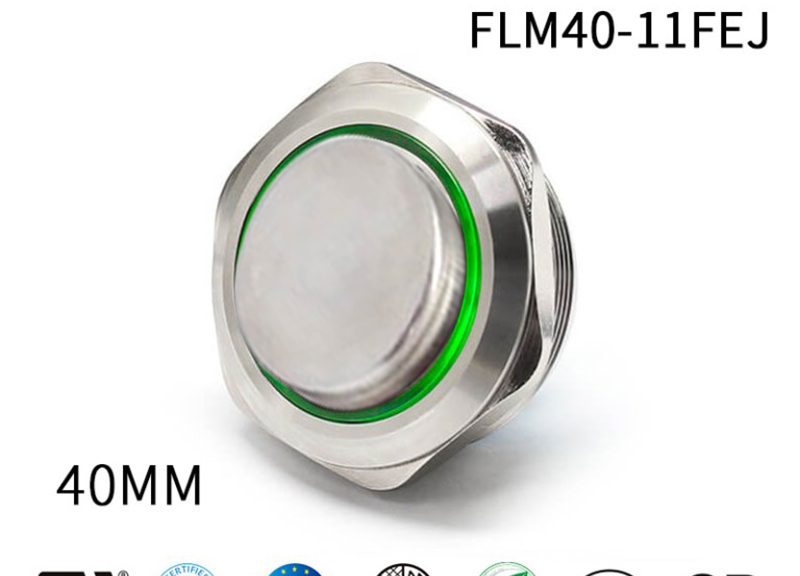

FILN 40MM Large Push Button Switch

40MM Large Push Button Switch Drawing:

Oversized button switch Drawings

 Push Button Switch  New products

40MM Large Push Button Switch Product Specifications:

Production Series FLM40-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

40MM Large Push Button Switch Related Products：

How to connect more types of pushbutton switches?

FILN 40MM Push Button on/off Switch 240V

40MM Push Button on/off Switch 240V Drawing:

Push button switch with 240V rating Drawings

 Push Button Switch  New products

40MM Push Button on/off Switch 240V Product Specifications:

Production Series FLM40-11HEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

40MM Push Button on/off Switch 240V Related Products：

How to connect more types of pushbutton switches?

40MM 8PIN Big Push Button Switch Metal/Plastic For Customized Production

40MM Big Push Button switch Drawing:

Big Push Button switch Drawings

 Push Button Switch  New products

40MM Big Push Button switch Product Specifications:

Production Series FLM40-11FEJ Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK08 Nut H59 nickel plated brass
Rated Voltage 250V Housing PA66+GF20% nylon
Rated Current 5A Light Source LED
Rated Power 1250W Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12

40MM Big Push Button switch Related Products：

How to connect more types of pushbutton switches?
