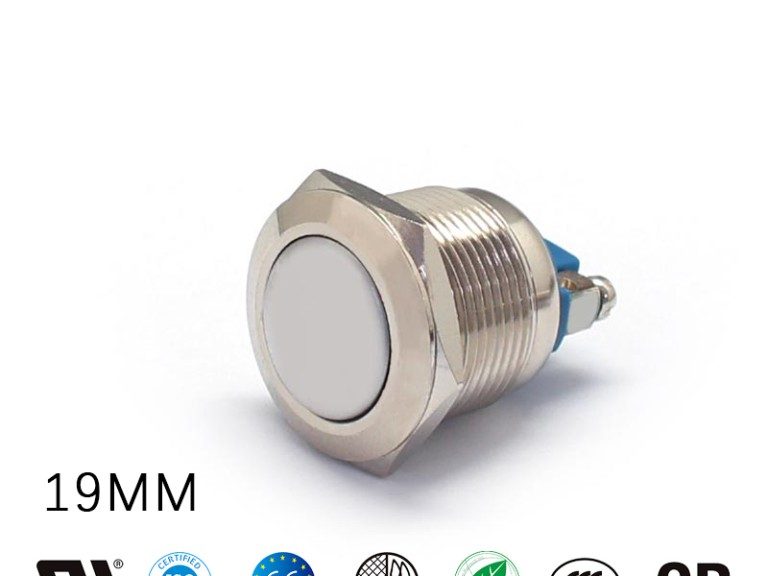

Power Switch Push Button Product Drawings:

Power Switch Push Button Product Specifications:

Power Switch Push Button Related Products：

19MM Metal Buzzer Switch Product Drawings:

19MM Metal Buzzer Switch Product Specifications:

19MM Metal Buzzer Switch Related Products：

Latching Push Button Switch Product Drawings:

Latching Button Switch Product Information:

Latching Push Button Switch: A Safe, Convenient Way to Toggle Devices

A latching button switch, also known as a toggle switch, is a type of electrical switch that maintains its position (either ON or OFF) once it has been toggled or pressed. Unlike momentary switches, which return to their default position when released, latching switches stay in the position they were last set to until manually toggled again. These switches are commonly used in a variety of applications, including lighting controls, power equipment, and electronic devices where you want a stable and consistent state without the need for continuous pressure on the button.

 What is a Latching Push Button Switch?

Latching Push Button Switch, also known as an ON OFF PUSH BUTTON SWITCH, is a specially designed electrical switch. Press it once, and it locks into position and completes the electrical circuit. Press it again, and it unlocks and breaks the circuit.

 How Does the Latching Push Button Work?

When you lightly press the 12v latching push button switch with your finger, the switch contacts close, thereby electrifying and activating the corresponding machine or device. Pressing it again breaks the contact, stopping the machine or device.

Latching push button switches are widely used in various mechanical equipment, electronic products, and even household appliances. The design mainly aims to provide a simple, safe, and intuitive method of operation.

Latching Push Button Switch Product Specifications:

Interpretation of the Features of 19mm 12v Latching Push Button Switch

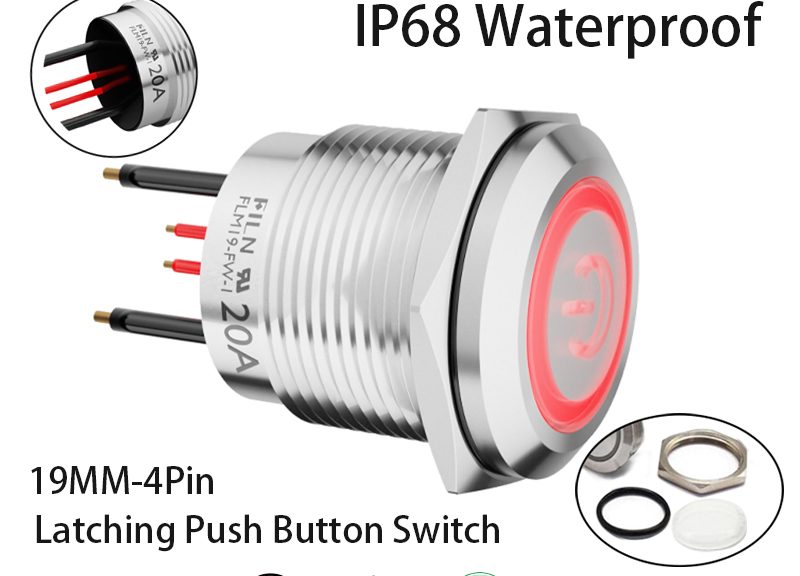

• 1. FILN’s New Waterproof Button Switch

In 2023, the FILN PUSH BUTTON SWITCH factory unveiled a distinctive waterproof IP68  high current 20A button switch. This is the world’s first mechanical PUSH button switch that truly achieves the IP68 waterproof level.The function of this button switch is very unique, not only high quality, use feel is also good.

• 2. LATCHING PUSH BUTTON SWITCH Superior Dust And Water Resistance

A notable feature of this switch is its exceptional dust and water resistance. In many workplaces, especially where dust is prevalent, dust accumulates over time and seeps into the switch through the button’s gaps, leading to switch damage. This IP68 waterproof button switch is designed with a dedicated dust cover, ensuring that dust cannot enter, while also guaranteeing the button’s waterproof effect.

• 3. IP68 PUSH BUTTON SWITCH Suitable For Various Environments

This 19MM LATCHING PUSH BUTTON SWITCH is ideal for use in dusty environments, such as kitchen equipment or angle grinders. When cutting iron or copper, angle grinders produce a significant amount of dust, but this switch can be used with confidence.Because of its dust and water performance can help the device in difficult and complex scenarios.

• 4. 20A Latching Push Button Switch Adapts to Different Current Demands

The latching push button switch can adapt to various currents, whether it’s DC 12V or AC 120V. It is often referred to as the 12V LATCHING PUSH BUTTON SWITCH or the 120V LATCHING PUSH BUTTON SWITCH. Additionally, this button can directly handle loads up to 3000W, providing users with immense convenience.

• 5. FILN BUTTON SWTICH  Diverse Product Options

The FILN LATCHING PUSH BUTTON SWTICH  factory not only offers the 19MM LATCHING PUSH BUTTON SWITCH but also manufactures non-locking buttons, also known as reset button switches. Moreover, FILN provides a variety of color options to cater to different customer needs.

Customers can freely choose the button head and button case light color according to the scene needs.

• 6. 19MM 12V Latching Push Button Switch

19mm 12v latching push button switch, with its outstanding dust and water resistance and powerful current carrying capacity, has become a sought-after product in the market.

The FILN PUSH BUTTON SWITCH factory provides high-quality and diverse choices, ensuring all demands are met.

19mm 12v Latching Push Button Switch Application Environment

The 19mm lock-button switch is widely used in a variety of environments, including but not limited to the following:

1. Industrial control: In factories and manufacturing facilities, the 19mm lock-push button switch is often used to control the operation of machines and equipment. They provide a tight, reliable switching mechanism able to withstand harsh environmental conditions such as temperature, humidity, dust, and vibration.

2. Automobile manufacturing: In the automobile manufacturing industry, the 19mm lock button switch is used to control various on-board equipment, such as air conditioning, sound, lighting, etc. Due to its waterproof and dustproof design, it can work normally even under harsh driving conditions.

3. Medical devices: In medical equipment, the 19mm lock button switch is usually used to control important medical functions, such as ventilator, infusion pump, electrocardiogram machine, etc. They are designed to ensure high reliability and durability, while being easy to clean and disinfect.

4. Aerospace: In the manufacture of aircraft and spacecraft, the 19mm lock button switch is used in safe operation in various emergency situations. For example, during an emergency landing, the lock button switch can control the opening and closing of the emergency exit.

5. Building facilities: In the building, the 19mm lock button switch is used to control all kinds of facilities, such as elevator, air conditioning system, lighting system, etc. They are designed to resist extreme temperature and humidity, while providing good touch and operational performance.

In either application environment, the 19mm lock button switch is a key control component for many devices and systems for its reliable performance, compact design and easy to use features.

Customized Introduction to LATCHING PUSH BUTTON SWITCH

The FILN BUTTON factory is dedicated to offering personalized customization for LATCHING button switches as well as reset switches. Regardless of your needs, we have the capability to provide you with a satisfactory solution. Here are some features of our customization services:

1.No Minimum Quantity Limit WITH latching push button switch

For the FILN factory, customer needs always come first. Therefore, regardless of the number of switches you require, even if it’s just one illuminated latching push button switch, we will cater to your need. No quantity is too small or too big.We will also provide a variety of different shapes and sizes of switches, do not worry about our button products have limitations, can be generous to your needs, we will try to give you a comfortable selection experience, the needs of our customers are the way forward.

2.Variety of Voltage Options

FILN latching push button switch  factory possesses the technical capability and expertise to customize switches with various voltage requirements. You can opt for a 12v latching switch or a higher voltage 120V LATCHING BUTTON SWITCH. Just communicate your needs, and we can fulfill them.

Different button needs different voltage requirements, which has a great impact on the application environment and use efficiency of the button, product life, and so on, and we can provide different voltage button switch, to maximize the use of the button and the use of the experience, you are welcome to request.

3.Personalized Button Switch Designs

To give your product a distinctive edge, we also provide design customization for button switches. You can create exclusive designs for the switch based on your brand image or specific application requirements, and we’ll ensure it’s precisely manufactured.Our company provides a variety of patterns and symbols to use custom switch head services to meet customer demand for personalized button products. If you need a specific symbol, logo, or other unique design element, please contact us. The advantage of multi-functional customization is that you can enhance the beauty of your product design and brand awareness, enhance brand competitiveness. In cooperation with FILN, we gain a competitive advantage by obtaining unique custom switches that meet high functional and durability standards.

In conclusion, the FILN BUTTON factory always upholds the principle of putting customers first, offering professional, efficient, and personalized LATCHING PUSH BUTTON SWITCH customization services to clients globally. Whatever your needs, we are confident in providing the best solutions.

FILN Latching Push Button Switch Price And FILN Push Button Switch  Introduced

FILN PUSH BUTTON SWITCH is a leading PUSH button switch factory in China, specializing in the design, development, and customized production of button switches. As a pioneer in button technology innovation domestically, we provide exceptional products and services to our customers through outstanding designs and superior craftsmanship. Since its establishment, FILN BUTTON SWITCH FACTORY has offered 15 years of premium service to global clients, winning the trust and collaboration of renowned brands such as McDonald’s, KFC, Starbucks, and Dr. Electric.

In addition to delivering top-notch products, our pricing is highly competitive. Compared to well-known brands like APEM and EAO, the cost of FILN PUSH BUTTON SWITCH is much more affordable, with a significantly shortened production cycle, ensuring that clients receive satisfactory products in a timely manner. This is why we stand out among numerous suppliers and become the preferred choice for many companies both at home and abroad.

We understand that a high-quality product is not just about functionality and durability, but more importantly, the user experience it provides. Thus, we persist in using the finest materials and the most advanced production techniques to ensure that every button switch produced by FILN meets our clients’ expectations and brings peace of mind.

Simultaneously, our service team always upholds a “customer-first” service philosophy. No matter what questions or needs you might have, we are committed to serving you wholeheartedly, ensuring every purchase you make is a delightful experience.

In conclusion, choosing FILN PUSH BUTTON SWITCH is not just about selecting a high-quality button switch but also opting for a trustworthy partner. Whether you are a returning customer or a new one, we warmly welcome your inquiries and collaboration, looking forward to building a bright future together.

How To Wire The Latching Push Button Switch？

What’s the first way for the button connection ？

1.The positive pole of the power supply is connected to the switch C pin red wire and the LED lamp pin red wire (+) , and the other NO pin black wire is connected to the positive pole of the bulb device.

2. Connect the negative pole of the power supply to the negative pole of the bulb deviceand the LED lamp pin black wire(-).

Latching push button switch function:

The Latching push button switch is locked and the bulb device starts.

The Latching push button switch is reset, the bulb device is turned off and the light is always on.

What’s the second way for the button connection ？

1.The positive pole of the power supply is connected to the C pin red wire of the switch,and the other NO pin black wire is connected to the LED light pin red wire (+) and the positive pole of the bulb device.

2. Connect the negative pole ofthe powersupply to the negative pole of the bulb device and the LED lamp pin black wire (-).

Latching push button switch function:

The Latching push button switch is locked and the light is on, and the bulb device starts.

The Latching push button switch reset light is off, and the bulb device is turned off.

FILN Company Presents a Special Video Explanation of the 19MM Latching push button switch

Introduction
To help customers gain a deeper understanding of the 19MM Latching push button switch , FILN Company has carefully crafted a wiring video. This video not only presents various product details but also demonstrates the correct wiring methods.

Overview of Video Content
The video comprehensively covers all major aspects of the 19MM Latching push button switch , including wiring methods, product specifications, and a step-by-step setup process. Each step is showcased with specialized demonstrations, ensuring quick mastery.

Why Watch This Video
Highly Practical: The video shows actual operations, reducing the chances of making errors during wiring.

Accurate Information: All experimental data and steps have been verified by FILN’s independent laboratories, ensuring the accuracy of the information.

Conclusion
This 19MM Latching Push Button Switch video by FILN Company is an invaluable learning resource you shouldn’t miss. It will not only help you understand the product’s details but also ensure you’re more confident during the wiring process. Watch it now to let FILN guide you towards more efficient and safer operations!

Why Choose a Latching Push Button Switch?

The primary reason for choosing latching push button switches is their safety and convenience. Because the contacts automatically lock or unlock upon pressing, users do not need to continuously hold down the switch to maintain the operation or cessation of the device.

Overall, 19mm latching push button switch is an extremely practical and safe option for electrical switches. Whether in industrial production or daily life, it offers a quick, simple, and efficient way to operate.

Latching Push Button Switch Related Products：

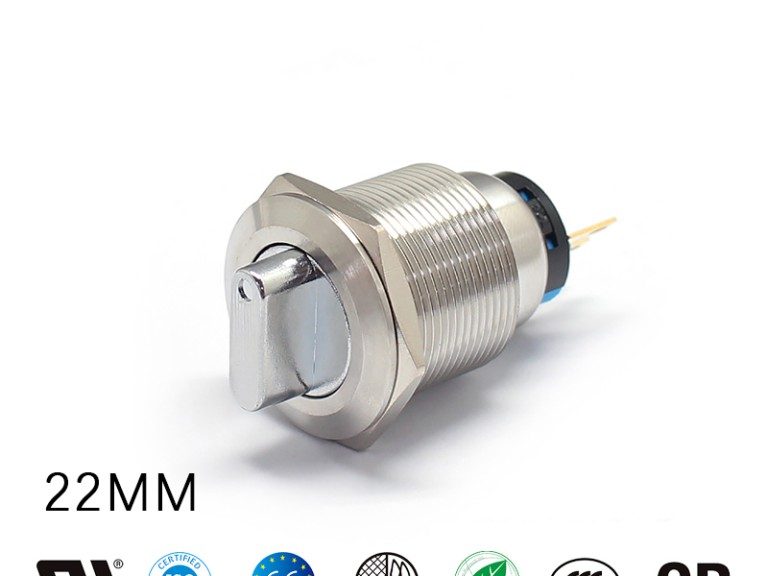

22MM Rotary Switch With Push Button Product Drawings:

22MM Rotary Switch With Push Button Product Specifications:

22MM Rotary Switch With Push Button Related Products：

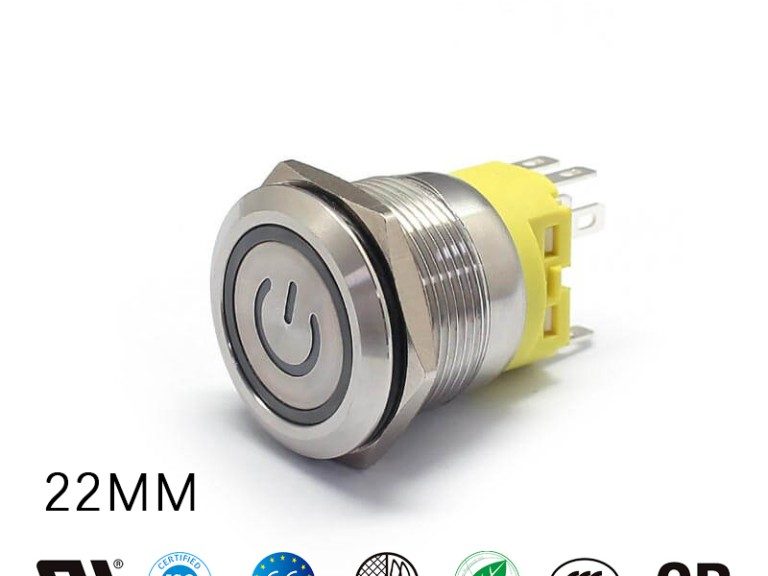

22MM Momentary Push Button Switch Product Drawings:

22MM Momentary Push Button Switch Product Specifications:

22MM Momentary Push Button Switch Related Products：

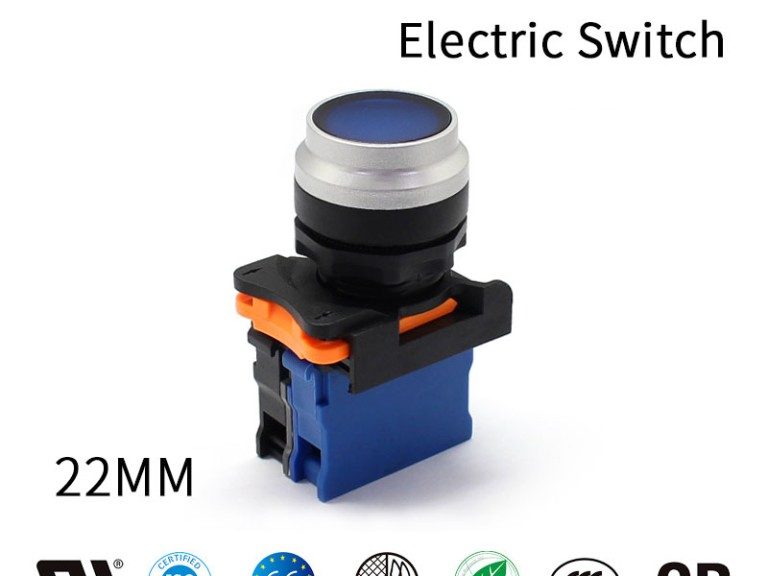

22MM Latching Push Button Electric Switch Product Drawings:

22MM Latching Push Button Product Information:

A led push button switch, also known as a toggle switch, is a type of electrical switch that maintains its position (either ON or OFF) once it has been toggled or pressed. Unlike momentary switches, which return to their default position when released, led push button switch stay in the position they were last set to until manually toggled again. These switches are commonly used in a variety of applications, including lighting controls, power equipment, and electronic devices where you want a stable and consistent state without the need for continuous pressure on the button.

22MM Latching Push Button Product Specifications:

22MM Latching Push Button Related Products：

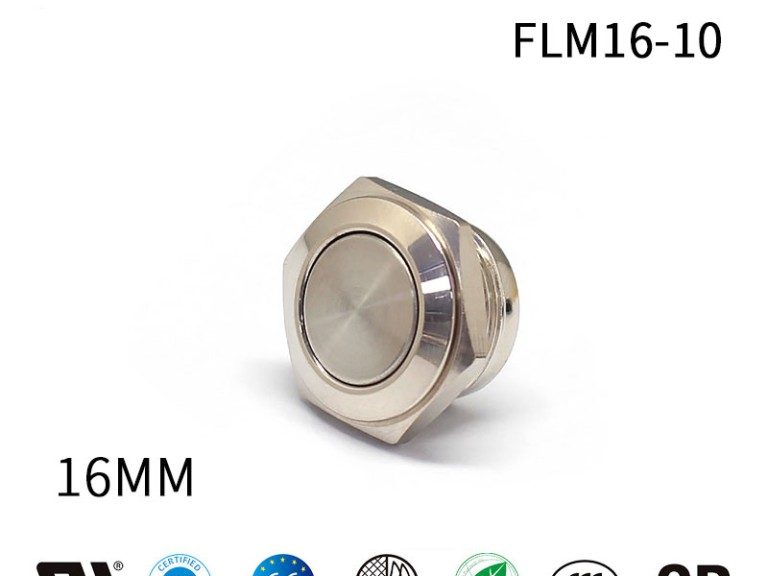

16MM Metal Button Product Drawings

16MM Metal Button With LED Parameters

The Description of The 16MM Metal Push Button Switch.

1.The mounting hole size of the product is 16mm, you just need to open the hole of 16.2mm on the push-button panel. Then place the 16mm push button switch in the push-button hole, place the waterproof ring on the back of the push-button panel, then tighten the screw cap, so it can play a surface waterproof effect.

2.The head shape of the product is flat head, it also has high flat head, and the head of push-button switch can be customized a variety of different patterns and symbols.

3.The product can achieve a variety of voltages, such as 3V, 5V, 6V, 12V, 24V, 120V, 110V, 220V, 230V, 250V, 380V, etc. We can also customize a variety of different voltages as long as you need.

4.The product can achieve the monochrome lights in seven colors, including red, green, yellow, blue, white, orange and purple, as well as two-color buttons and three-color button switches.

5.Two-color push button switch has 6 pins, three-color push button switch has 7 pins, the light pin of the two-color and three-color push button switches have public pins. The common anode pin and common cathode pin, just as its name implies, the common anode pin is common negative pole, other colors are negative pole. On the contrary, the common cathode pin is common negative pole, other colors are positive pole.

The shell material of the product is divided into three types of stainless steel, copper, and zinc alloy.

• The stainless steel shell of the product has good corrosion resistance, which can be used in places where the environment is relatively harsh. Such as the seaside, kitchen equipment, electroplating factory and so on.
• The appearance of the copper product is atmosphere, which is suitable for indoor or automated equipment.

• The appearance of the product with zinc alloy can achieve a variety of colors, such as red and black.
• We can also electroplating various different colors according to your needs, aluminum black, the aluminum electrophoresis turns to black, it can also electrophoresised into other colors, such as red, green, blue, etc.
• The staining of the electrophoresis process is better than spray process, and the effect is better, not easy to fade and scratch.

• The service life of the red push button switch is 50,000 times, the mechanical life is 200,000 times, the current is up to 5A, so it can be used on the mechanical equipment which power is below 1000W.
• The waterproof rating of the product is IP67, which can be used outdoors.

What is the structure of the red push button switch?

When the push-button switch is powered on, it will emit red LED light, that is to say that the push-button switch is carried with light.

What is the structure of the Stainless Steel Push Button?

• The 16mm red push button switch has 5 pins, there are switch pin C, NO pin, NC pin, positive pole pin of the light pin and negative pole pin of the light pin.
• The red push button switch is made of controller, housing, contacts, pins, the key of the red push button switch can be divided into ordinary press button type, mushroom head type, rotary handle type, with indicator light type and with light symbol, etc.
• The red push button switch has two types functions of self-lock and self-reset.
• The 12V red push button switch is divided into two combining forms of single-button, double-button.

• The momentary red push button switch generally adopts combined structure, it is made of switch cap, reset spring, static contact, dynamic contact, and housing, etc. It generally adopts component microdynamics, which has a pair of 1NO 1NC contacts, some products can increase contact quantity through multiple micromotions, such as 2NO 2NC.

What are the functions of the 16mm Brass Push Button Switch?

Firstly, the red push button switch has the functions of self-reset and self-lock.The push button switch with self-reset function or self-lock function is determined by having a lock hook or not.Besides, distinguish the NC and NO function of the red push button switch.

When the push-button switch is not pressed, the dynamic contact and the static contact above are connected, this pair of contacts are called normally closed contacts. At the same time, the dynamic contact and the static contact below are disconnected, this pair of contacts are called normally open contacts.

When pressed down the push button switch, normally closed contact is disconnected while the normally open contact is closed. When release the red push button switch, it restore to the original operating state with the reset spring.

How does the 16mm Metal Momentary Switch？

The rated power of the red push button switch is 5A 250V, so the products whose power are below 5A 250V can use our switch. In general, the momentary push button switch is applied in the applications of balers, coffee makers, grinder, switch of the door, bell switches, service bell buttons and other fields.

How to Wire a Metal Push Button Switch?

When the 16mm red push button switch is locked, light of the push-button switch is off, and the device starts. When the 12V red push button switch is reset, the push-button’s light is on and the device is closed. You can choose below wiring way.

Connect the power’s positive pole of the device to the push-button switch’s public line C, the switch’s pin NO of the 16mm push-button switch is connected to the positive pole of the device. The normally closed pin of the push-button switch is connected to the LED’s light pin “ +”. The power’s negative pole of the device is connected to the device’s negative pole and LED’s light pin “-”

When the 12V red push button switch is locked, the device starts, or when the push-button switch is reset, the device is off. If you want the light of the push-button switch’s light normally open, please choose the below wiring way.

Connect the power’s positive pole of the device to the push-button switch’s public C and the light pin’s positive pole of the push-button switch, then connect the switch pin NO of the push-button switch and the positive pole of the device, connect the power’s negative pole of the device and the negative pole of the device and the switch’s LED light pin “-”

How to Buy The 16mm Metal Push Button Switch?

If your purchase quantity is relatively small, and need the fast delivery, you can place an order directly online at www.cnfiln.com, we will arrange the delivery on the same day.

If you want to customize the push-button switch, you can email us, we will give you a satisfactory solution within 24 hours.sales9@filn.com.cn

Filn will provide the samples free of charge.

The push-button switch, indicator light, and rocker switch of Filn had passed the certifications of UL, CE, TVU, ISO90001, which can ensure the products’ quality. It also has a professional testing laboratory and development team, who can provide customization services.

Except for the red push button switch, Filn also produces different sizes and types of push-button switches. In addition, We can customize push-button switch according to your requirements. If you have any questions about the push-button switch, please contact us immediately. Our email address is inquiry@cnylin.com.cn.
