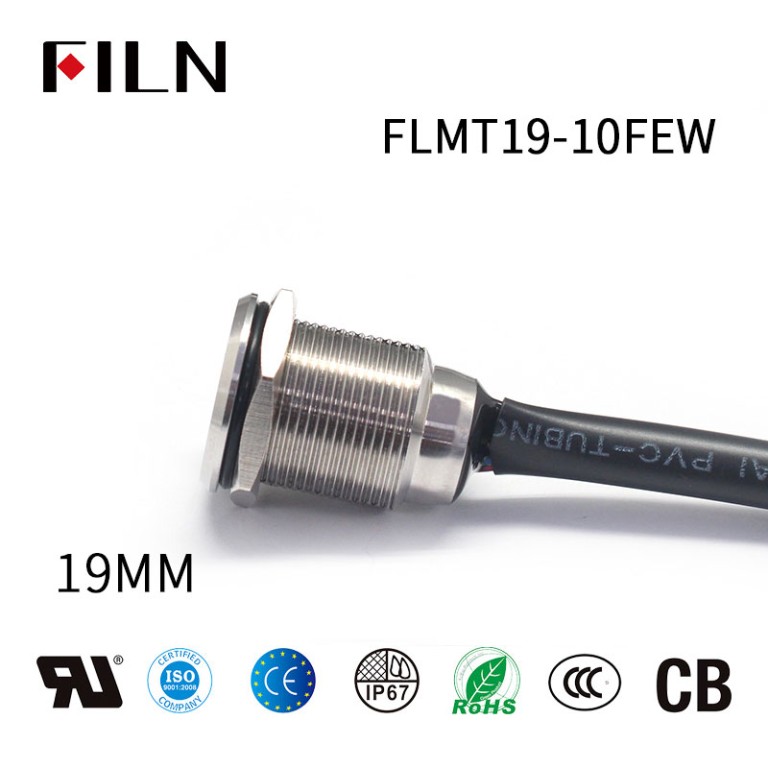

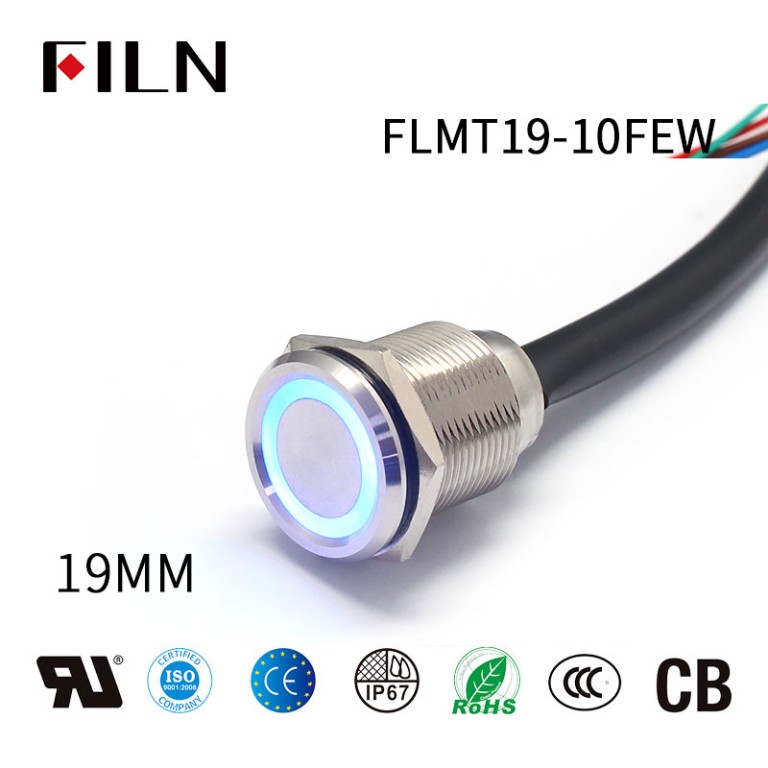

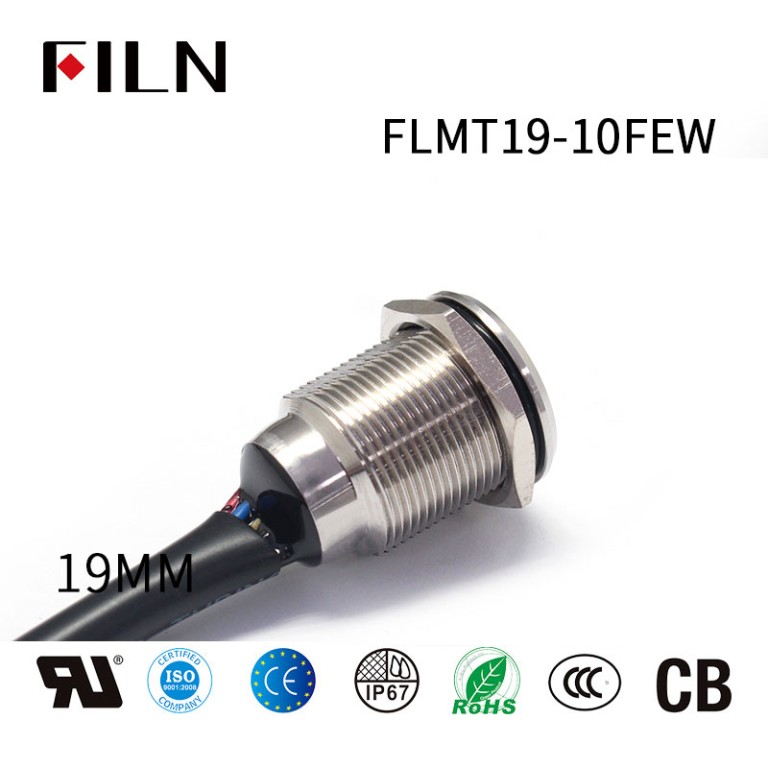

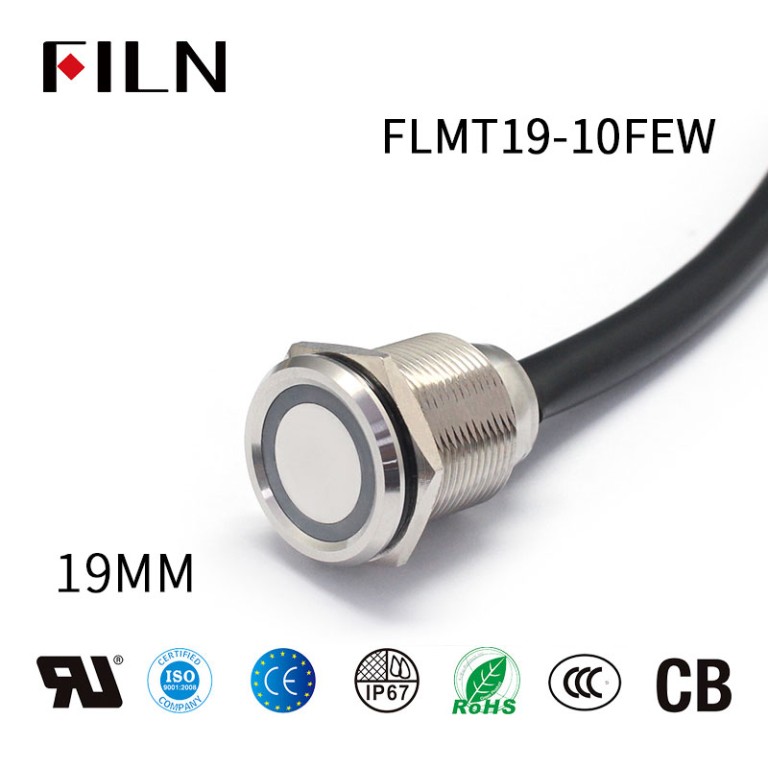

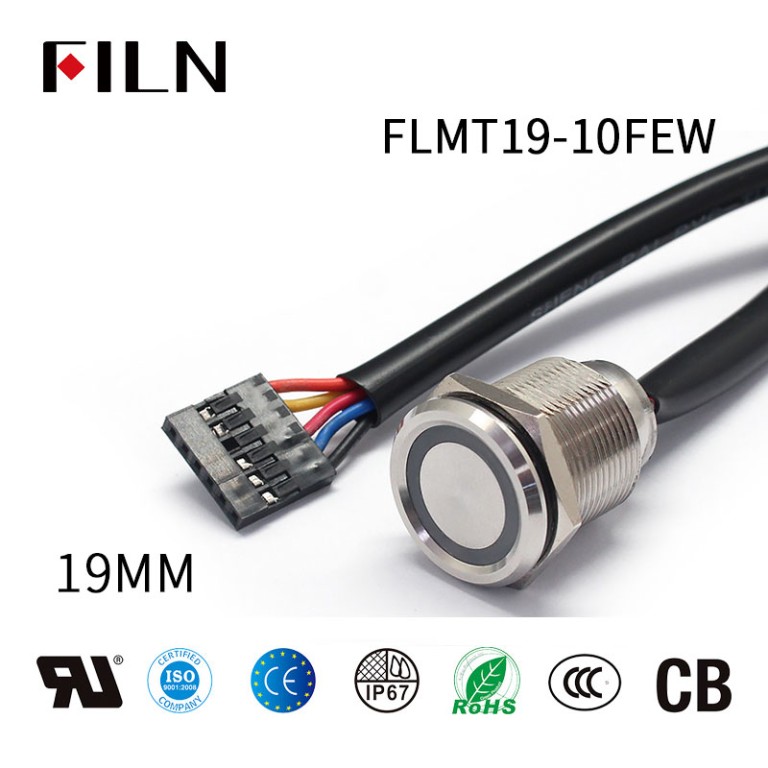

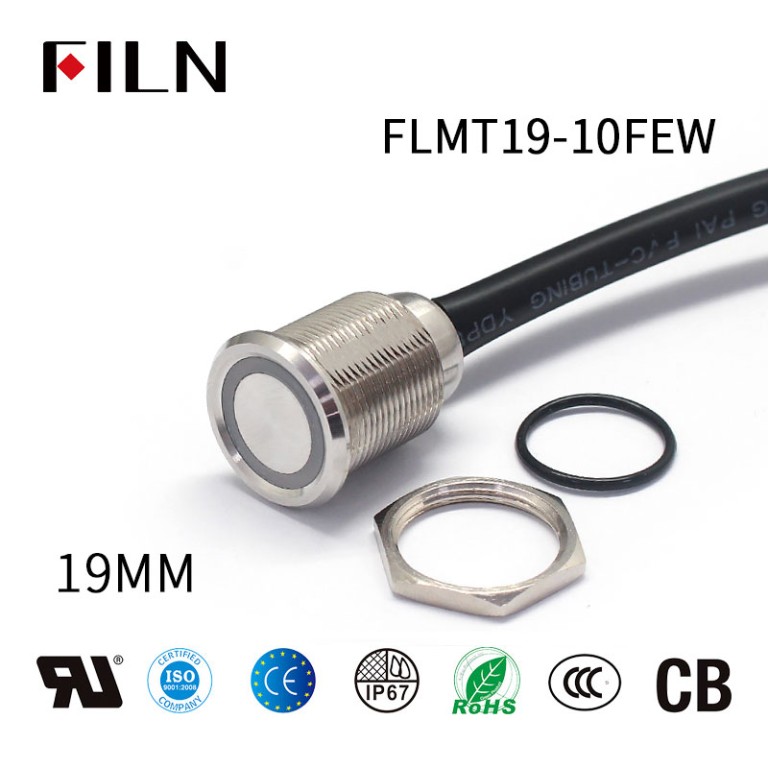

New 19mm Touch Button Switch With Wire Waterproof Metal Touch Push Button Switch
- Waterproof class: IP67 Button Switch
- Name:Touch Push Button Switch
- Model:FLMT19-10FEW
- Head Type:Flat Head
- Switching Functions: Momentary / Latching
- Contact Configuration:I NO 1NC
- Rated Voltage: 2A (DC)
- Voltage Options:25V
- Light Color: Red, Blue, Green, Yellow, White
- Materials: Copper, Stainless steel, Zinc alloy
- Download Certification:UL,CE,RoHS,CB,CCC
- Wire specification: AGW22
- Email:sales2@filn.com.cn
- Download PDF:19MM Touch Push Button Switch
19MM Touch Push Button Switch Product Specifications:
| Production Series | FLMT19-10FEW | Light Guide Button | PC plastic |
| Button Shape | round | Actuator | Zinc Alloy, Stainless Steel, Brass |
| Button LED Color | Red, Blue, Green, Yellow, White, Bicolor, tricolor | Housing Sleeve | Zinc Alloy, Stainless Steel, Brass |
| Mechanical Life | The 500 thousand time | Button Pin | H62 Copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP67 push button switch | Nut | H59 nickel plated brass |
| Rated Voltage | 12V（DC） 250（AC）switch | Housing | PA66+GF20% nylon |
| Rated Current | 20A（DC）20A（AC）button switch | Light Source | LED button switch |
| Rated Power | 12v 110v（DC）3000W（AC） | Resistor | Metal film |
| Operating Temperature | -40℃~+85℃ | Contact | AgCdO12 |
