FILN 16MM Metal Push Switch Button: High-Head, 2-Pin, No-Light Design FILN 16MM Metal Push Switch Button: High-Head, 2-Pin, No-Light Design FILN 16MM Metal Push Switch Button: High-Head, 2-Pin, No-Light Design FILN 16MM Metal Push Switch Button: High-Head, 2-Pin, No-Light Design FILN 16MM Metal Push Switch Button: High-Head, 2-Pin, No-Light Design FILN 16MM Metal Push Switch Button: High-Head, 2-Pin, No-Light Design

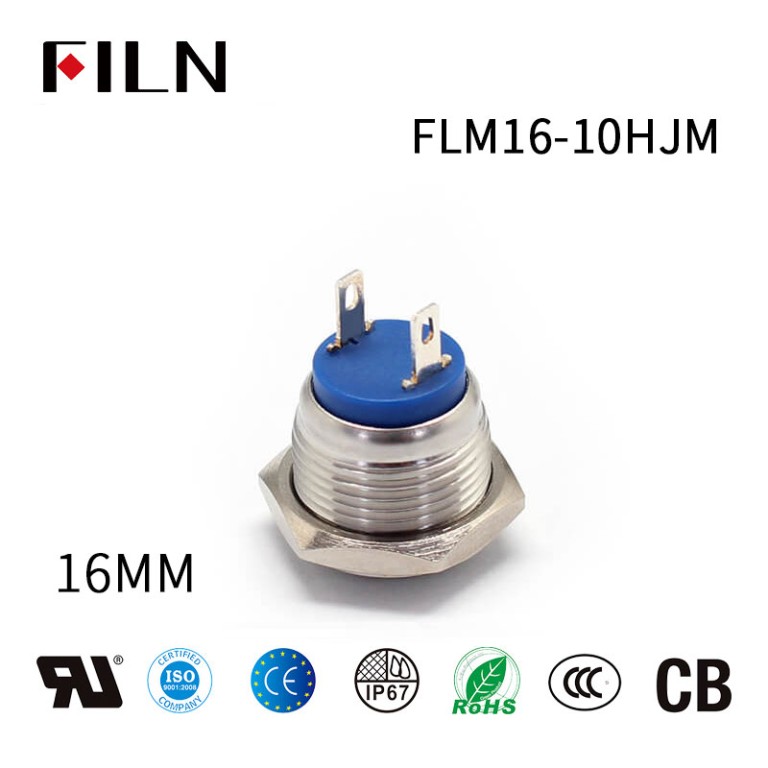

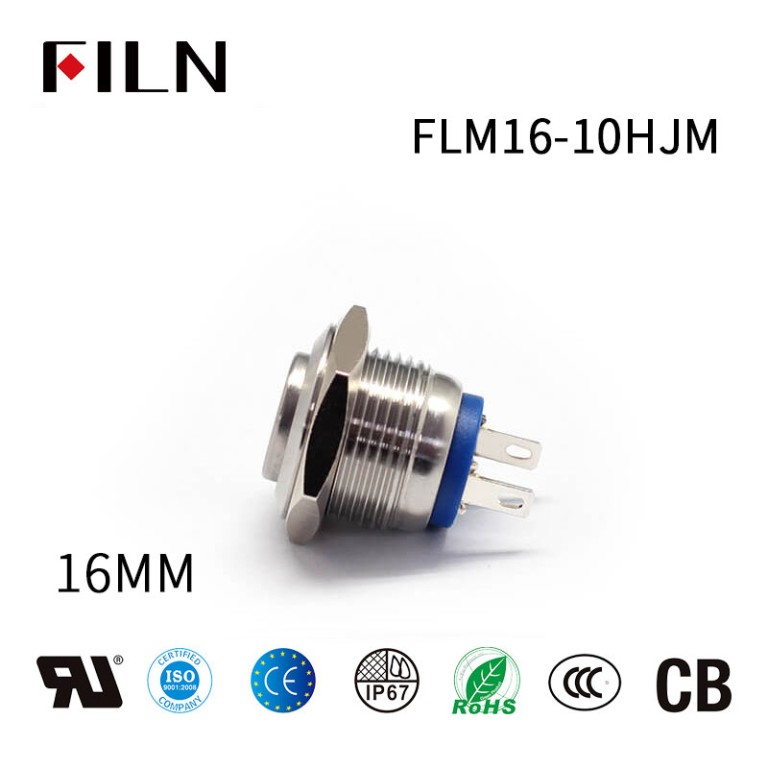

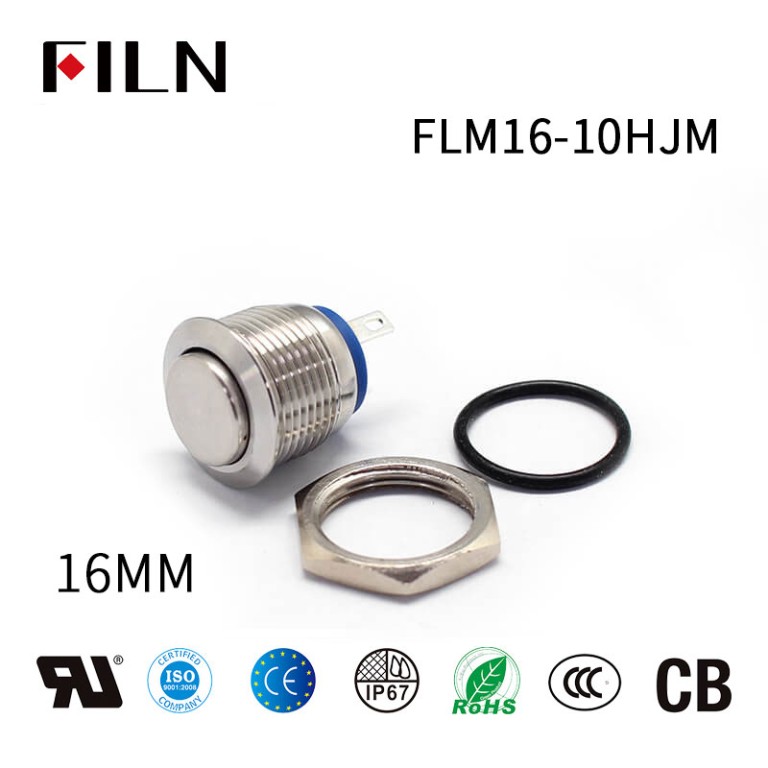

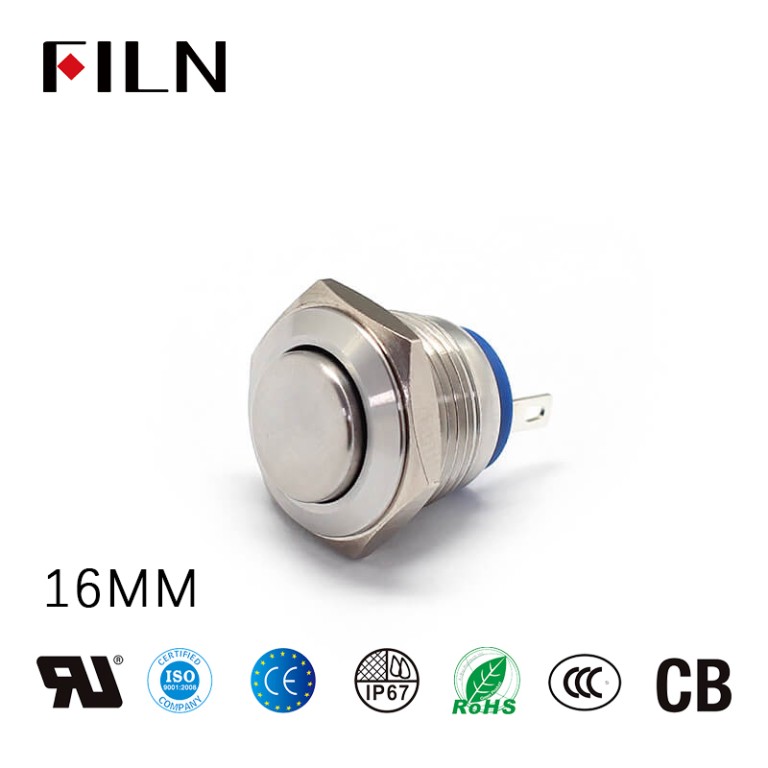

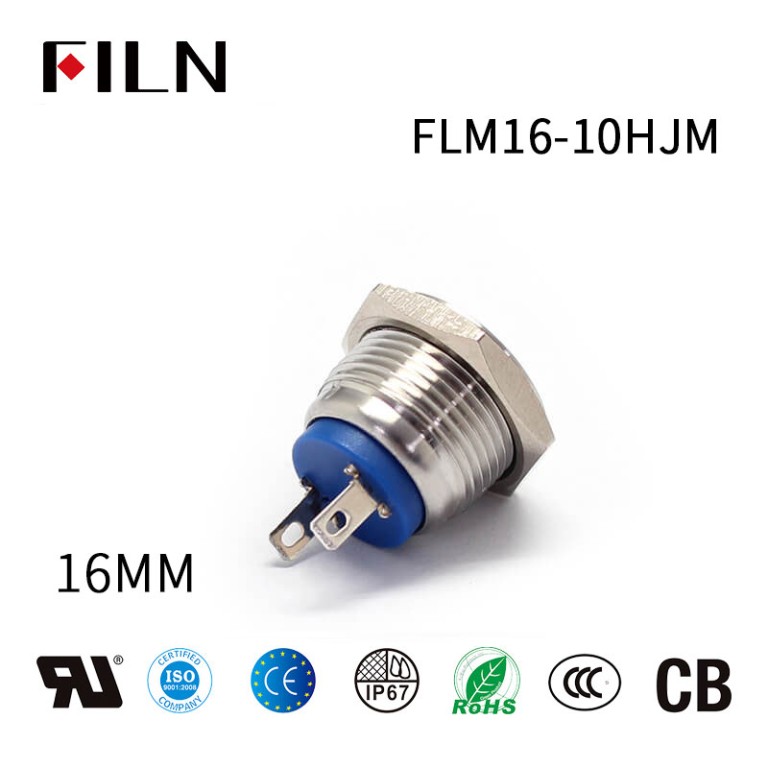

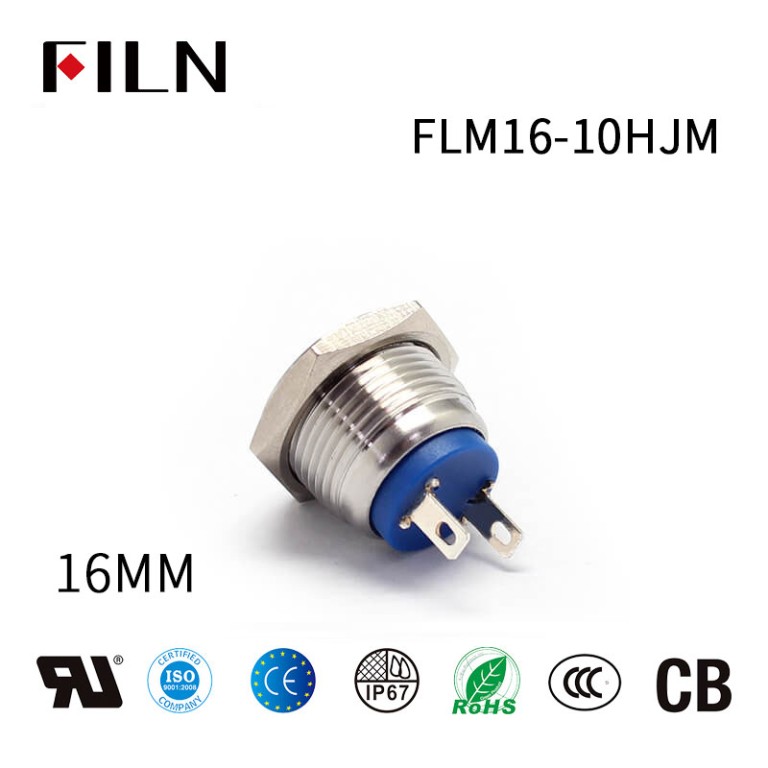

FILN 16MM Metal Push Switch Button: High-Head, 2-Pin, No-Light Design

  • Waterproof Class:IP67
  • Name:Push Switch Button
  • Model:FLM16-10HJM
  • Head Type: Flat Head
  • Mounting Size: 16MM / 0.63″
  • Switching Functions: Momentary / Latching  switch
  • Contact Configuration: I NO Push Button Switch
  • Voltage: 3V, 6V, 12V, 110V, 220V, 250V, 380V
  • Current: 10A
  • Light Color:Red, Blue, Green, Yellow, White
  • Materials:ABS plastic,Copper, Stainless steel, Zinc alloy
  • Download Certification:CE, CCC, ROSH, IP67, UL
  • Email:sales2@filn.com.cn
  • Download PDF:16MM Push Switch Button

Inquiry Now > Ask An Free Sample

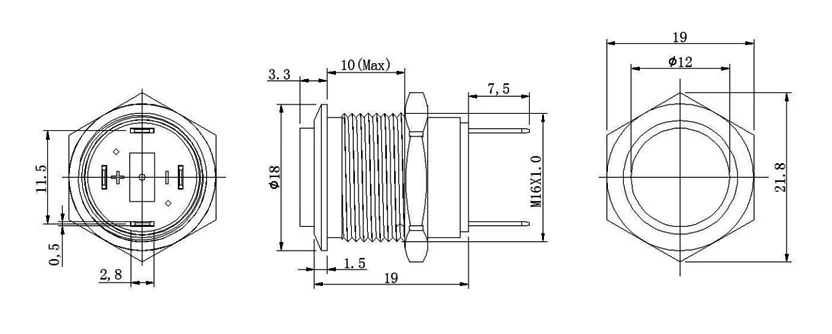

16MM Push Switch Button Product Drawings:

push switch button Drawings
 Push Button Switch  New products

16MM Push Switch Button Product Specifications:

Production Series FLM16-10HJM Light Guide Button PC plastic
Button Shape round Actuator 304 Stainless steel
Button LED Color Red blue green yellow white Housing Sleeve H59 nickel plated brass/304Stainless steel
Mechanical Life The 500 thousand time Button Pin H62 copper alloy
Electrical Life The 100 thousand time Rubber Ring SIL silica gel
Protection Level IP67 IK09 Nut H59 nickel plated brass
Rated Voltage 36V（DC） 250（AC） Housing PA66+GF20% nylon
Rated Current 3A（DC）3A（AC） Light Source LED
Rated Power 108W（DC）750W（AC） Resistor Metal film
Operating Temperature -25℃~+85℃ Contact AgCdO12
