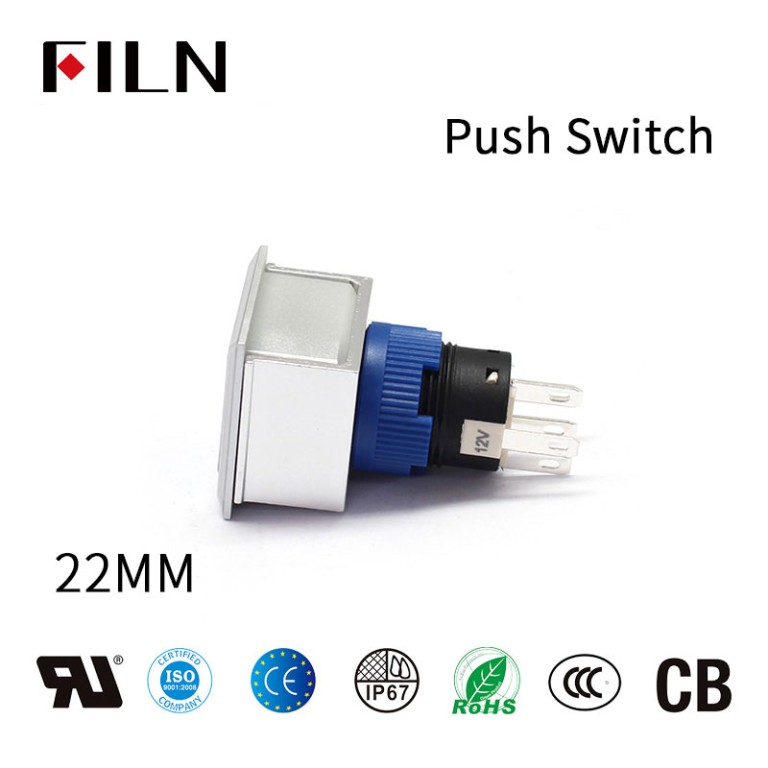

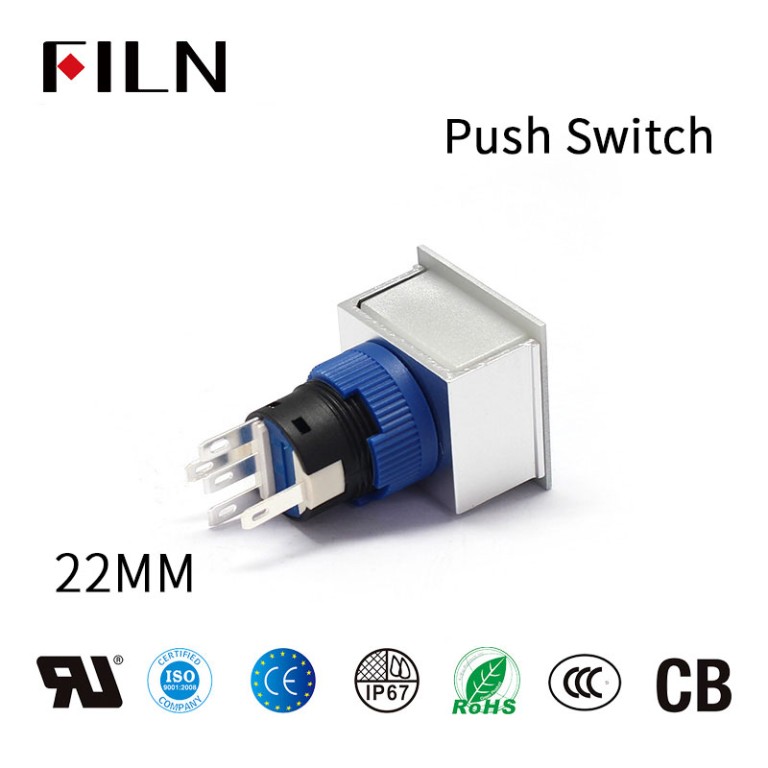

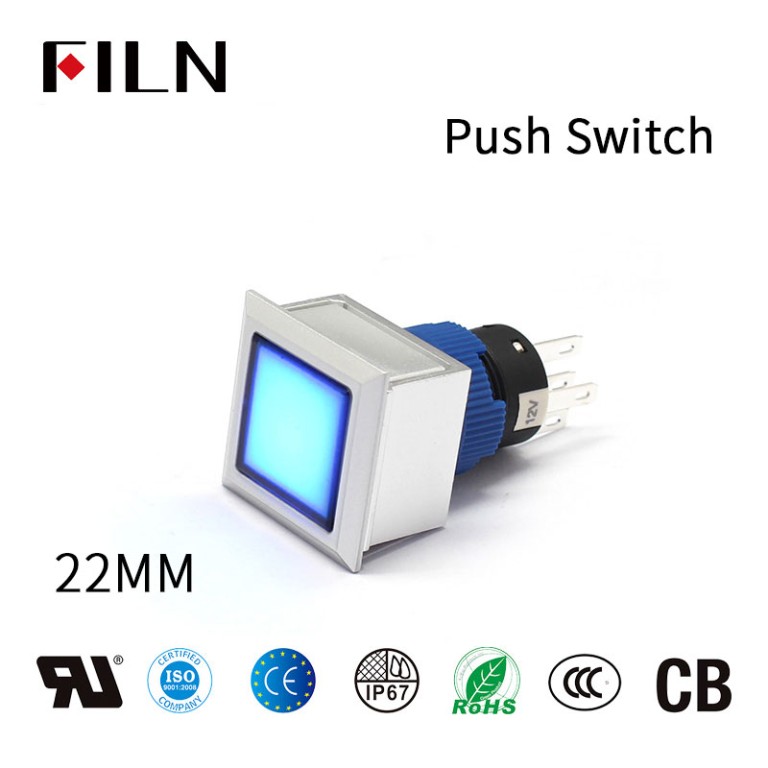

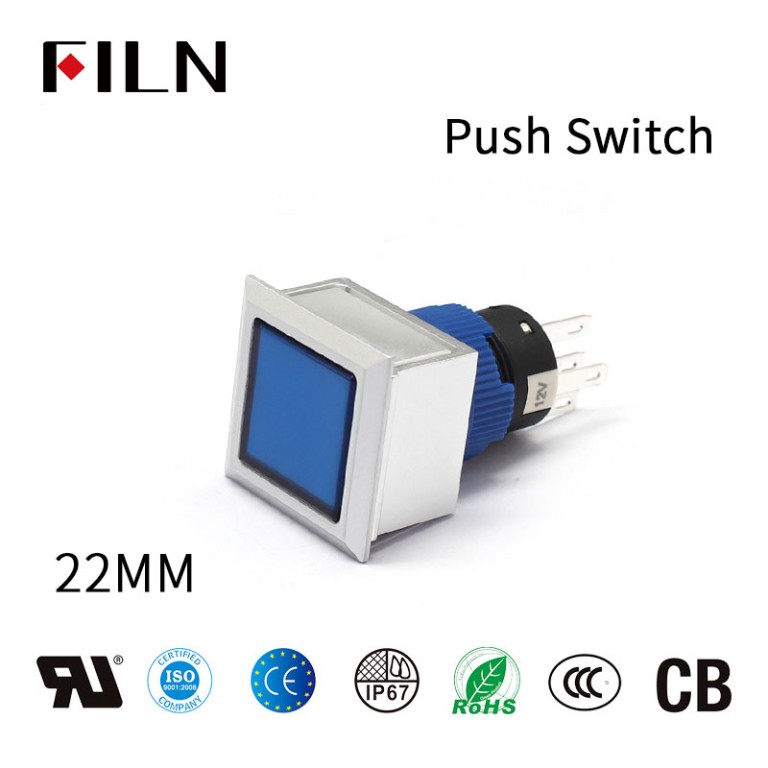

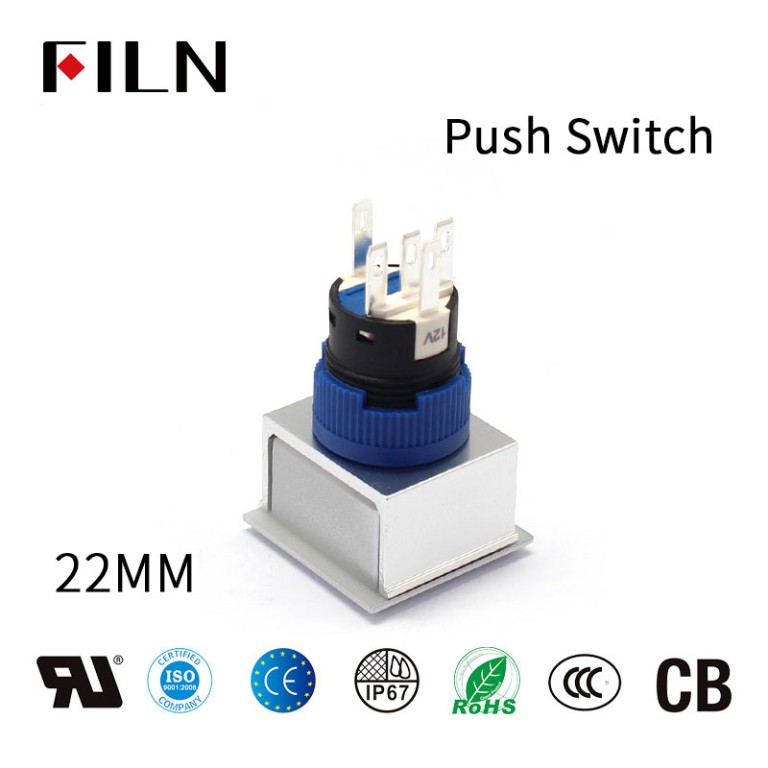

Push Button Lighting With 5P Terminal Pins LED Blue Momentary 12V 220V
- Name:Push Button Lighting
- Model:FLM22-11MJ
- Head Type: Flat Head
- Mounting Size: 22MM / 0.86″
- Switching Functions: Momentary
- Contact Configuration: 1NO
- Rated Voltage: 5A(DC) 5A(AC)
- Voltage Options:36V(DC) 250V(AC)
- Light Color: R G B Y W
- Material: ABS plastic, Copper, Stainless Steel
- Download Certification:CE, CCC, ROSH, IP67, UL
- Waterproof grade: IP67
- Wire specification: AGW22
- Email: sales2@filn.com.cn

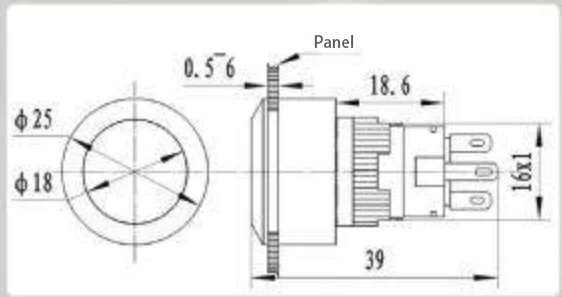

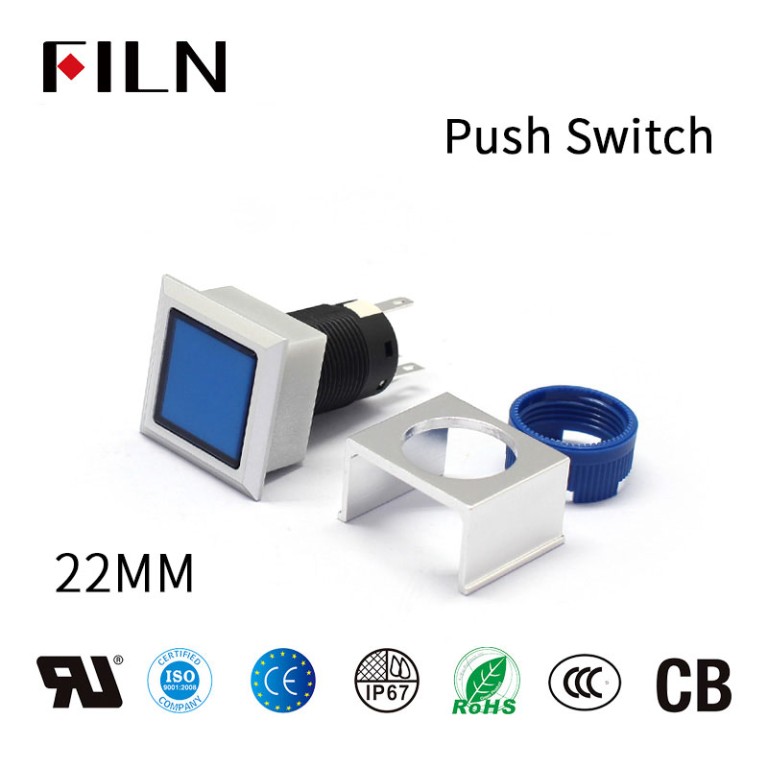

The 22MM push button switch is suitable for most equipment, you only need to make an opening between 22-23MM on the mounting panel, and use a nut to fix the pushbutton switch on the panel.
22MM Push Button Lighting Product Specifications:
| Production series | FLM22-11MJ | Light guide button | PC plastic |
| Button Shape | round | Sctuator | 304 Stainless steel |
| button LED Color | Red | Housing Sleeve | H59 nickel plated brass/304Stainless steel |
| Mechanical Life | The 500 thousand time | Button Pin | H62 copper alloy |
| Electrical Life | The 100 thousand time | Rubber Ring | SIL silica gel |
| Protection Level | IP67 IK09 | Nut | H59 nickel plated brass |
| Rated Voltage | 36V（DC） 250V（AC） | Housing | PA66+GF20% nylon |
| Rated Current | 1A（DC）0.5A（AC） | Light Source | LED |
| Rated Power | 36W（DC）125W（AC） | Resistor | Metal film |
| Operating Temperature | -25℃~+85℃ | Contact | AgCdO12 |
